Front Controls Interface Module (FCIM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to HEALTH AND SAFETY PRECAUTIONS . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Remove the instrument panel center middle trim panel.

    Refer to: INSTRUMENT PANEL CENTER MIDDLE TRIM PANEL .

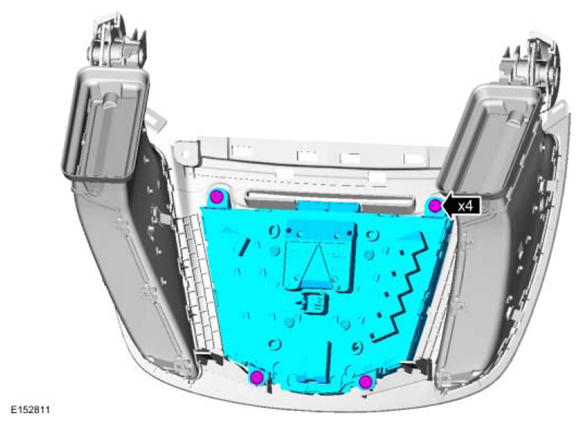

  3. Torque  : 1.5 Nm
    G08409084Courtesy of FORD MOTOR CO.
