Powertrain Control Module (PCM): Removal

All engines

  1. Wit the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. NOTE: PCM installation DOES NOT require new keys or programming of keys, only a Parameter Reset of the Passive Anti-Theft System (PATS).

    Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure. Refer to MODULE CONFIGURATION .

  3. Remove the LH fender splash shield. Refer to FRONT END BODY PANELS .

    1.6L GTDI, 2.0L GTDI engines

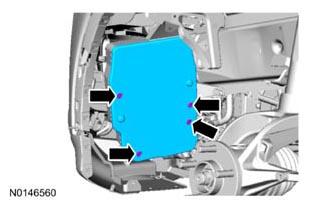

  4. G08614005

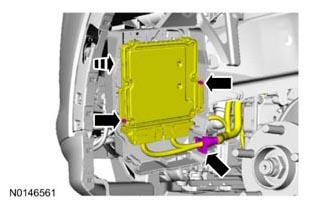

  5. G08614006
  6. G08614007

    2.5L engine

  7. G08614008

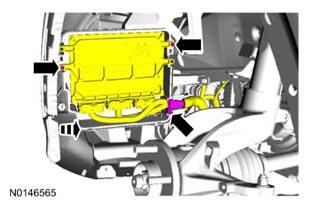

  8. G08614009
  9. G08614010
