Accelerator Pedal

NOTE: Removal steps in this procedure may contain installation steps.
NOTE: To prevent setting Diagnostic Trouble Codes DTC make sure the ignition is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

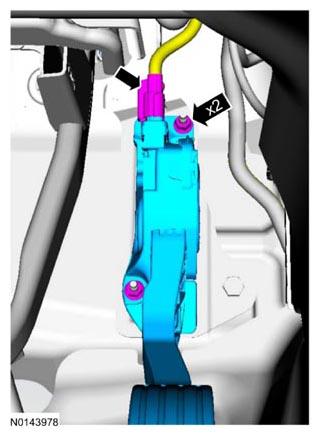

  1. Tighten to 8 Nm (71 lb-In).
    G08620178
  2. To install, reverse the removal procedure.
