Automatic Transmission External Controls - Select Switch
>>
General Procedures
>>
Selector Lever Boot
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

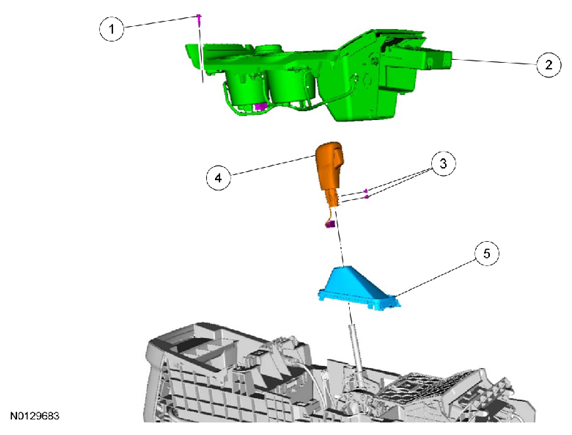

Exploded View
Item
Service Part Number
Description
1
W707628
Selector lever trim panel screw
2
7D443
Upper finish panel
3
W790167
Selector lever knob screw (2 required)
4
7213
Selector lever knob
5
7277
Selector lever boot
