General Procedure

  1. NOTE: If it is necessary to use the override procedure to move the selector lever out of the PARK position, it is possible that an electrical failure has occurred. Using the scan tool check for DTSs  .

    This vehicle is equipped with a brake shift interlock feature that prevents the selector lever from being moved out of PARK when the ignition is in the ON position until the brake pedal is applied.

    If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is applied:

    Apply the parking brake.

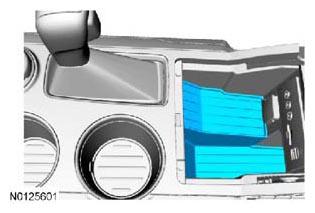

  2. Open the forward storage compartment and remove the rubber protective cover.
    G07430618

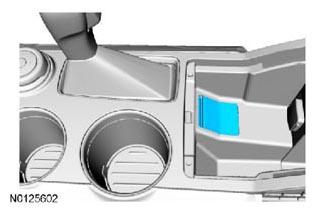

  3. Carefully remove the BSIA  access cover.
    G07430619
  4. NOTE: Storage bin has been removed for clarity.

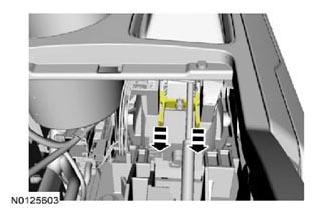

    From the front of the selector lever, locate the BSIA  , apply the brake, pull and hold the BSIA  lever while moving the selector lever into NEUTRAL.

    G07430620
  5. Install the BSIA  access cover.
    G07430619
  6. Install the rubber protective cover and close the forward storage compartment.
    G07430618
  7. Press the brake pedal, start the vehicle and release the parking brake.
