Bumper - Rear: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

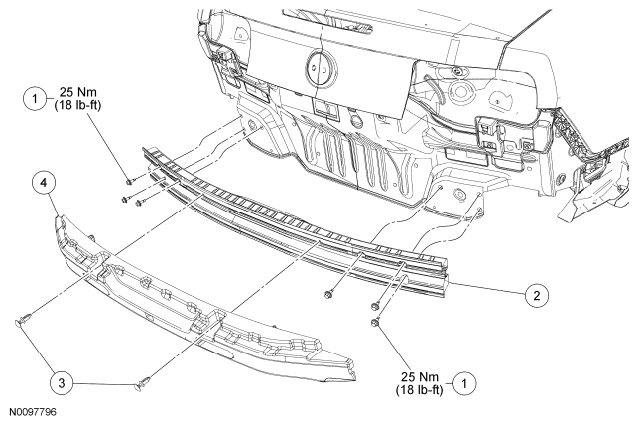

| Item |
Part Number |
Description |
| 1 |
W711097 |
Rear bumper bolts (6 required) |
| 2 |
17775 |
Rear bumper |
| 3 |
403D24 |
Rear bumper isolator pin-type retainers |
| 4 |
17E899 |
Rear bumper isolator |
