Repair procedures: Installation
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
- Installation is the reverse of removal.NOTE: After replacement or reinstallation procedure of the valve body assembly, must perform procedures below.
- Adding Automatic Transaxle Fluid (ATF).
(Refer to "FLUID ")
- Perform Transaxle Control Module (TCM) learning after replacing the valve body to prevent slow transaxle response, jerky acceleration and jerky startup.
(Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")

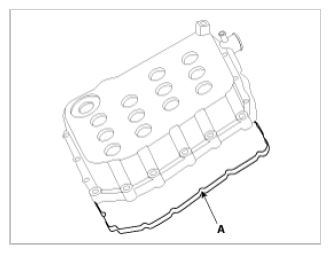

- Use new valve body gasket (A).
- Adding Automatic Transaxle Fluid (ATF).
