Pinpoint Test DL: Cylinder Head Temperature (CHT) Sensor: Introduction

WARNING: TO PREVENT THE RISK OF HIGH-VOLTAGE SHOCK, ALWAYS FOLLOW PRECISELY ALL WARNINGS AND SERVICE INSTRUCTIONS, INCLUDING INSTRUCTIONS TO DEPOWER THE SYSTEM. THE HIGH-VOLTAGE SYSTEM UTILIZES APPROXIMATELY 300 VOLTS DC, PROVIDED THROUGH HIGH-VOLTAGE CABLES TO ITS COMPONENTS AND MODULES. THE HIGH-VOLTAGE CABLES AND WIRING ARE IDENTIFIED BY ORANGE HARNESS TAPE OR ORANGE WIRE COVERING. ALL HIGH-VOLTAGE COMPONENTS ARE MARKED WITH HIGH-VOLTAGE WARNING LABELS WITH A HIGH-VOLTAGE SYMBOL. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.

This pinpoint test is intended to diagnose the following:

CHT sensor (6G004)
harness circuits: CHT, VREF, and SIGRTN
powertrain control module (PCM) (12A650)

The PCM has a dual switching resistor circuit on the CHT input. A graph showing the temperature switching from the COLD END line to the HOT END line, with increasing temperature and back with decreasing temperature is included. Note the temperature to voltage overlap zone. Within this zone it is possible to have either a COLD END or HOT END voltage at the same temperature. For example, at 90°C (194°F) the voltage could read either 0.60 volt or 3.71 volts. Refer to the table below for the temperature to voltage expected values.

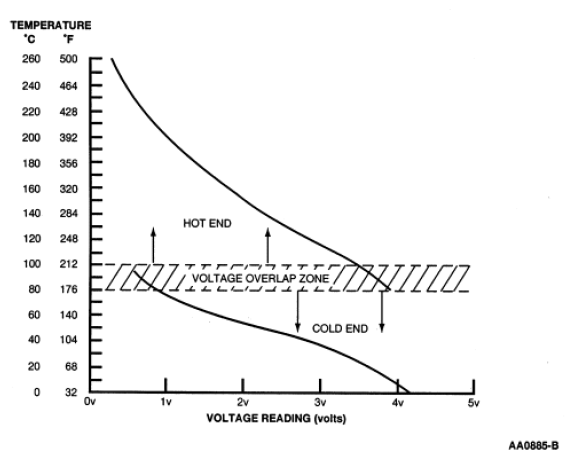

Fig 1: Cylinder Head Temperature Sensor Voltage Versus Temperature Graph

Courtesy of FORD MOTOR CO.

CYLINDER HEAD TEMPERATURE SENSOR EXPECTED VALUES

temperature		CHT Sensor Values
°C	°F	COLD END (volts)	HOT END (volts)	Resistance (K ohms)
-40	-40	4.89	-	965.808
-30	-22	4.81	-	513.019
-20	-4	4.67	-	283.664
-10	14	4.45	-	162.584
0	32	4.14	-	96.255
10	50	3.73	-	59.175
20	68	3.26	-	37.387
30	86	2.74	-	24.215
40	104	2.23	-	16.043
50	122	1.76	-	10.85
60	140	1.36	-	7.487
70	158	1.04	-	5.268
80	176	0.79	3.99	3.775
85	185	0.69	3.86	3.215
90	194	0.60	3.71	2.75
95	203	0.53	3.56	2.361
100	212	0.46	3.41	2.034
110	230	-	3.07	1.523
120	248	-	2.74	1.155
130	266	-	2.41	0.8866
140	284	-	2.10	0.6891
150	302	-	1.81	0.5417
160	320	-	1.55	0.4301
170	338	-	1.33	0.3449
180	356	-	1.13	0.2791
190	374	-	0.96	0.2278
200	392	-	0.82	0.1875
210	410	-	0.70	0.155
220	428	-	0.60	0.130
230	446	-	0.51	0.109
240	464	-	0.44	0.092
250	482		0.35	0.078
260	500		0.33	0.067

Fig 2: Identifying Cylinder Head Temperature Sensor Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	SIGRTN (Signal Return)
1	CHT (Cylinder Head Temperature)

Fig 3: Identifying Powertrain Control Module Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
E3	SIGRTN (Signal Return)
E15	CHT (Cylinder Head Temperature)
