The Refrigerant Cycle

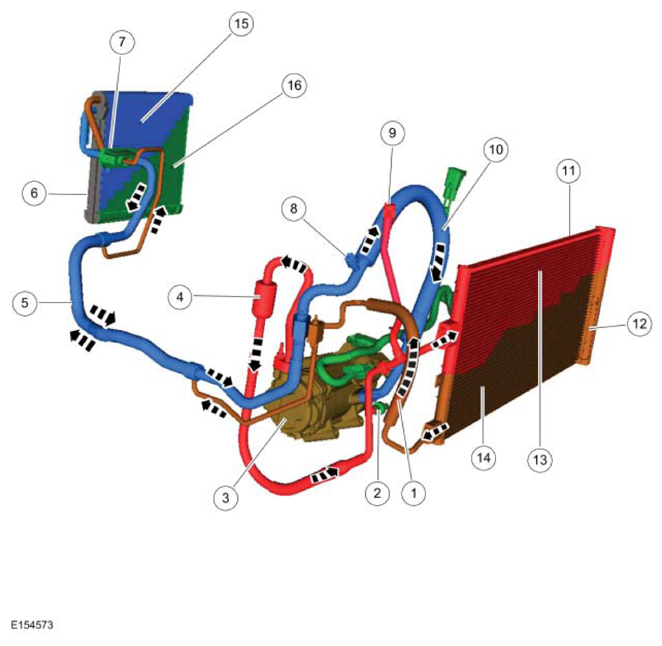

NOTE: HEV (hybrid electric vehicle) shown, others similar.
G08634299
Item Description
1 Condenser outlet line
2 A/C  pressure transducer
3 A/C  compressor
4 A/C  compressor outlet line
5 Evaporator inlet and outlet manifold
6 Evaporator
7 Thermostatic Expansion Valve (TXV)
8 A/C  charge valve port (low side)
9 A/C  charge valve port (high side)
10 A/C  compressor inlet line
11 Condenser
12 Receiver drier element
13 High pressure vapor
14 High pressure liquid
15 Low pressure vapor
16 Low pressure liquid

During stabilized conditions (A/C  system shutdown), the refrigerant pressures are equal throughout the system. When the A/C  compressor is in operation, it increases refrigerant vapor pressure, raising its temperature. The high-pressure and high-temperature vapor is then released into the top of the A/C  condenser core.

The A/C  condenser, being close to ambient temperature, causes the refrigerant vapor to condense into a liquid when heat is removed from the refrigerant by ambient air passing over the fins and tubing. The now liquid refrigerant, still at high pressure, exits from the bottom of the A/C  condenser and enters the inlet side of the A/C  receiver/drier (integral to the condenser). The receiver drier is designed to remove moisture from the refrigerant system.

The outlet of the receiver drier is connected to the Thermostatic Expansion Valve (TXV). The Thermostatic Expansion Valve (TXV) provides the orifice, restricting refrigerant flow and separating the high and low pressure sides of the A/C  system. As the liquid refrigerant passes across this restriction, its pressure and boiling point are reduced.

The liquid refrigerant is now at its lowest pressure and temperature. As it passes through the A/C  evaporator, it absorbs heat from the airflow passing over the plate/fin sections of the A/C  evaporator. This addition of heat causes the refrigerant to boil (convert to gas). The now cooler air can no longer support the same humidity level of the warmer air and the excess moisture condenses on the exterior of the evaporator coils and fins and drains outside the vehicle.

The refrigerant cycle is now repeated with the A/C  compressor again increasing the pressure and temperature of the refrigerant.

The PCM  monitors the evaporator temperature sensor thermistor as air is passed through the evaporator core and controls the A/C  clutch relay. If the temperature of the evaporator core is low enough to cause the condensed water vapor to freeze, the A/C  clutch is disengaged by the PCM  .

The high-side line pressure is monitored so that A/C  compressor operation is interrupted if the system pressure becomes too high or too low (low charge condition).

The A/C  compressor pressure relief valve opens and vents refrigerant to relieve unusually high system pressure.
