Selector Lever Knob: Installation

  1. NOTE: Keep the SelectShift™ switch wire taught while installing the selector lever knob.
    1. Position the SelectShift™ switch wire towards the back right corner of the selector knob shroud.
    2. Route the SelectShift™ switch wire through the selector lever opening.
      G08644923

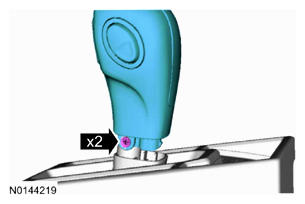

  2. NOTE: Tightening the transmission selector lever knob screws over 2 Nm (18 lb-in) may damage the selector lever assembly.
    • Tighten to 2 Nm (18 lb-in).
      G08644922
  3. G08644925

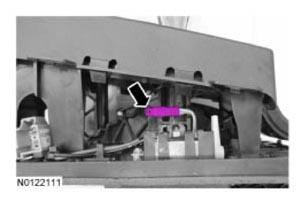

  4. NOTE: Make sure the SelectShift™ switch wire is pulled taught prior to connecting the SelectShift™ switch.
    G09699162
  5. Install the selector lever. Refer to SELECTOR LEVER .
