External Controls: Notes

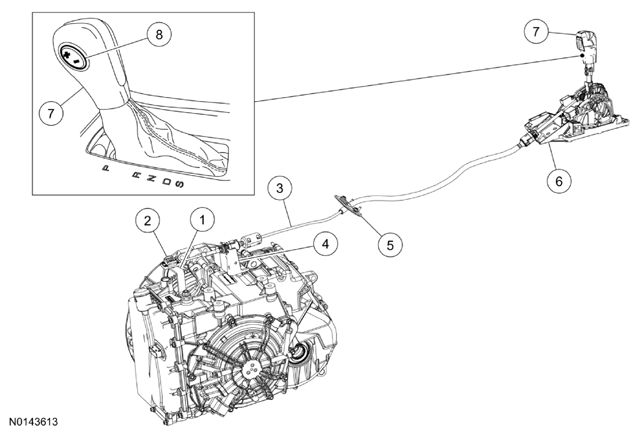

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A257 | Manual control lever |
| 2 | - | Adjuster locking tab (part of 7E395) |
| 3 | 7E395 | Selector lever cable |
| 4 | 7B229 | Selector lever cable bracket |
| 5 | - | Selector lever cable grommet (part of 7E395) |
| 6 | 7K004 | Selector lever assembly |
| 7 | 7L010 | Selector lever knob |
| 8 | - | SelectShift™ switch |
The transmission selector lever linkage consists of:
- a selector lever cable that connects the transmission manual control lever to the selector lever assembly.
- a BSIA that is integral to the selector lever assembly.
The selector lever assembly:
- locks the transmission selector lever in the PARK position when the ignition switch is in the LOCK position.
- requires the transmission selector lever to be in the PARK position to turn the ignition switch to the LOCK position.
