Transmission Fluid Cooler: Installation

1.

Install the transmission fluid cooler and the bolt.
Torque

: 18 lb.ft (25 Nm)

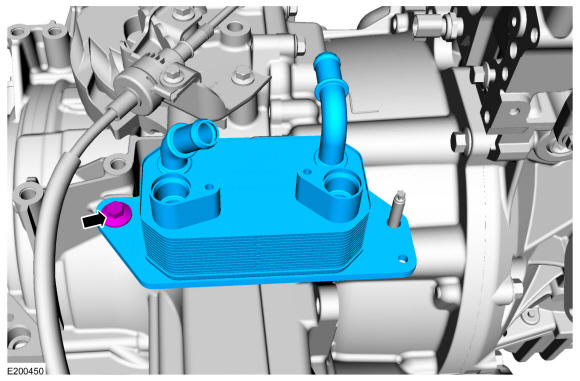

GFD46333

Courtesy of FORD MOTOR COMPANY

2.

Position back the coolant hose and the bracket and install the nut.
Torque

: 18 lb.ft (25 Nm)

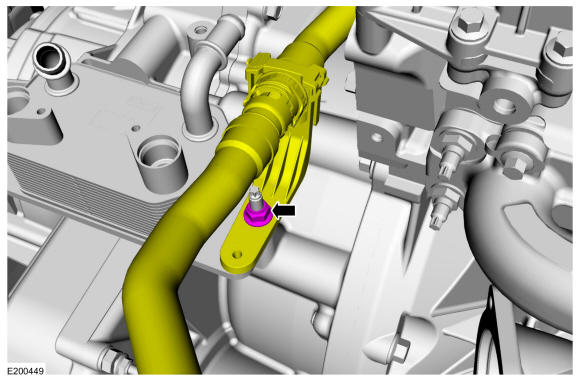

GFD46332

Courtesy of FORD MOTOR COMPANY

3.
1. 1.

  Lubricate the band seals and backing rings.
  Material

  : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)
1. 2.

  Install the transmission fluid cooler oil outlet tube and the bolt.
  Torque

  : 80 lb.in (9 Nm)
1. 3.

  Tighten the tube nut.
  Torque

  : 22 lb.ft (30 Nm)

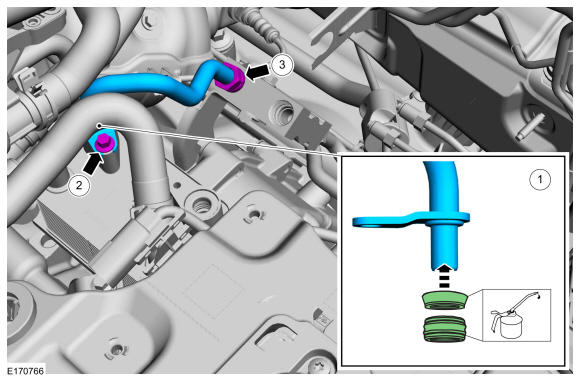

GFD46335

Courtesy of FORD MOTOR COMPANY

4.
1. 1.

  Lubricate the band seals and backing rings.
  Material

  : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)
1. 2.

  Install the transmission fluid cooler oil inlet tube and the bolt.
  Torque

  : 80 lb.in (9 Nm)
1. 3.

  Tighten the tube nut.
  Torque

  : 22 lb.ft (30 Nm)

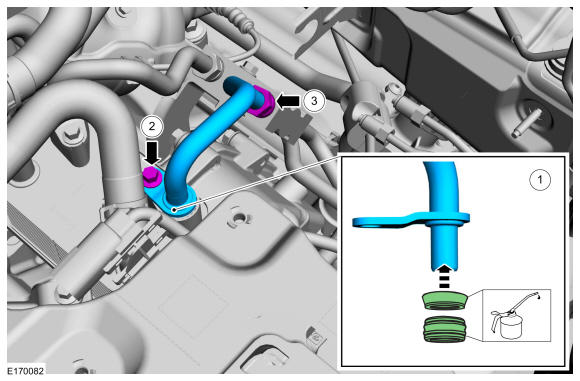

GFD46329

Courtesy of FORD MOTOR COMPANY

5.

Attach the coolant hoses and position the clamps. Remove the General Equipment: Hose Clamp(s)

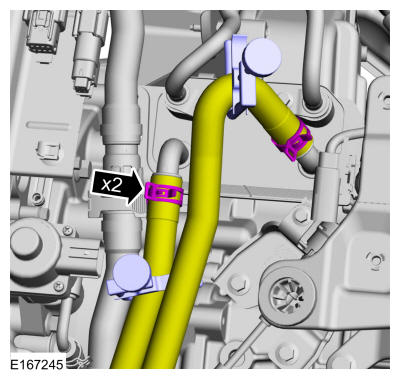

GFD46331

Courtesy of FORD MOTOR COMPANY

6.

Install the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS)

7.

Fill and bleed the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING

8.

Check the transmission fluid level. Refer to: Transmission Fluid Level Check
