Selector Lever Knob: Removal
NOTE:
The SelectShift™ switch is part of the selector lever knob. To install a new SelectShift™ switch a new selector lever knob must be installed.
- 1.

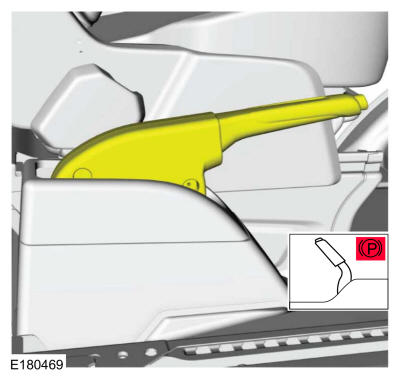

Fully apply the parking brake lever.
Courtesy of FORD MOTOR COMPANY
|
- 2.

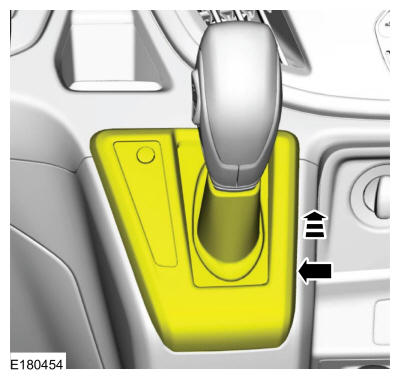

Unsnap and lift the selector lever bezel up.
Courtesy of FORD MOTOR COMPANY
|
- 3.

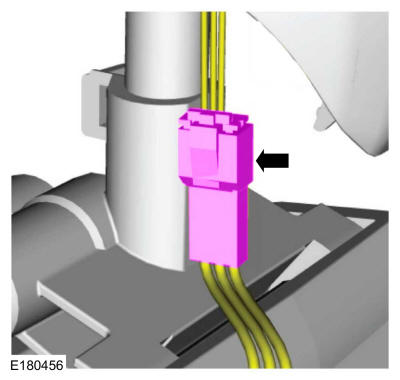

If equipped, disconnect the Tow/Haul switch electrical connector.
Courtesy of FORD MOTOR COMPANY
|
- 4.

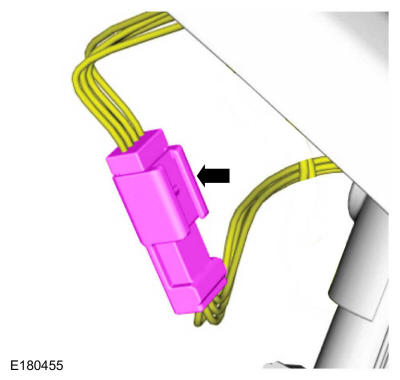

Disconnect the SelectShift™ switch electrical connector.
Courtesy of FORD MOTOR COMPANY
|
- 5.

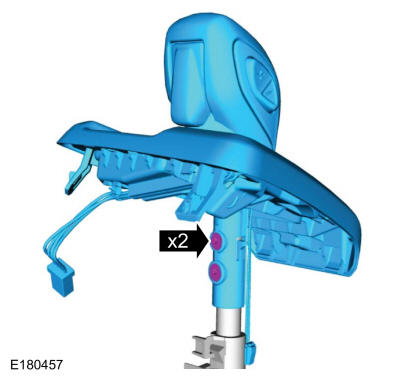

Remove the screws and the selector lever knob and bezel assembly.
Courtesy of FORD MOTOR COMPANY
|
- 6.

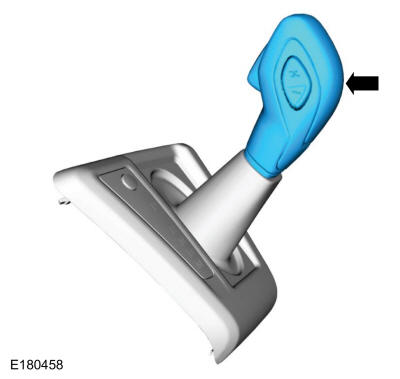

Separate the selector lever knob from the selector lever bezel.
Courtesy of FORD MOTOR COMPANY
|
