Disassembly And Assembly Of Subassemblies: Differential: Assembly
- 1.

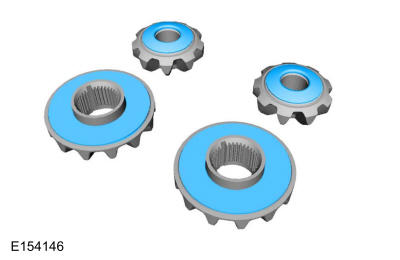

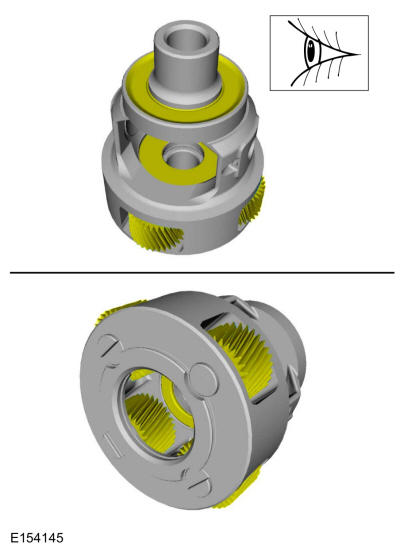

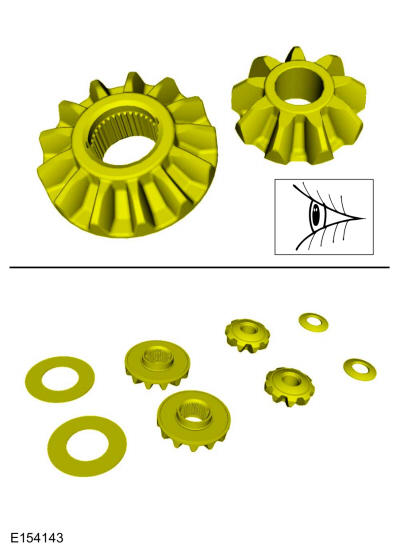

Clean and inspect the side gears and spider gears and washers for damage or excessive wear and install new components as necessary.
- 6.

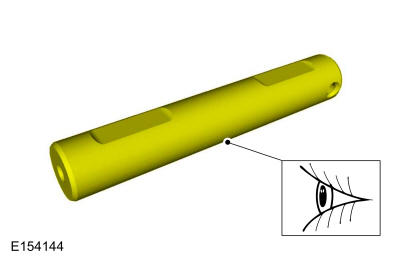

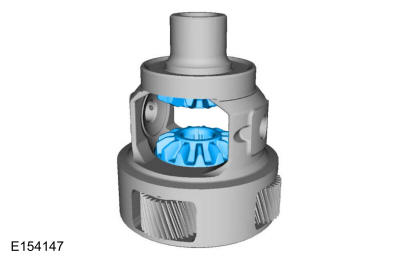

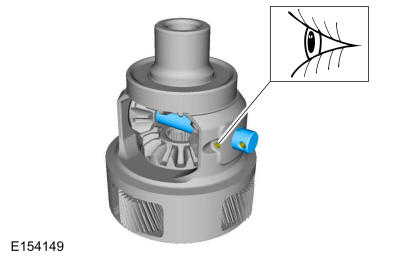

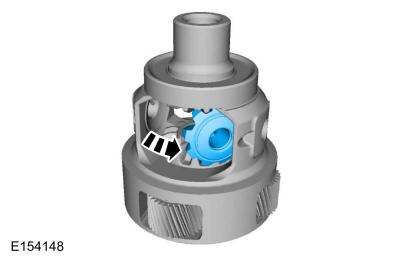

Place the spider gears in the differential carrier and rotate the side gears with the spider gears until the differential pin hole lines up to the holes in the spider gears.
