Main Control Cover: Installation

• 1.

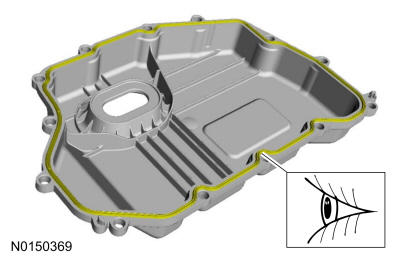

  Make sure that the mating faces are clean and free of foreign material.

Courtesy of FORD MOTOR COMPANY

• 2.


  NOTE: Install the studbolts in the locations noted during removal.

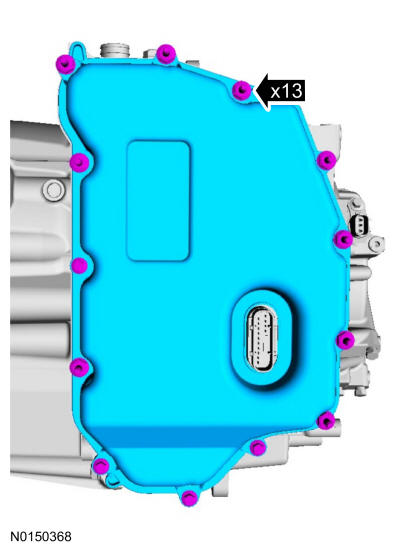

  Install the main control cover and the fasteners.

  Torque

  : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

• 3.

  Attach the wiring harness retainers and connect the electrical connector.

Courtesy of FORD MOTOR COMPANY

1.6L

• 4.

  Install the CAC tube.

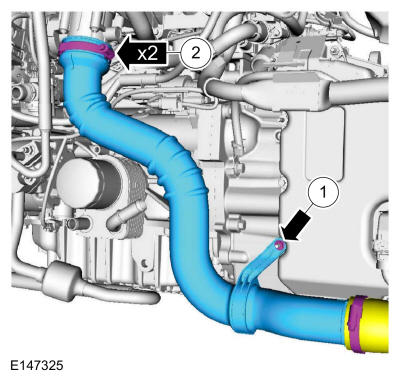

  • 1.

    Install the CAC tube and nut.

    Torque

    : 89 lb.in (10 Nm)

  • 2.

    Tighten the clamps.

    Torque

    : 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

• 5.



  • 1.

    Install the bracket and the nuts.

    Torque

    : 80 lb.in (9 Nm)

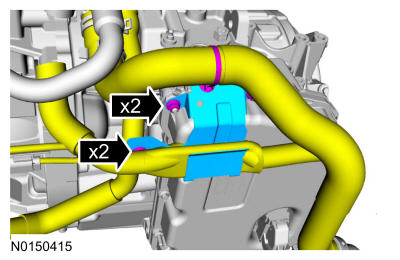

  • 2.

    Position the coolant hose, wiring harness and attach the coolant hose retainer, the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

2.0L

• 6.

  Position the CAC hose and tighten the clamp.

  Torque

  : 44 lb.in (5 Nm)

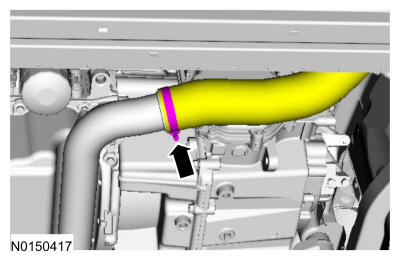

Courtesy of FORD MOTOR COMPANY

2.0L/2.5L

• 7.

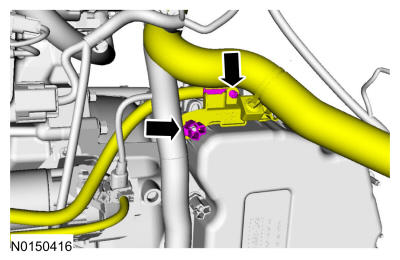

  Connect the wiring harness and the upper coolant hose retainers.

Courtesy of FORD MOTOR COMPANY

All vehicles

• 8.

  Install the air cleaner. REFER to: Air Cleaner 1.6L Ecoboost Refer to: Air Cleaner 2.0 L Ecoboost Refer to: Air Cleaner 2.5L Duratec

• 9.

  Fill the transmission with transmission fluid. REFER to: Transmission Fluid Drain and Refill

Refer to: Engine Front Undershield
