Accelerator Position Sensor (APS): Specification

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Accelerator Position	Output Voltage (V)
Accelerator Position	APS1	APS2
C.T	0.7 ~ 0.8	0.29 ~ 0.46
W.O.T	3.85 ~ 4.35	1.93 ~ 2.18

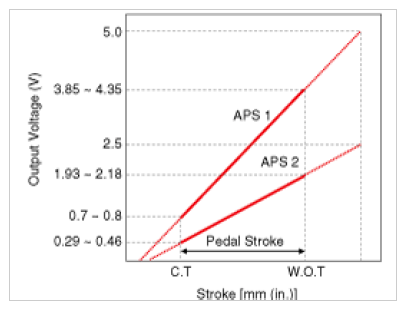

Fig 1: APS Voltage Graph

Courtesy of HYUNDAI MOTOR AMERICA
