Driver Seat Track: Installation

  1. 1.

    To install, reverse the removal procedure.

  1. 2.

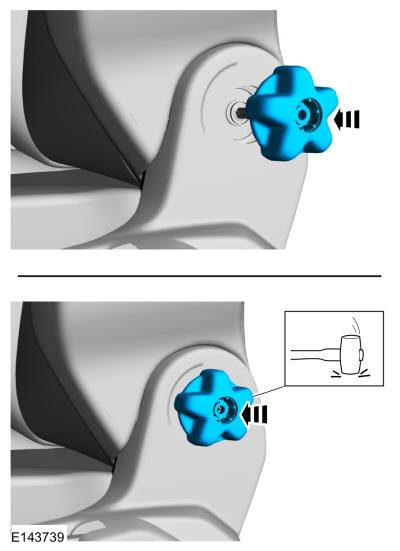

    Using rubber mallet, install the recliner handle knob. Use the General Equipment: Rubber Mallet
GFD151304Courtesy of FORD MOTOR COMPANY

  1. 3.

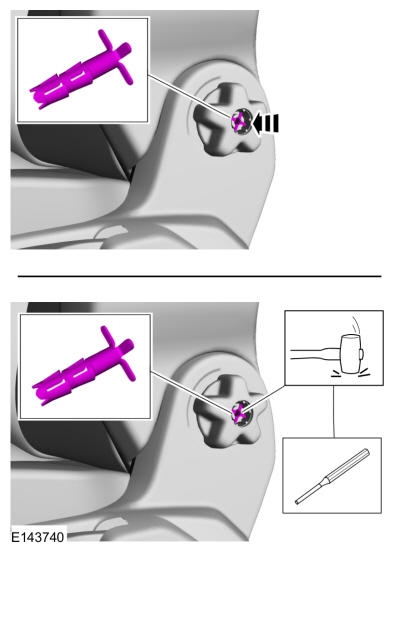

    Using rubber mallet, install the retaining clip. Use the General Equipment: Punch Use the General Equipment: Rubber Mallet
GFD151305Courtesy of FORD MOTOR COMPANY

  1. 4.

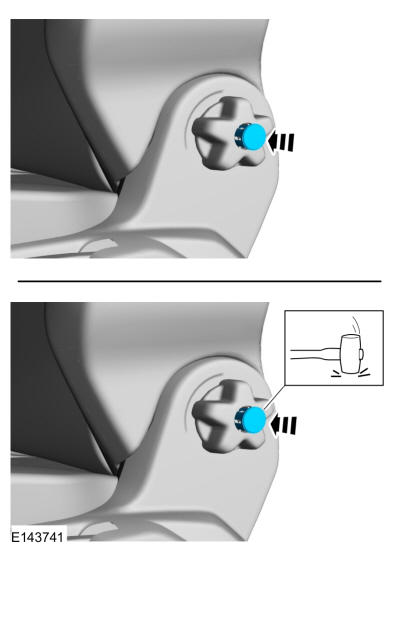

    Using rubber mallet, install the lumbar handle knob cap. Use the General Equipment: Rubber Mallet
GFD151306Courtesy of FORD MOTOR COMPANY
