Selector Lever Cable: Removal
- With the vehicle in N, position it on a hoist.
Refer to: Jacking and Lifting - Overview
- Remove the retainers and the engine undershield.

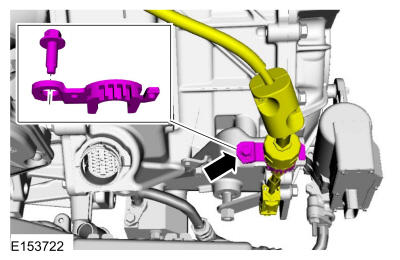

- Disconnect the selector lever cable from the transmission manual control lever.
- Remove the air cleaner.
Refer to: Air Cleaner
- Remove the bolt, unclip the selector lever cable retainer and disconnect the cable from the bracket.

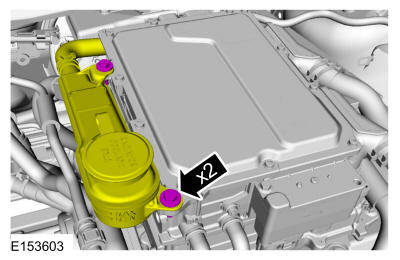

- Remove the bolts and position the brake fluid reservoir aside.

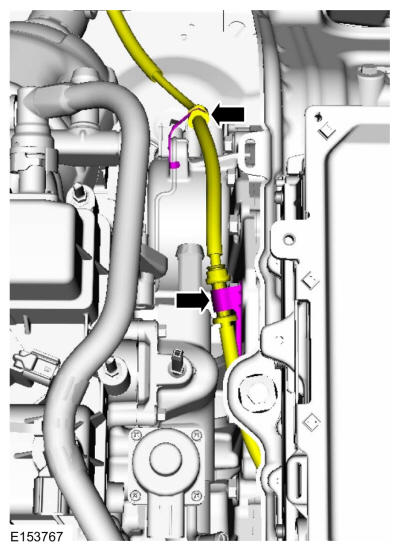

- Detach the selector lever cable from the retainers.

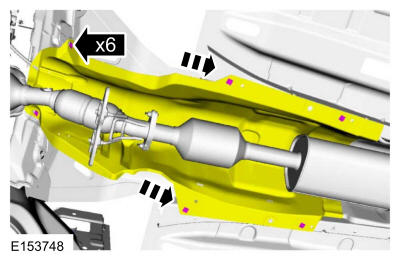

- Remove the retainers and position the exhaust heat shield to the rear.

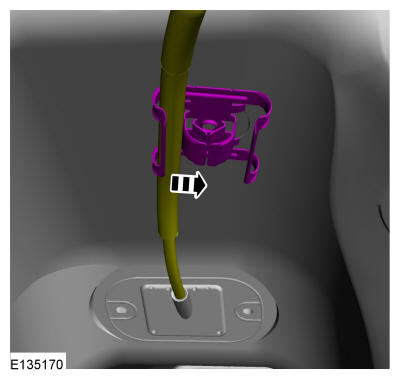

- Detach the selector lever cable from the retainer.
- Remove the floor console.
Refer to: Floor Console

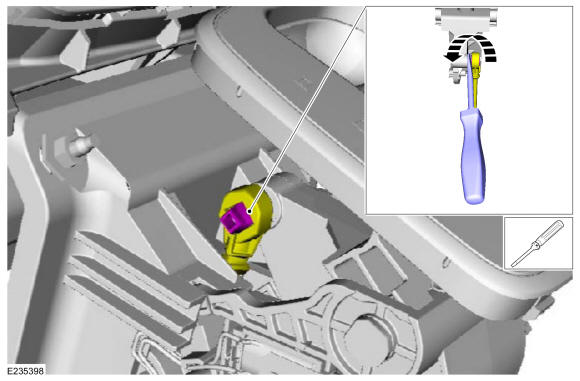

- Using a screwdriver, pry the selector lever cable end from the selector lever.

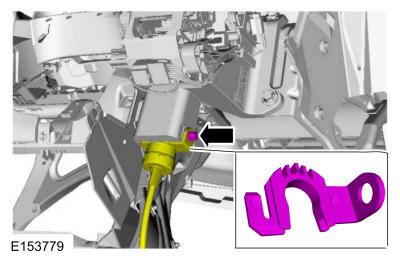

- Remove the bolt, unclip the selector lever retainer and disconnect the cable from the selector lever.

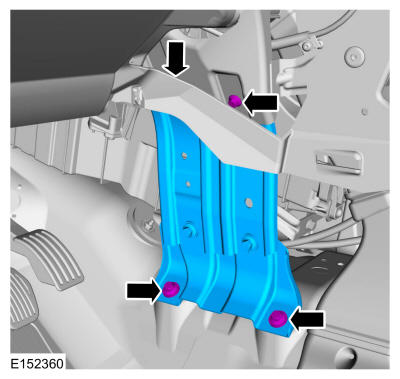

- Remove the bolts and the instrument panel bracket.

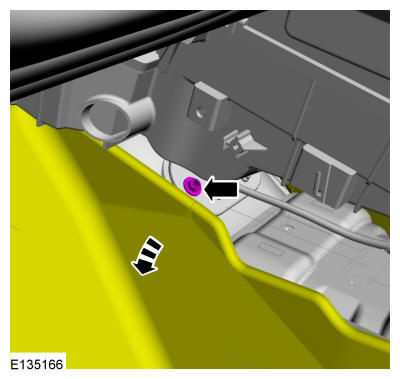

- Position the carpet aside and disconnect the HVAC hose.

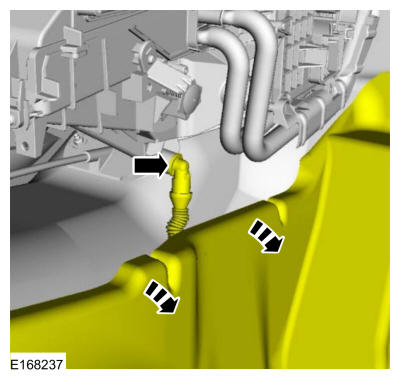

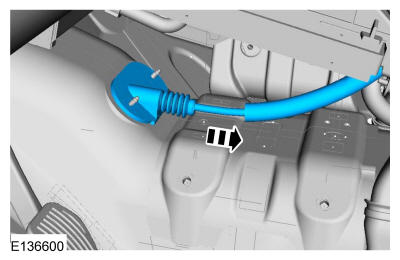

- Position the carpet aside and remove the selector lever cable grommet nuts.
- Remove the selector lever cable.
NOTE:
Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown in illustration to pry the cable end off the post as close to the post as possible.
