Fuel Pump Control Module: Installation

All Vehicles

• 1.


  NOTE: Do not overtighten the fasteners or damage to the module will occur.

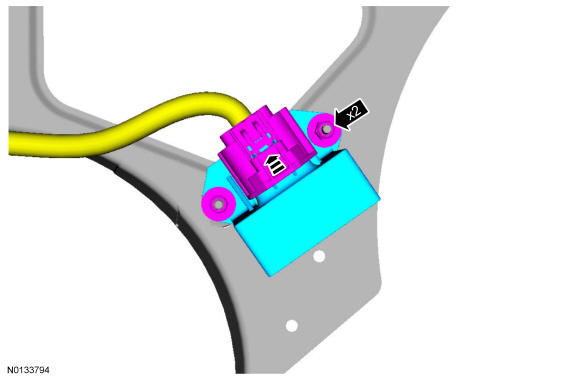

  Install the fuel pump control module, then install and tighten the fuel pump control module retainers.

  • Tighten to 5 Nm (44 lb-in).

Courtesy of FORD MOTOR COMPANY

Taurus

• 2.

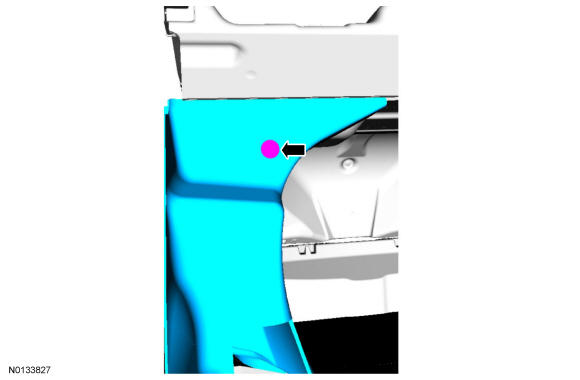

  Install the trim panel, then Install the retainer.

Courtesy of FORD MOTOR COMPANY

• 3.

  Position the right rear seat backrest back up.

Police Interceptor - Sedan

• 4.

  The fuel pump control module can be accessed through the luggage compartment.
