Powertrain Control Module (PCM): Removal

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Use the General Equipment: Ford Diagnostic Equipment
Disconnect the battery connections. Refer to: Battery Disconnect and Connect .
Remove the fender splash shield. Refer to: Fender Splash Shield .

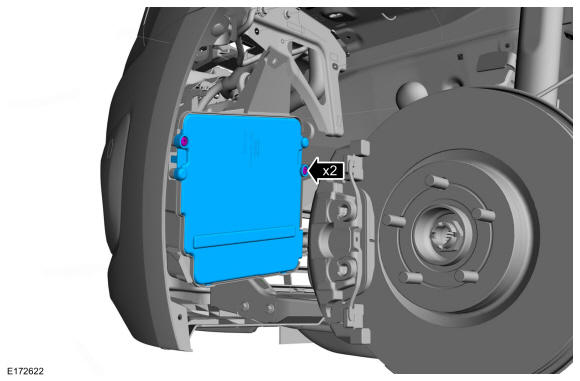

Remove the retainers and the PCM housing cover.

Courtesy of FORD MOTOR COMPANY

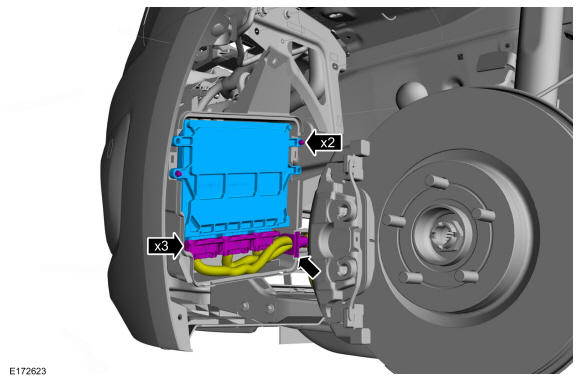

- Disconnect the retainers and the PCM electrical connectors.
- Remove the retainers and the PCM.

Courtesy of FORD MOTOR COMPANY
