Vehicle Identification Number (VIN)
VIN Locator

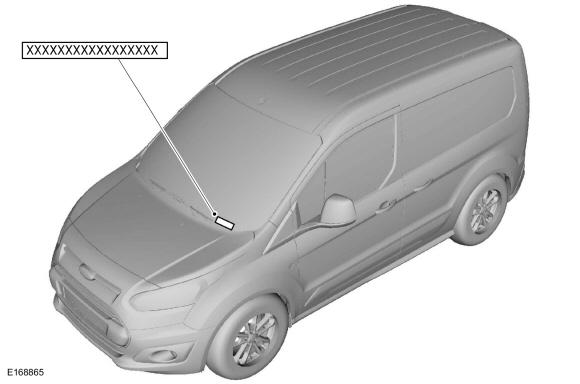

The VIN is a 17-digit combination of letters and numbers. The VIN is on a metal tab affixed to the instrument panel, top upper left of the dash. The VIN is also found on the VC label. If the VIN plate requires replacement, authorized dealers must contact their respective regional office.
| Item | Description |
|---|---|
| 1 | WMI (World Manufacturer Identifier) |
| 2 | Restraint and GVW code |
| 3 | Vehicle line, series, body-type code |
| 4 | Engine-type code |
| 5 | Computer-generated check digit |
| 6 | Model year code |
| 7 | Assembly plant code |
| 8 | Production sequence number |
World Manufacturer Identifier
The first 3 VIN positions are the WMI (World Manufacturer Identifier).
- NM0 - Ford Motor Company of Europe, Valencia, truck
Restraint and GVW Type
The fourth VIN position is the vehicle restraint and GVW type code.
- A - Active safety belts (all positions), driver and front passenger air bags, side air bags - 1st and 2nd row, 4, 001-5, 000 lbs. GVW
- G - Active safety belts (all positions), driver and front passenger air bags, side air bags - 1st and 2nd and 3rd row, 5, 001-6, 000 lbs. GVW
- L - Active safety belts (all positions), driver and front passenger air bags, 1st row side air bags, 5, 001-6, 000 lbs. GVW
- 8 - Active safety belt (all positions), driver only air bag and 1st row side air bag, 5, 001 - 6, 000 GVW
Vehicle Line, Series and Body Type
Positions 5 through 7 indicate vehicle line, series and body type.
- E6E - XL - cargo van, short wheelbase, dual sliding doors, rear liftgate with fixed glass - US
- E6F - XLT - cargo van, short wheelbase, dual sliding doors, rear liftgate with fixed glass - US
- E7E - XL - cargo van, long wheelbase, dual sliding doors, rear liftgate with fixed glass - US and Canada
- E7F - XLT - cargo van, long wheelbase, dual sliding doors, rear liftgate with fixed glass - US and Canada
- E7H - XL - cargo van, long wheelbase, single sliding door, LH side cargo door delete, rear liftgate with fixed glass - Canada
- E7J - XLT - cargo van, long wheelbase, single sliding door, LH side cargo door delete, rear liftgate with fixed glass - Canada
- E8F - XLT - wagon, short wheelbase, dual sliding doors, 2nd row glass with 1 shot sliding up/down, fixed 3rd row glass, Rear liftgate with fixed glass - US
- E9E - XL - wagon, long wheelbase, dual sliding doors, 2nd row glass slides up/down, 3rd row fixed glass, rear liftgate with fixed glass - US and Canada
- E9F - XLT, wagon, long wheelbase, dual sliding doors, 2nd row glass 1 shot sliding up/down, fixed 3rd row glass, rear liftgate with fixed glass - US and Canada
- E9G - Titanium, wagon, long wheelbase, dual sliding doors, 2nd row glass 1 shot sliding up/down, fixed 3rd row glass, rear liftgate with fixed glass - US and Canada
- S6E - XL, cargo van, short wheelbase, dual sliding doors, rear swinging doors - US
- S6F - XLT, cargo van, short wheelbase, dual sliding doors, rear swinging doors - US
- S7E - XL, cargo van, long wheelbase, dual sliding doors, rear swinging doors - US and Canada
- S7F - XLT, cargo van, long wheelbase, dual sliding doors, rear swinging doors - US and Canada
- S7H - XL, cargo van, long wheelbase, single sliding door, LH side cargo door delete, rear 180 ° doors without glass - Canada
- S7J - XLT, cargo van, long wheelbase, single sliding door, LH side cargo door delete, rear 180 ° doors without glass - Canada
- S7P - XL, cargo van, long wheelbase, dual sliding doors, rear swinging doors, front passenger door delete, postal van - Canada
- S8F - XLT, wagon, short wheelbase, dual sliding doors, 2nd row glass 1 shot sliding up/down, 3rd row and rear door fixed glass with 180 ° rear doors - US
- E8G - Titanium - wagon, short wheelbase, dual sliding doors, 2nd row glass with 1 shot sliding up/down, rear liftgate with fixed glass - US
- S9E - XL, wagon, long wheelbase, dual sliding doors, 2nd row glass slide up/down, 3rd row fixed glass, rear swinging doors - US and Canada
- S9F - XLT, wagon, long wheelbase, dual sliding doors, 2nd row glass 1 shot sliding up/down, 3rd row fixed glass, rear swinging doors - US and Canada
Engine Type
The eighth VIN position identifies the engine type, displacement and number of cylinders.
- 7 - 2.5 L, DOHC, in-line 4-cylinder
Check Digit
The ninth VIN position is a government-assigned, computer-generated check digit.
- 0-9
Model Year
The tenth VIN position is the model year code.
- H - 2017
Assembly Plant
The eleventh VIN position is the assembly plant code.
- 1 - Valencia Assembly - Valencia, Spain
Production Sequence Number
The last 6 VIN positions are a numeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. The serial number can also be found on the engine block, transmission and frame.
- 000001-999999
