Transmission Case: Disassembly

  1. NOTE: The transmission case bushing should only be removed if the bushing is damaged.
    NOTE: Press the bushing out of the transmission case from the outside to the inside so the transmission case rests on a flat surface.

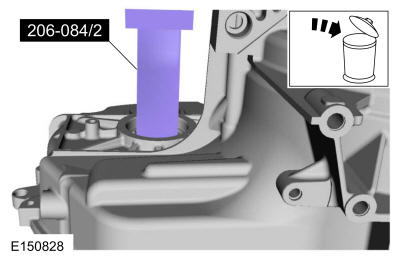

    If necessary, use the special tools to remove and discard the LH transmission case bushing from the transmission case. Use Special Service Tool: 206-084 Installer, Wheel Speed Sensor Ring. Use the General Equipment: Hydraulic Press

    GFD215471Courtesy of FORD MOTOR COMPANY
  2. Remove the differential ring gear snap ring.
    GFD215472Courtesy of FORD MOTOR COMPANY
  3. Remove the differential ring gear.
GFD215473Courtesy of FORD MOTOR COMPANY
