Main Control Cover: Removal

  1. Remove the air cleaner. Refer to: Air Cleaner .
  2. Remove the wiring harness retainers.
    GFD215073Courtesy of FORD MOTOR COMPANY
  3. Remove the wiring harness retainers.
    GFD215074Courtesy of FORD MOTOR COMPANY
  4. Remove wiring harness retainer bracket nuts from the front cover.
    GFD215075Courtesy of FORD MOTOR COMPANY
  5. Remove the transmission main control cover studs.
    GFD215076Courtesy of FORD MOTOR COMPANY
  6. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  7. If equipped.

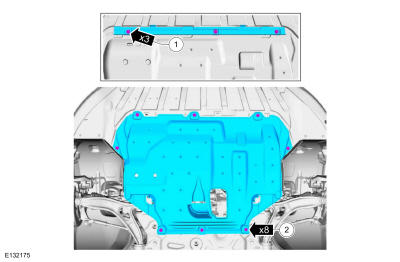

    1. Remove the retainers and the shield reinforcement.
    2. Remove the retainers and the underbody shield.

    GFD214403Courtesy of FORD MOTOR COMPANY
  8. NOTE: Be prepared to collect escaping fluid.

    Remove the transmission fluid pan drain plug and allow the transmission fluid to drain.

    GFD215051Courtesy of FORD MOTOR COMPANY
  9. NOTE: Make sure that the component terminals are not bent or damaged.

    Disconnect the main electrical connector, remove the wiring harness retainers from the transmission fluid thermal bypass valve bracket and position aside the wiring harness.

    GFD215077Courtesy of FORD MOTOR COMPANY
  10. Remove the transmission main control cover studs.
    GFD215078Courtesy of FORD MOTOR COMPANY
  11. Remove the transmission main control cover studs.
    GFD215079Courtesy of FORD MOTOR COMPANY
  12. NOTE: Be prepared to collect escaping fluid.

    Remove the bolts and remove the transmission main control cover.
