Main Control Valve Body: Installation

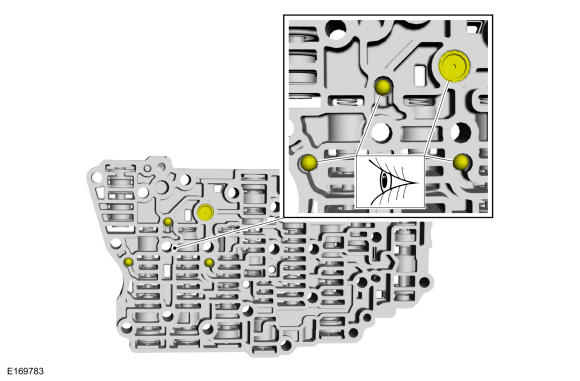

- Verify the check balls and the solenoid damper are in place.
-
NOTE: Make sure that a new component is installed.

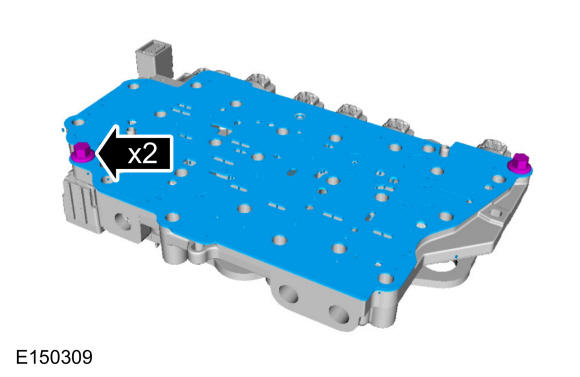

Install the solenoid body-to-valve body separator plate.
Torque: 89 lb.in (10 Nm)
-

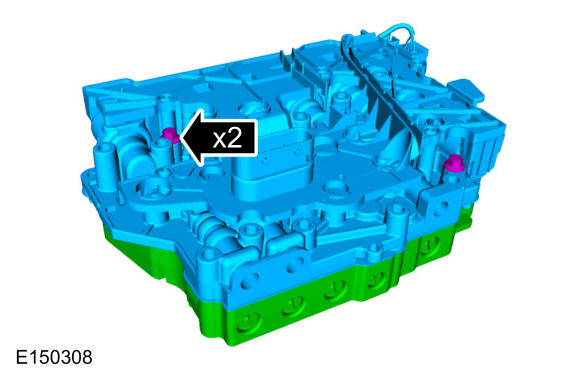

- Install the main control valve body. And install the solenoid body and transmission internal wiring harness frame assembly.
- Install the solenoid body-to-valve body bolt.
Torque: 89 lb.in (10 Nm)
-
NOTE: Make sure that the component is correctly located on the locating dowels.NOTE: Make sure that a new component is installed.NOTE: Position the OSS and TR sensor wiring harnesses aside. On the alignment pins.

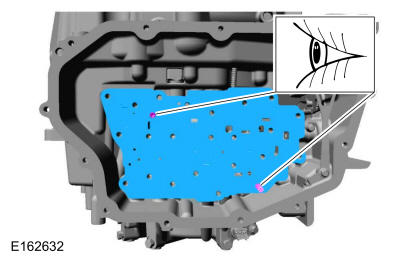

Install and inspect the main control-to-transmission case separator plate to make sure it is positioned correctly.
-
NOTE: Extreme cleanliness must be exercised when handling the component.NOTE: Take extra care when handling the components.
- Install the transmission internal wiring harness frame, main control valve body and the solenoid body as an assembly.
- Align the manual valve with the manual valve pin.

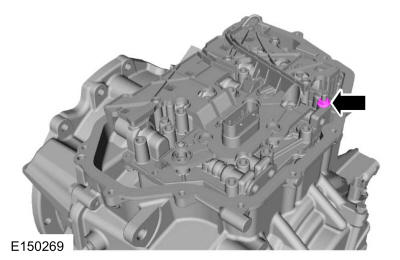

- Install the nut hand tight.
-
NOTE: Only tighten the bolts finger tight at this stage.

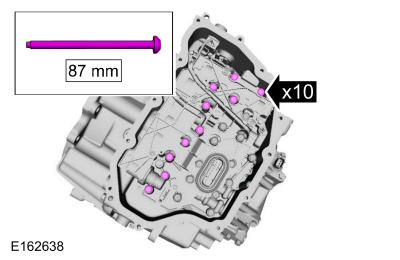

Install the bolts.
-
NOTE: Only tighten the bolts finger tight at this stage.

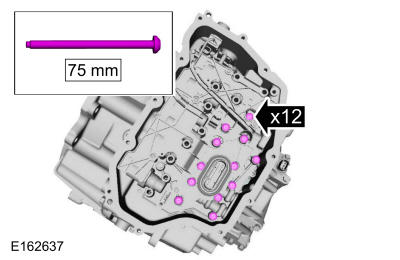

Install the bolts.

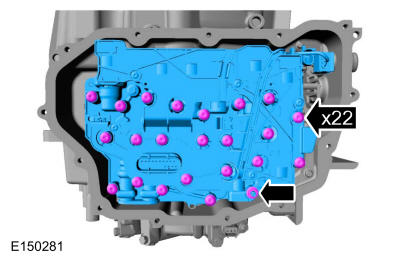

- Tighten the main control-to-transmission case bolts and nut in a crisscross pattern.
Torque: 89 lb.in (10 Nm)
-
NOTE: The gasket is to be reused unless damaged.
Install the rubber grommet.
-
NOTE: Make sure that the cable is correctly routed.

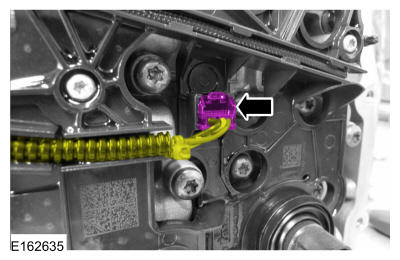

Connect the OSS electrical connector.

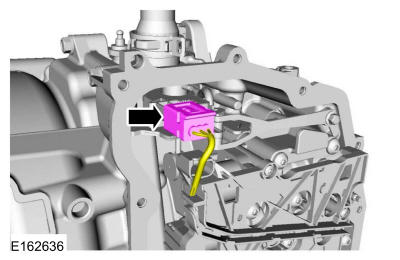

- Connect the TR sensor electrical connector.
- Install the main control cover. Refer to: Main Control Cover .
-
NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.
If a new solenoid body is installed, update the solenoid body strategy. Refer to: Transmission Strategy Download .
