Fuel Pump Control Module: Installation

All Vehicles

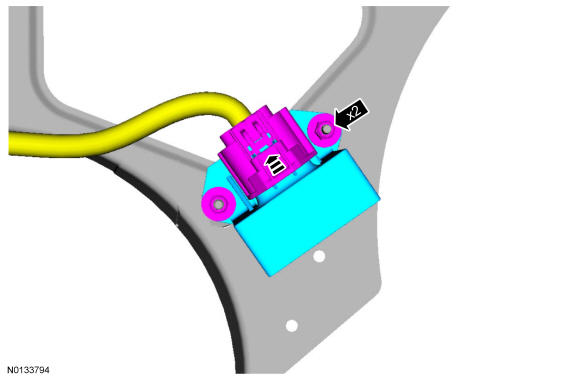

1. NOTE: Do not overtighten the fasteners or damage to the module will occur.

   Install the fuel pump control module, then install and tighten the fuel pump control module retainers.

   • Tighten to 5 Nm (44 lb-in).

   Courtesy of FORD MOTOR COMPANY

   Taurus

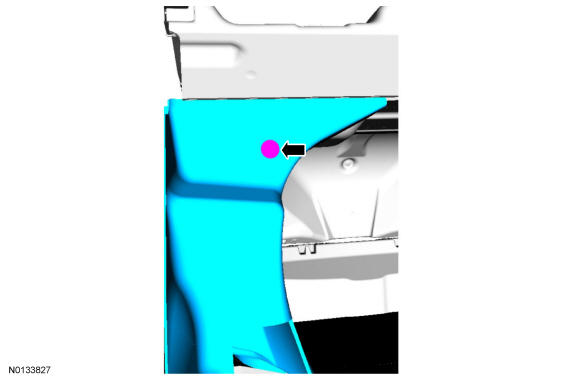

2. Install the trim panel, then Install the retainer.

   Courtesy of FORD MOTOR COMPANY

3. Position the right rear seat backrest back up.

   Police Interceptor - Sedan

4. The fuel pump control module can be accessed through the luggage compartment.
