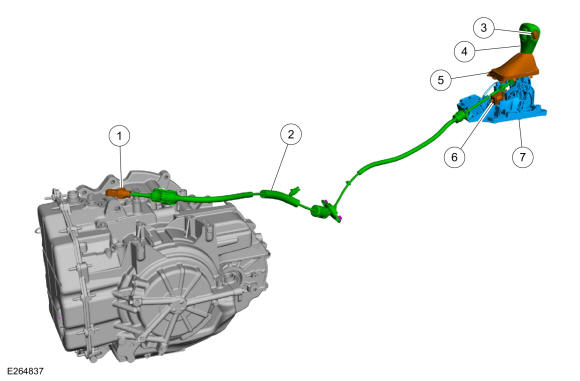

External Controls - Component Location
6F35
| Item | Description |
|---|---|
| 1 | Selector lever cable adjuster |
| 2 | Selector lever cable |
| 3 | SelectShift® switch (if equipped) |
| 4 | Selector lever knob |
| 5 | Selector lever boot |
| 6 | Brake shift interlock actuator |
| 7 | Selector lever assembly |

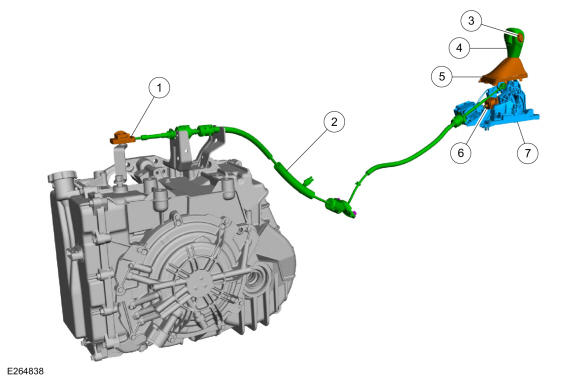

6F50/6F55 Floor Shift
| Item | Description |
|---|---|
| 1 | Selector lever cable adjuster |
| 2 | Selector lever cable |
| 3 | SelectShift® switch (if equipped) |
| 4 | Selector lever knob |
| 5 | Selector lever boot |
| 6 | Brake shift interlock actuator |
| 7 | Selector lever assembly |

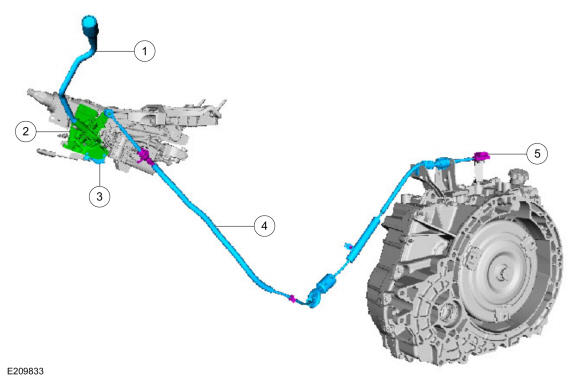

6F50/6F55 Column Shift
| Item | Description |
|---|---|
| 1 | Selector lever |
| 2 | Selector lever mechanism |
| 3 | Brake shift interlock actuator |
| 4 | Selector lever cable |
| 5 | Selector lever cable adjuster |

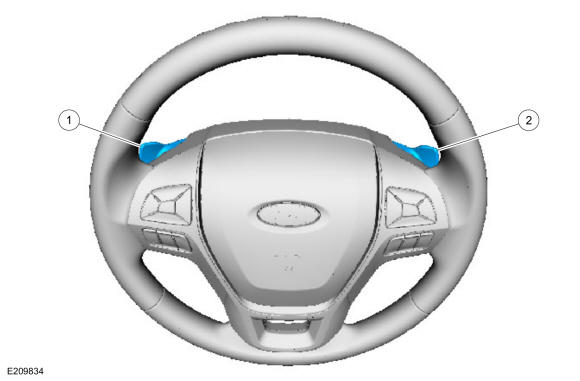

Steering Wheel Paddle Switches
| Item | Description |
|---|---|
| 1 | Downshift paddle switch (if equipped) |
| 2 | Upshift paddle switch (if equipped) |

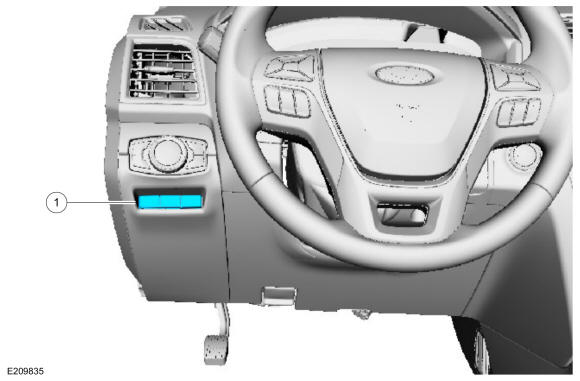

TCS
| Item | Description |
|---|---|
| 1 | TCS |
