Pinpoint Tests B: Powertrain Control Module (Pcm) Power Relay: Introduction
WARNING:
To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system. The high-voltage system utilizes approximately 300 volts DC, provided through high-voltage cables to its components and modules. The high-voltage cables and wiring are identified by orange harness tape or orange wire covering. All high-voltage components are marked with high-voltage warning labels with a high-voltage symbol. Failure to follow these instructions may result in serious personal injury or death.
This pinpoint test is intended to diagnose the following:
Harness Side
| Circuit | Pin |
|---|---|
| B+ (Battery Positive Voltage) | 1 |
| B+ (Battery Positive Voltage) | 3 |
| PCMRC (PCM Relay Control) | 2 |
| VPWR (Vehicle Power) | 5 |

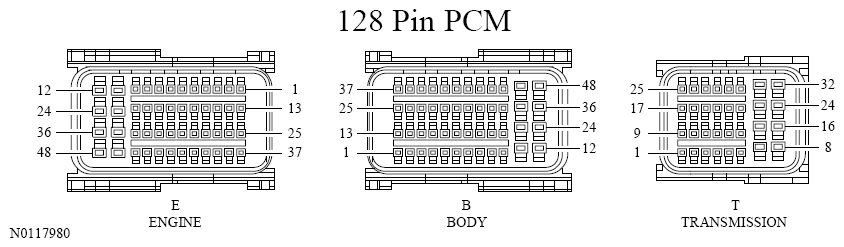

Harness Side
| Circuit | Pin |
|---|---|
| ISP-R (Ignition Switch Position Run) | B8 |
| PCMRC (PCM Relay Control) | B1 |
| VPWR (Vehicle Power) | B11 |
| VPWR (Vehicle Power) | B12 |
