Pinpoint Tests BB: Transmission Control Module (TCM) Power Relay: Introduction
WARNING:
To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system. The high-voltage system utilizes approximately 300 volts DC, provided through high-voltage cables to its components and modules. The high-voltage cables and wiring are identified by orange harness tape or orange wire covering. All high-voltage components are marked with high-voltage warning labels with a high-voltage symbol. Failure to follow these instructions may result in serious personal injury or death.
WARNING:
Stop this test at the first sign of a fuel leak and repair as required. No open flame. No smoking during fuel delivery checks. Failure to follow these instructions may result in personal injury.
This pinpoint test is intended to diagnose the following:

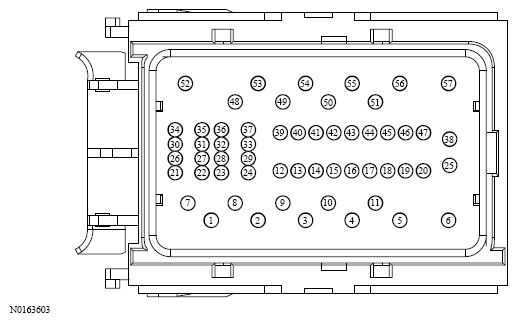

Harness Side
| Circuit | Pin |
|---|---|
| TCMRC (Transmission Control Module Relay Control) | 39 |
| VPWR (Vehicle Power) | 46 |

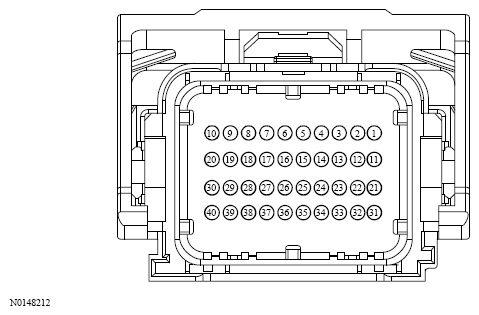

Harness Side
| Circuit | Pin |
|---|---|
| B+ (Battery Positive Voltage) | 6 |
| TCMRC (Transmission Control Module Relay Control) | 40 |
| VPWR (Vehicle Power) | 29 |
| VPWR (Vehicle Power) | 9 |
| VPWR (Vehicle Power) | 10 |
| VPWR (Vehicle Power) | 29 |
| VPWR (Vehicle Power) | 9 |
| VPWR (Vehicle Power) | 10 |
