Pinpoint Tests H: Fuel Control: Introduction
WARNING:
To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system. The high-voltage system utilizes approximately 300 volts DC, provided through high-voltage cables to its components and modules. The high-voltage cables and wiring are identified by orange harness tape or orange wire covering. All high-voltage components are marked with high-voltage warning labels with a high-voltage symbol. Failure to follow these instructions may result in serious personal injury or death.
This pinpoint test is intended to diagnose the following:
- fuel injector(s) (9F593)
- universal HO2S (9Y460)
- vacuum system
- harness circuit: UO2SPC11
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| UO2SPC11 (Universal Oxygen Sensor Pumping Current Bank 1, Sensor 1) | 1 |

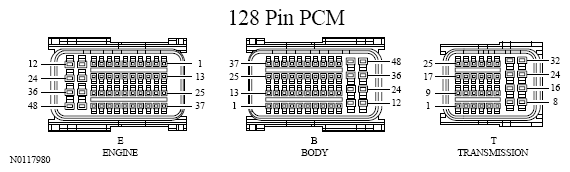

Harness Side
| Circuit | Pin |
|---|---|
| UO2SPC11 (Universal Oxygen Sensor Pumping Current Bank 1, Sensor 1) | E8 |
