Typical Diagnostic Reference Values

Inputs Component/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
AAT AAT Sensor 29 (84.20) 28 (82.40) 23 (73.40) 23 (73.40 DEG C (DEG F)
AAT_V AAT Sensor 0.98 1.01 1.16 1.16 VOLTS
AC_REQ PID NO NO NO NO YES/NO
APP APP Sensor 0 0 18 13.50 %
APP_MAXDIFF PID 0 0 0 0 DEG
APP_MODE PID NO PEDAL NO PEDAL NO PEDAL PART PEDAL NO PEDAL/PART PEDAL
APP1 APP1 Sensor 0.76 0.76 1.32 1.18 VOLTS
APP1 (APP_D) APP1 Sensor 14.90 14.90 26.27 23.52 %
APP2 APP1 Sensor 0.38 0.38 0.66 0.60 VOLTS
APP2 (APP_E) APP1 Sensor 7.45 7.45 13.33 11.76 %
B+ PID 12.91 13.52 13.49 13.57 VOLTS
BARO PID 99.97 (14.50)/157.02/401.46 99.97 (14.50)/157.02/401.46 99.97 (14.50)/157.02/401.46 99.97 (14.50)/157.02/401.46 kPa (PSI)/Hz/in-H 2 O
BOO1 BPP Switch OFF OFF OFF OFF ON/OFF
BOO2 BPS Switch OFF OFF OFF OFF ON/OFF
BRKOVR_ACTION PID 0 0 0 0 NUMERIC VALUE
BRKOVRD_POSS PID 0 0 0 0 NUMERIC VALUE
CHT CHT Sensor 3.27/98 (208.40) 3.31/96 (204.80) 3.47/92 (197.60) 3.53/91 (195.80) VOLTS/DEG C (DEG F)
DECHOKE PID YES NO NO NO YES/NO
DIST_BRKOVRD PID 0 0 0 0 KM (MILES)
EQ_RAT11 PID 0/0:1 1/14.73:1 1.06/15.53:1 0.94/13.75:1 RATIO
ETC_ACT PID 8 2.75 11.19 3.41 DEG
ETC_TRIM PID 0.42 0.42 0.42 0.42 DEG
EVAP_LDP_PRS EVAP Leak Detection Control Module 0 (0) -0.41 (-0.06) -0.76 (-0.11) -0.97 (-0.14) kPa (PSI)
EVAP_LDP_PSV EVAP Leak Detection Control Module 3.60 3.61 3.60 3.59 VOLTS
FLI Fuel Level Sensor 32.94 34.11 30.98 30.98 %
FPM Fuel Pump Control Module 39.60 38.63 39.60 39.54 %
FTP (plug in vehicles) FTP Sensor 1.81/547.00 (0.08) 1.85/586.00 (0.08) 1.73/452.00 (0.07) 1.73/452.00 (0.07) VOLTS/Pa (PSI)
FTP (all others) FTP Sensor 1.88/-1.29 (-0.19) 1.81/-1.42 (-0.21) 1.87/-1.32 (-0.19) 2.13/-0.83 (-0.12) VOLTS/kPa (PSI)
HTRCM11 HO2S11 Sensor 0 1.47 1.46 1.46 mA
HTRCM12 HO2S12 Sensor 0 742 697 697 mA
IAT IAT Sensor 1.01/61 (141.80) 1.25/53 (127.40) 2.05/31 (87.80) 2.07/31 (87.80) VOLTS/DEG C (DEG F)
INJPWR_M PID 12.91 13.49 13.52 13.54 VOLTS
KEYST Ignition Switch ON ON ON ON ON/OFF
KNOCK_1 KS1 Sensor 0 56 0 97 N/A
KNOCK_2 KS2 Sensor 0 60 0 126 N/A
LOAD PID 0 30.98 79.21 49.41 %
MAF MAF Sensor 2.17 2.90 13.31 7.25 g/s
MAF_HZ MAF Sensor 0.71 2.27 4.09 2.87 kHz
MAP MAP Sensor 4.06/99.97 (14.50) 1.49/35.99 (5.22) 3.44/84.94 (12.32) 2.53/61.98 (8.99) VOLTS/kPa (PSI)
MAP_GAUGE MAP Sensor 4.01 260.95 40.14 32.11 in-H 2 O
MISFIRE PID NO NO NO NO YES/NO
MP_LRN PID YES YES YES YES YES/NO
NUM_MISFIRE PID 0 1 2 2 COUNT
O2S11_CUR HO2S11 Sensor (C) switching (A) switching (A) switching (A) uA
O2S11_IMPED HO2S11 Sensor 4.15 0.98 0.98 0.98 VOLTS
O2S11_READY HO2S11 Sensor NO YES YES NO YES/NO
O2S11_TR HO2S11 Sensor 0 0 0 0 Kohm
O2S12 HO2S12 Sensor (C) (B) (B) (B) VOLTS
OCTADJ_R_LRND PID 15.21 15.21 15.21 15.21 %
RPM CKP Sensor 0 1163.25 1441.50 1396.50 RPM
SYNC PID YES YES YES YES YES/NO
TP1 TP1 Sensor 4.07/18.43 4.27/14.51 4.33/12.94 3.56/28.23 VOLTS/%
TP2 TP2 Sensor 1.25/24.70 0.85/16.86 0.72/14.11 2.25/44.70 VOLTS/%
TPMODE PID WOT PT CT PT CLOSED/PART/WIDE OPEN THROTTLE
VCTSYS PID OPEN LOOP CLOSED LOOP OPEN LOOP CLOSED LOOP OPEN LOOP/CLOSED LOOP
VSS PID 0 0 48 km/h (30 MPH) 89 km/h (55 MPH) km/h/MPH
Outputs Component/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
EGR_STEP EGR Valve 0 2 0 11 POSITION
EGRPCT PID 0 3.52 0 30.58 %
ETC [TAC_PCT] PID 9.41 3.13 9.41 5.49 %
EVAP020C PID NO NO NO NO YES/NO
EVAPSTA PID NOT RUNNING NOT RUNNING NOT RUNNING NOT RUNNING STATUS
EVAP_LDP_CMD EVAP Leak Detection Control Module OFF OFF OFF OFF ON/OFF
EVAP_SW_VLV EVAP Leak Detection Control Module 0 0 0 0 %
EVBV EVB Valve 0/OFF 0/OFF 100/ON 100/ON %/ON/OFF/VARYING
FAN_DSD PID 26.78 8.17 7.99 7.99 %
FANDC PID 26.66 7.84 7.84 7.84 %
FP Fuel Pump Control Module 75/OFF 43.76/ON 75/OFF 44.33/ON %/ON/OFF
FUELSYS PID OPEN LOOP CLOSED LOOP OPEN LOOP CLOSED LOOP OPEN/CLOSED LOOP
HTR11 HO2S11 Sensor OFF ON ON ON ON/OFF
HTR12 HO2S12 Sensor OFF ON ON ON ON/OFF
LONGFT1 PID (C) -20 TO +20 -20 TO +20 -20 TO +20 %
MIL PID OFF OFF OFF OFF ON/OFF
O2S11_HTR HO2S11 Sensor 22.74 41.96 36.86 33.33 %
O2_DS_DISBL PID YES NO YES YES YES/NO
RO2FT1 PID 0 1.09 0 0 %
SHRTFT1 PID (C) -10 TO +10 -10 TO +10 -10 TO +10 %
SPARKADV PID 10 23.25 10 30.25 DEG
VCTADV PID 0 0 0 -35.31 DEG
VCTADVERR PID 0 0 0 0.31 DEG
VCTDC VCT1 Solenoid 0 0 0 0 %
Other Component/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
VPWR PID VBAT VBAT VBAT VBAT VOLTS
VREF PID 5 5 5 5 VOLTS

TCM A

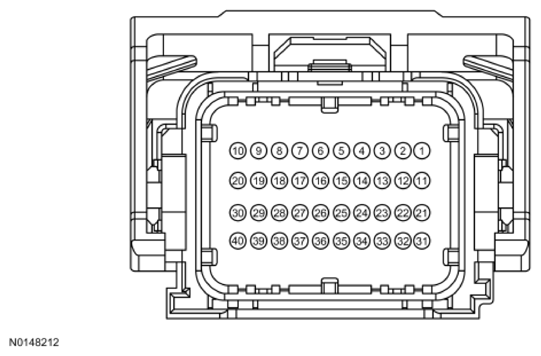

Fig 1: 2.0L 4V PCM Connector (TCM A)
G09136860Courtesy of FORD MOTOR CO.

TCM B

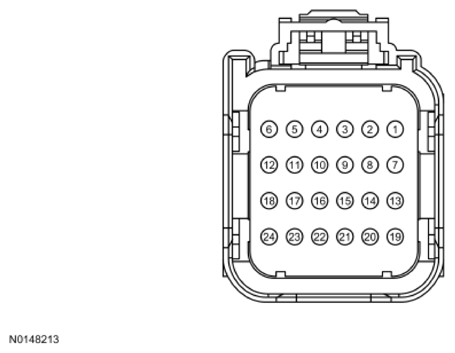

Fig 2: 2.0L 4V PCM Connector (TCM B)
G09136945Courtesy of FORD MOTOR CO.
SOBDMC Inputs Component/PID Only Measured/PID Values Units Measured/PID
Ignition On Engine Off Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
APP PID 0 0 9.50 6.50 %
BPO PID NO NO NO NO YES/NO
CTO PID 0 1163 0 1416 RPM
ENG_TQ PID 0 8.30 -1.20 55.50 Nm
ENGLOAD PID 0 32.94 0 51.76 %
GCLTEMP GCLT Sensor 48 (118.40) 42 (107.60) 47 (116.60) 53 (127.40) DEG C (DEG F)
GTQ_OUT PID 0 -3 6.70 9 Nm
G_INV_V PID 285.90 290.40 284.20 287.80 VOLTS
G_PHTMP PID 47 (116.60) 40 (104) 50 (122) 55 (131) DEG C (DEG F)
G_SPEED PID 0 4111 -3617 -6213 RPM
HV_AMP PID 1300 -260 -700 -20.96 mA
HVBAT_V PID 285 288.50 282 285 VOLTS
IGN_STRT/RUN PID NO NO NO NO YES/NO
IGN_SW Ignition Switch YES YES YES YES YES/NO
I_SDN PID NO RAPID SHUTDOWN NO RAPID SHUTDOWN NO RAPID SHUTDOWN NO RAPID SHUTDOWN MODE
MCLTEMP MCLT Sensor 39 (102.20) 31 (87.80) 48 (118.40) 53 (127.40) DEG C (DEG F)
M_INV_V PID 285.90 290.30 281 268.30 VOLTS
M_PHTMP PID 45 (113) 37 (98.60) 47 (116.60) 52 (125.60) DEG C (DEG F)
M_SPEED PID 0 0 3678 6380 RPM
OUTDR_TMP PID 24 (75.20) 24 (75.20) 24 (75.20) 24 (75.20) DEG C (DEG F)
PRNDL_T PID P P D D POSITION
TOT TOT Sensor 46 (114.80) 36 (96.80) 48 (118.40) 50 (122) DEG C (DEG F)
TQ_DSD PID 0 0 14 68 Nm
VEHMODE PID POWERUP DRIVING DRIVING DRIVING MODE
VSS PID 0 0 48 km/h (30 MPH) 89 km/h (55 MPH) km/h/MPH
SOBDMCOutputs Component/PID Only Measured/PID Values Units Measured/PID
Ignition On Engine Off Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
GENMODE PID TORQUE SPEED ENGINE STOP ENGINE STOP MODE
GTQ_CMD PID 0 -1.40 8.70 2.50 Nm
MECP MECS Pump OFF OFF ON ON ON/OFF
MTQ_CMD PID 0 -1.60 -2.10 -11.40 Nm
MTQ_OUT PID 0 -1.60 1.50 24.20 Nm
POWRPCK_STATE PID POWER PACK NOT AVAILABLE NON MOVING RUN POWER PACK AVAILABLE POWER PACK AVAILABLE MODE
SOBDMCOther Component/PID Only Measured/PID Values Units Measured/PID
Ignition On Engine Off Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
MAINPCM_V PID 13 13.75 13.75 13.75 VOLTS
VPWR_TCM PID 12.42 13.02 13.04 13.06 VOLTS
BECM Outputs PID Only PID Values PID
Ignition On Engine Off Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
BATT_CHAR PID 59.46 64.63 46.15 42.54 %
BAT_PACK VOLT PID 285.68 288.47 272.74 281.43 VOLTS
H_BATT_TEMP PID 26 (78.80) 25 (77) 31 (87.80) 29 (84.20) DEG C (DEG F)
