Output Shaft Internal Components

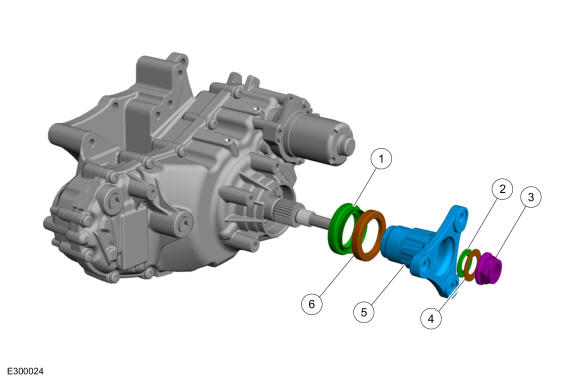

GFD515238Courtesy of FORD MOTOR COMPANY
Item Description
1 Output shaft seal
2 Ring seal
3 Flange lock nut
4 Spacer
5 Output shaft flange
6 Dust cover
