Transfer Case

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

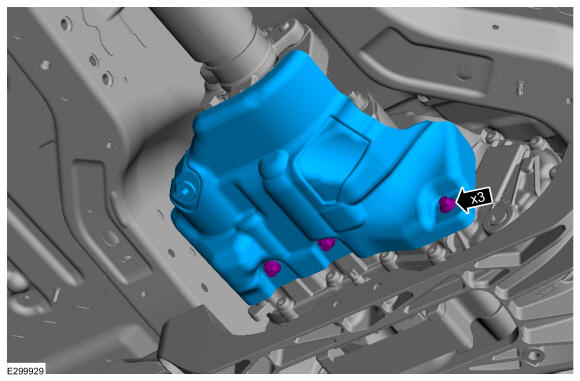

2. If equipped, remove the transfer case heat shield.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Take extra care not to damage the component.

   Position aside and support the rear driveshaft.

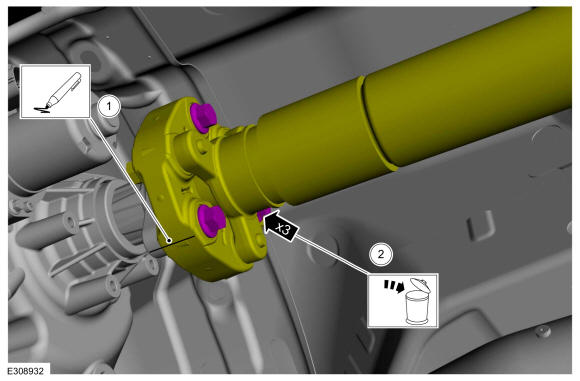

   1. Mark the driveshaft flex coupling to the transfer case flange.
   2. Remove and discard the driveshaft flex coupling to transfer case flange bolts.

   Courtesy of FORD MOTOR COMPANY

4. Remove the transmission support crossmember. Refer to: Transmission Support Insulator - 10R60 . Refer to: Transmission Support Insulator - 10R80 . Refer to: Transmission Support Insulator - 10R80 MHT .
5. NOTE: Make sure that the vent hose/valve is not blocked.

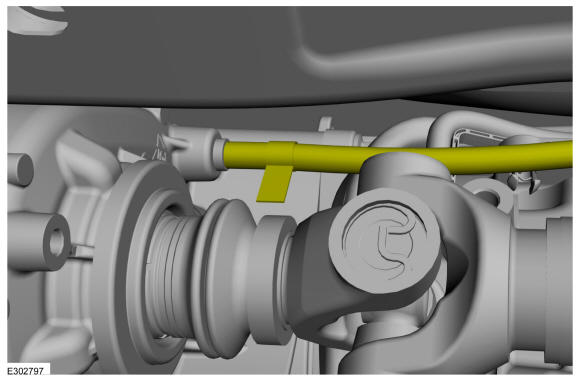

   Detach the transfer case vent hose and position aside.

   Courtesy of FORD MOTOR COMPANY

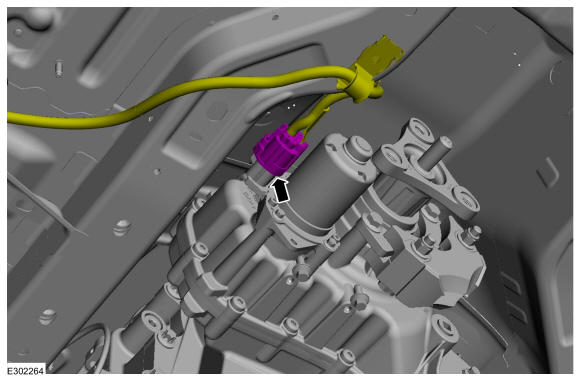

6. Disconnect the transfer case wiring connector.

   Courtesy of FORD MOTOR COMPANY

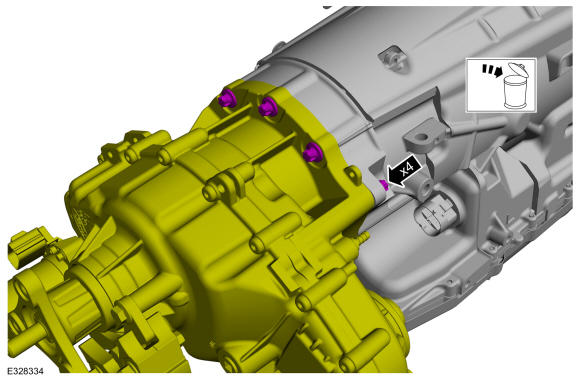

7. Remove and discard the transfer case mounting bolts.

   Courtesy of FORD MOTOR COMPANY

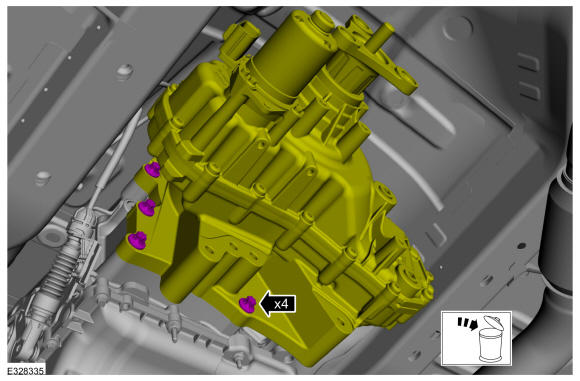

8. Remove and discard the transfer case mounting bolts.

   Courtesy of FORD MOTOR COMPANY

9. Disconnect the transfer case from the transmission output shaft and the driveshaft. Remove the transfer case from the vehicle.

   Courtesy of FORD MOTOR COMPANY

10. Remove and Install a new front driveshaft slip yoke boot. Refer to: Front Driveshaft Slip Yoke Boot .
