All-Wheel Drive (AWD) Module: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new all-wheel drive module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new all-wheel drive module after installation. Using a diagnostic scan tool, begin the PMI process for the all-wheel drive module following the onscreen instructions

LH side Refer to: Front Seat .
LH side Refer to: Front Scuff Plate Trim Panel .
NOTE: Seats removed for clarity.

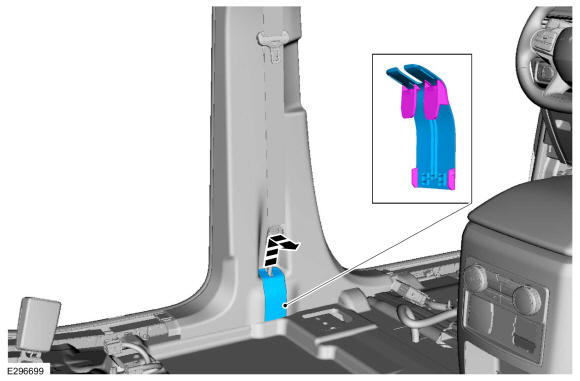

Release the tabs and remove the lower B-pillar trim panel cover.

Courtesy of FORD MOTOR COMPANY

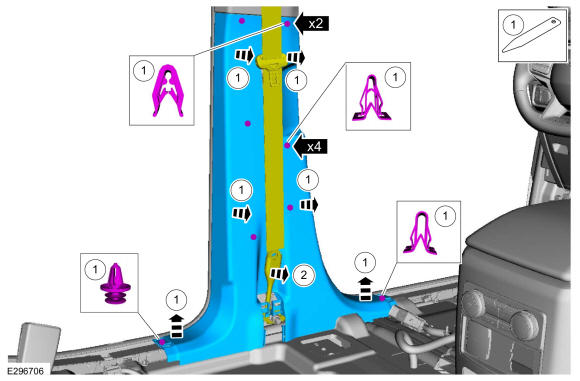

Remove the lower B-pillar trim panel.
1. Release the lower B-pillar trim panel clips. Use the General Equipment: Interior Trim Remover
2. Feed the front seatbelt retractor and pretensioner through the opening in the lower B-pillar trim panel.
Courtesy of FORD MOTOR COMPANY

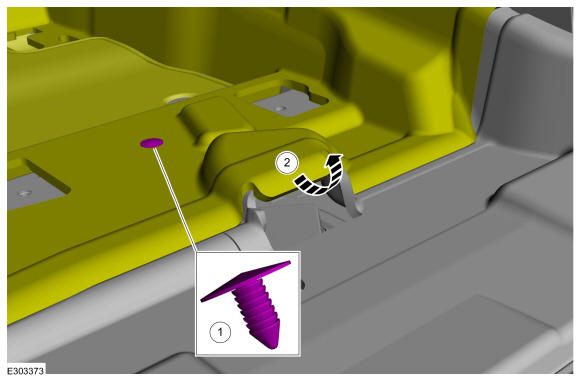

1. Release the clip
2. Detach the floor from the main floor and position aside.
Courtesy of FORD MOTOR COMPANY

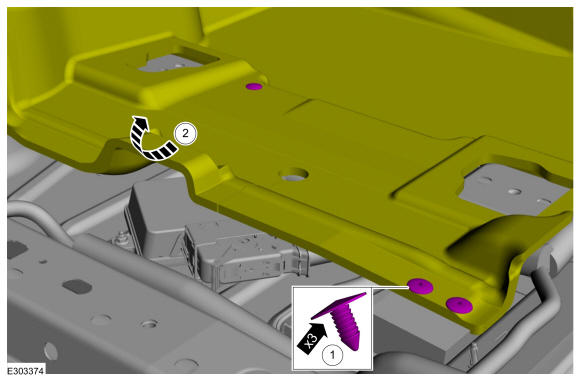

1. Release the clips
2. Detach the floor from the main floor and position aside.
Courtesy of FORD MOTOR COMPANY

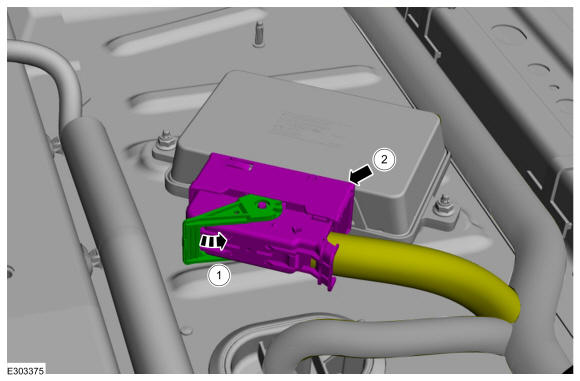

Remove the module.
1. Release the tab from the connector.
2. Disconnect the electrical connector from the module.
Courtesy of FORD MOTOR COMPANY

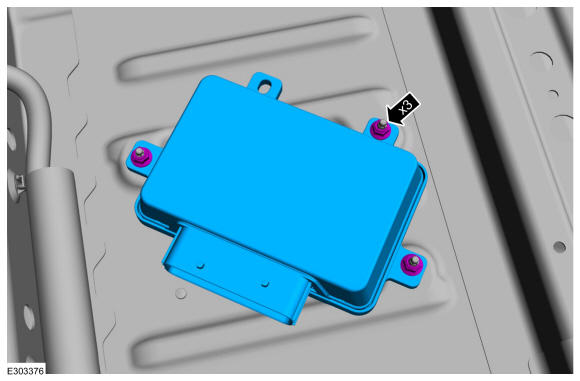

Remove the bolts and the AWD module.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
