Powertrain Control Module (PCM): Removal

All vehicles

1. NOTE: This step is only necessary when installing a new component.

   Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming

   Use the General Equipment: Ford Diagnostic Equipment

2. Refer to: Fender Splash Shield

   Vehicles without powertrain control module (PCM) security shield

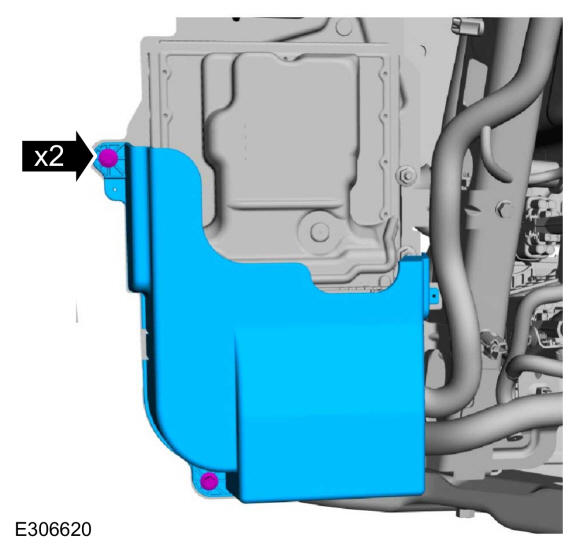

3. Remove the bolts and the PCM cover.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with powertrain control module (PCM) security shield

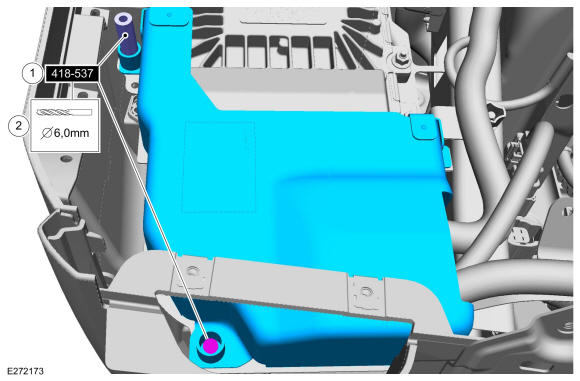

4. Use Suggested Tool: 418-537 Drill Bushing, Powertrain Control Module. Tool shown or a commercially available equivalent can be used. Use the General Equipment: 6 mm Drill Bit

   Courtesy of FORD MOTOR COMPANY

   All vehicles

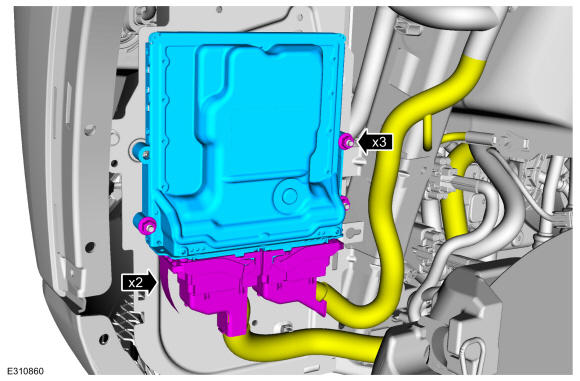

5. Disconnect the electrical connectors. Remove the retainers and the PCM.

   Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
