Removal And Installation: Horn: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover

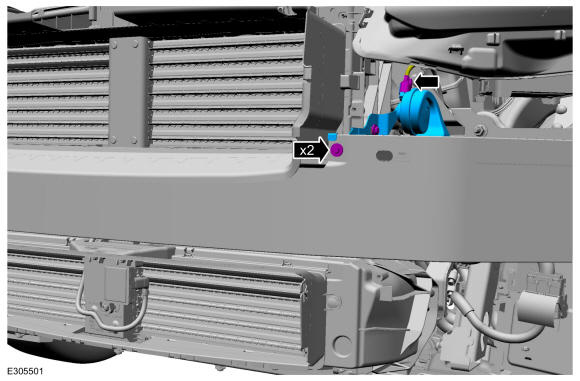

  2. Remove the bolts, disconnect the electrical connector and remove the horn.

    Torque

    : 93 lb.in (10.5 Nm)

GFD590547Courtesy of FORD MOTOR COMPANY
