Connector Repair Procedures

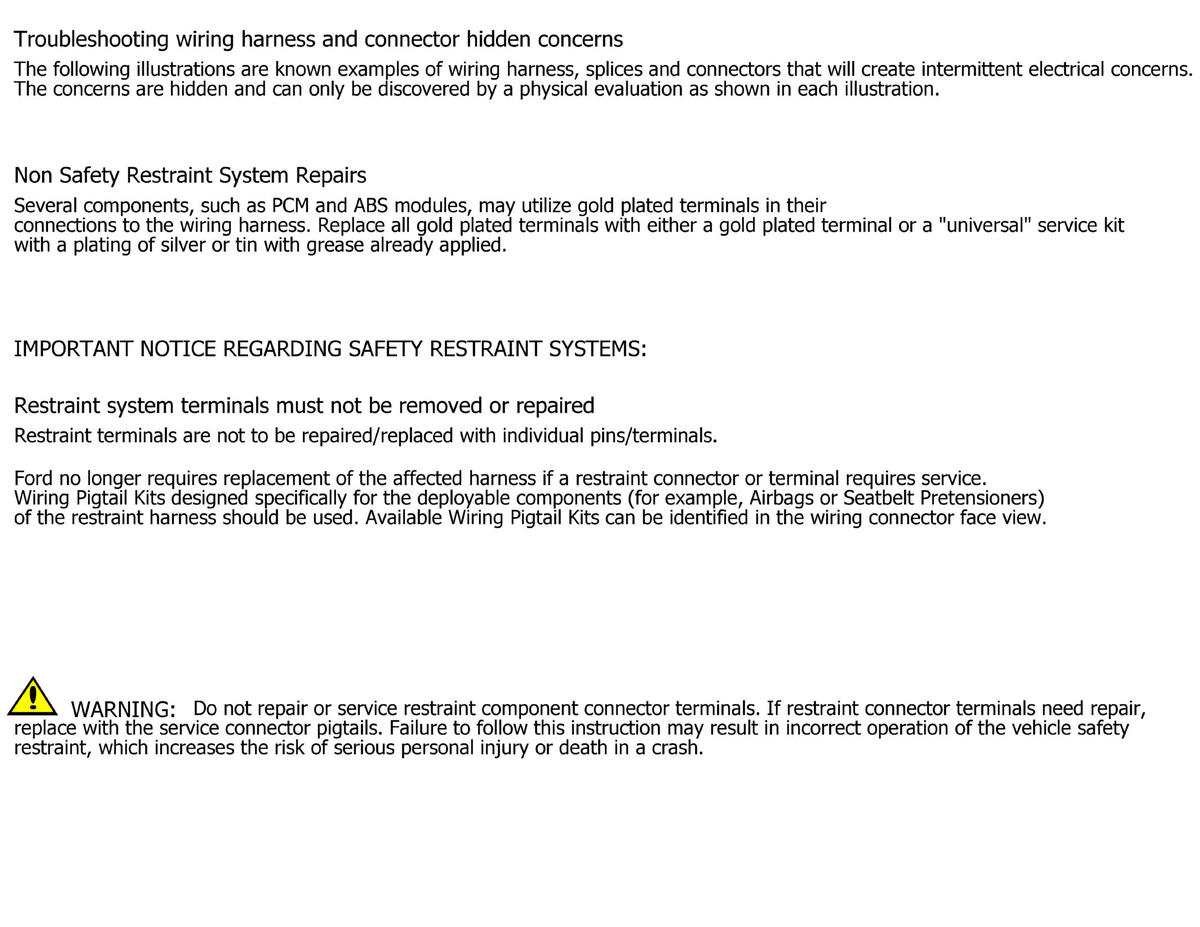

GFDWR137083Courtesy of FORD MOTOR COMPANY

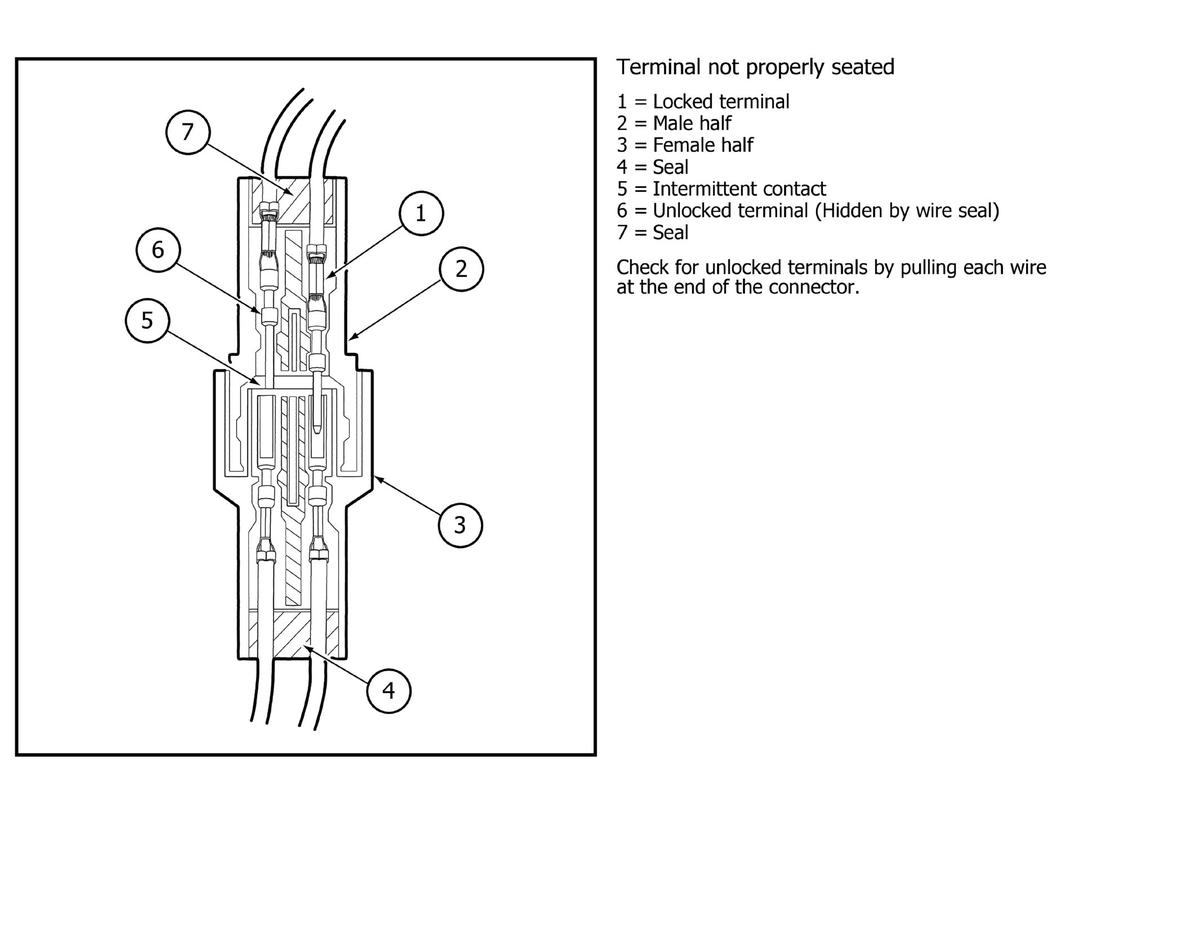

GFDWR137084Courtesy of FORD MOTOR COMPANY

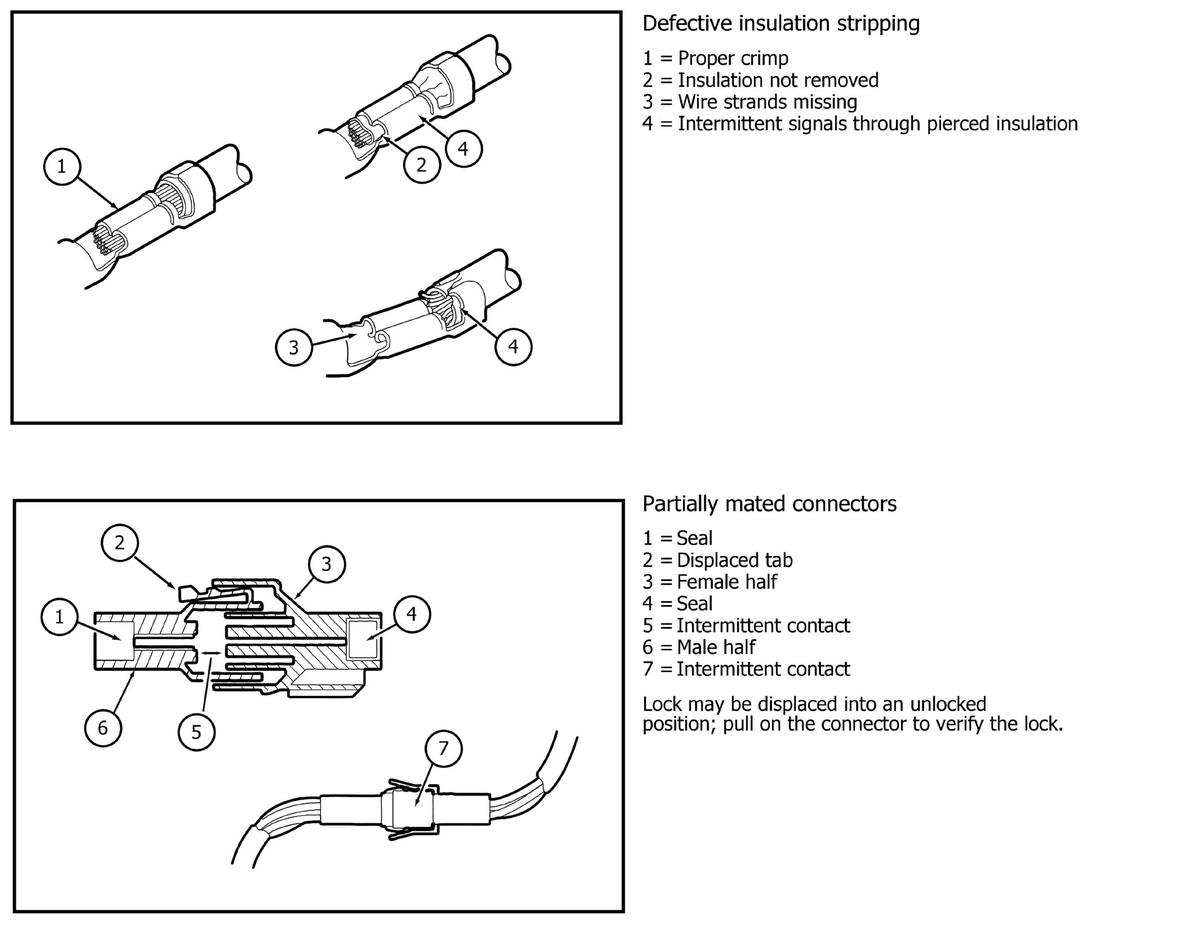

GFDWR137085Courtesy of FORD MOTOR COMPANY

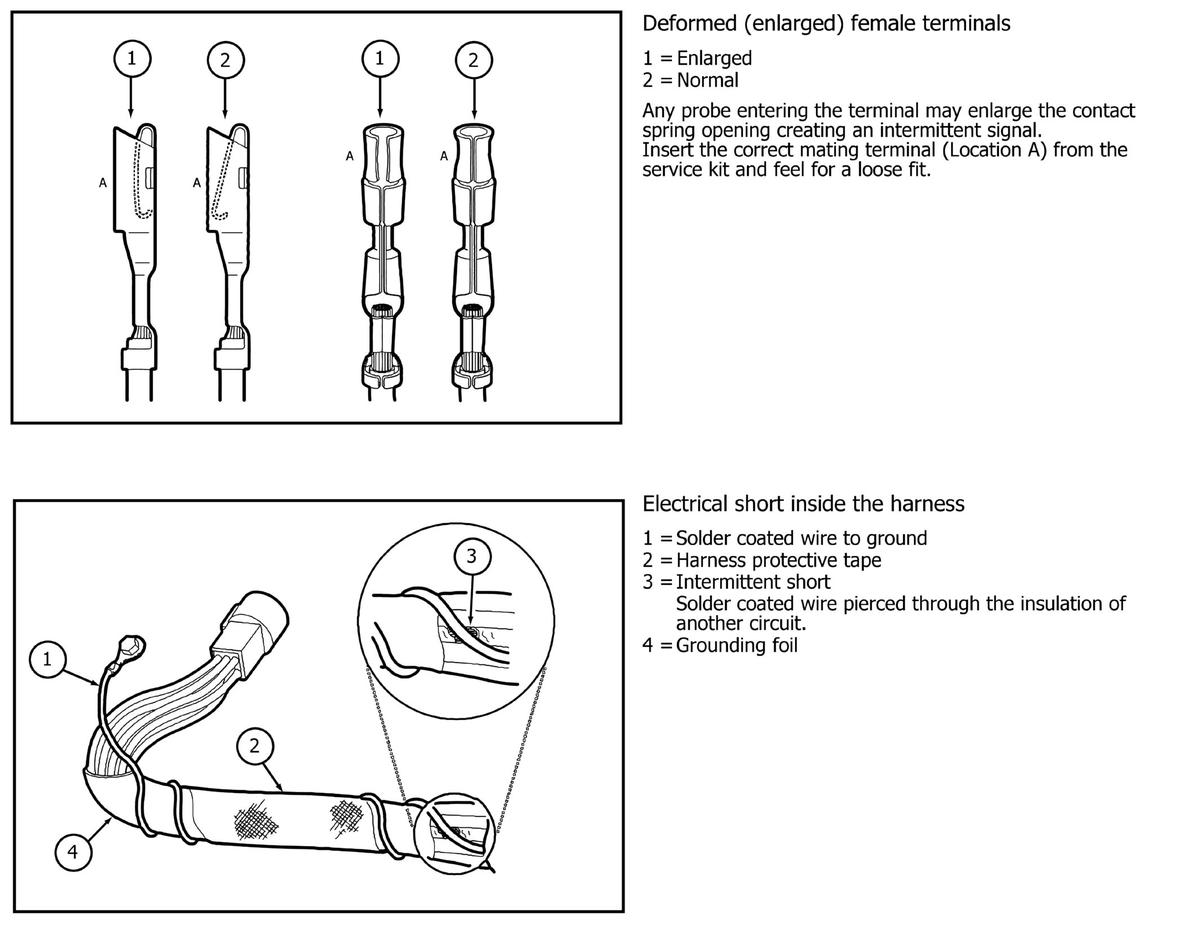

GFDWR137086Courtesy of FORD MOTOR COMPANY

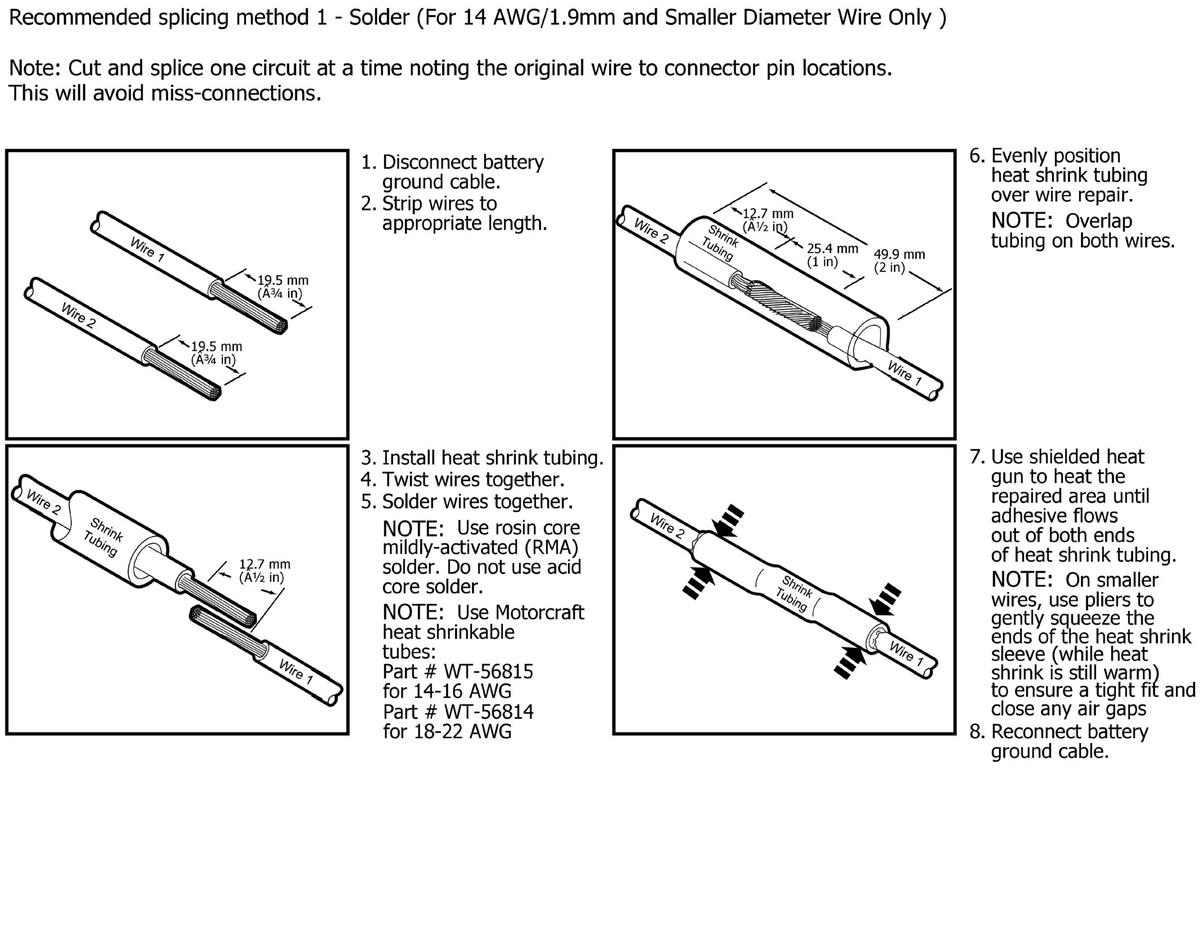

GFDWR137087Courtesy of FORD MOTOR COMPANY

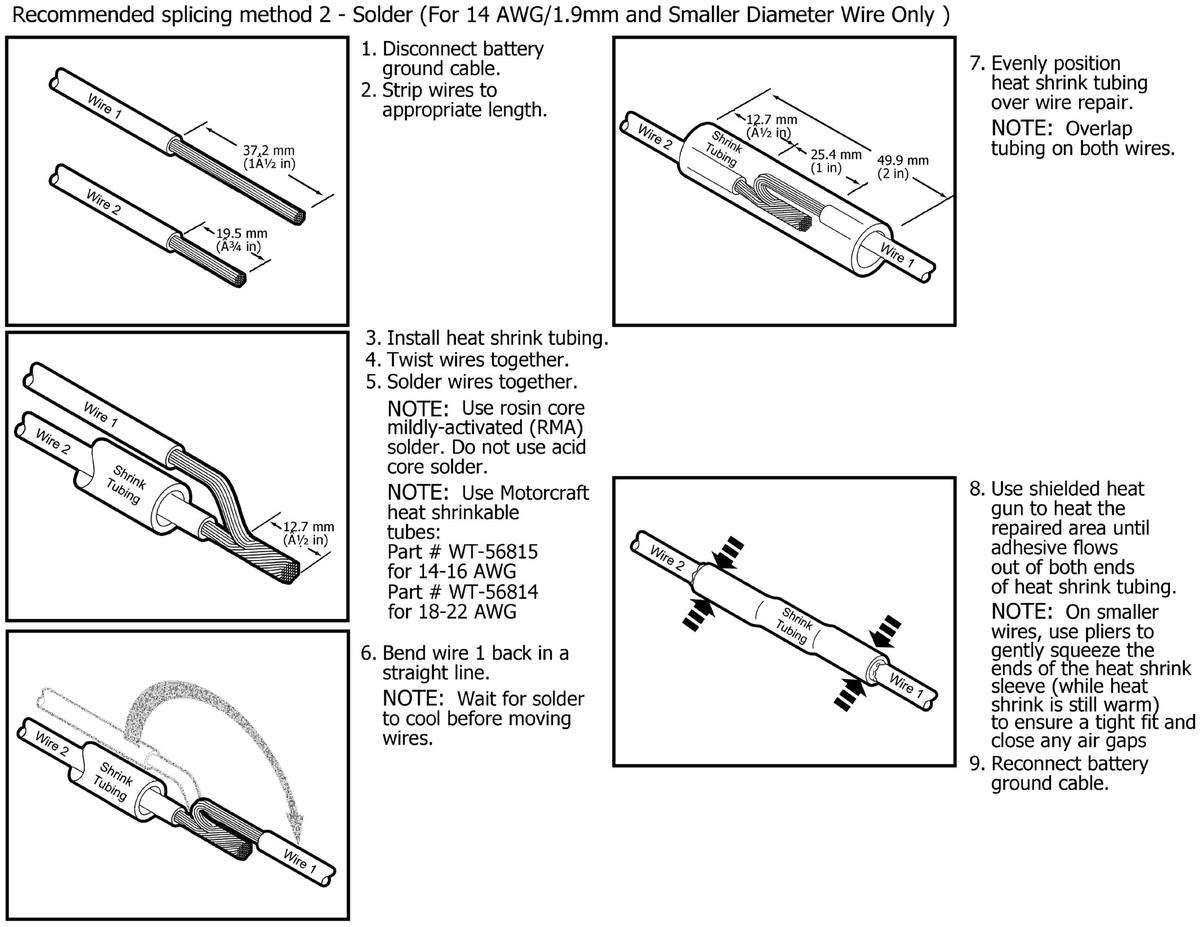

GFDWR137088Courtesy of FORD MOTOR COMPANY

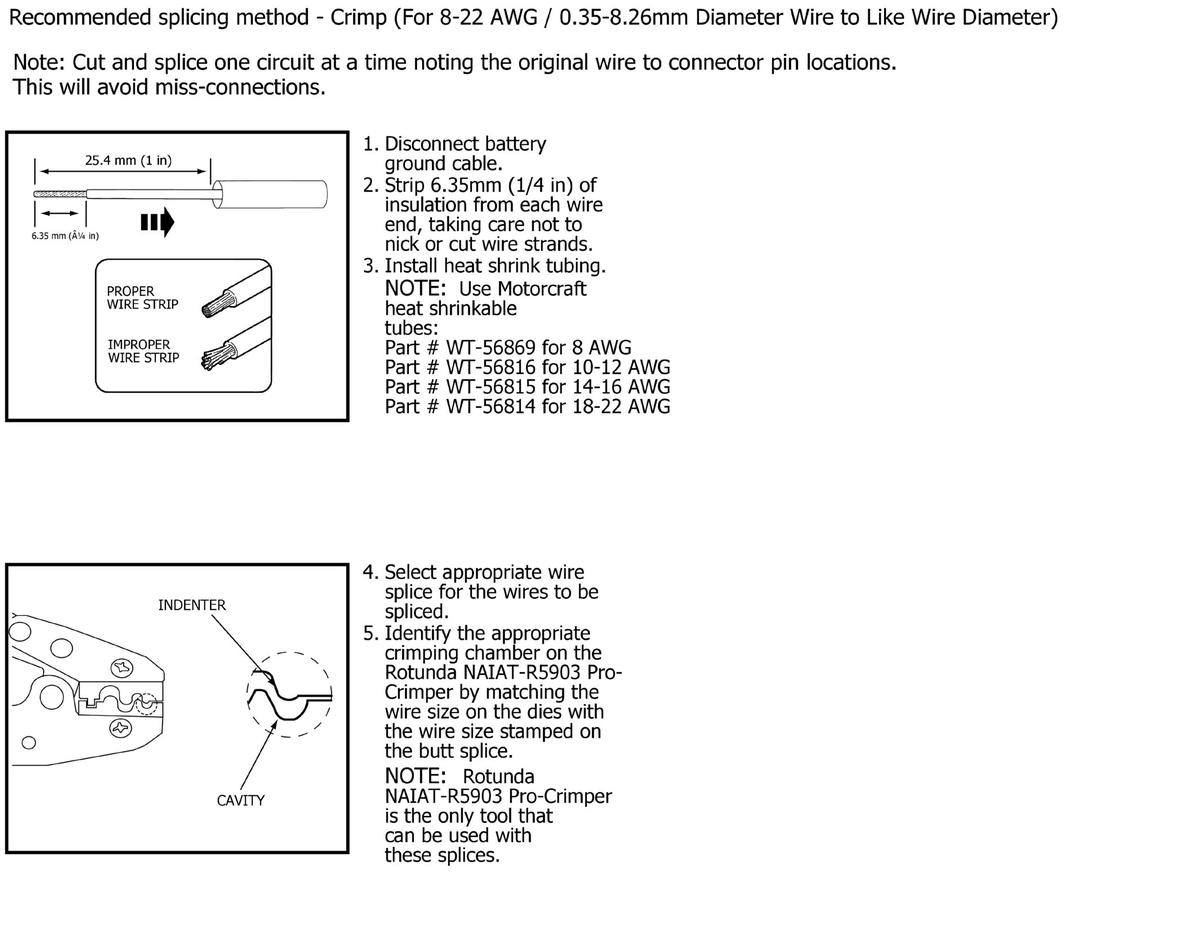

GFDWR137089Courtesy of FORD MOTOR COMPANY

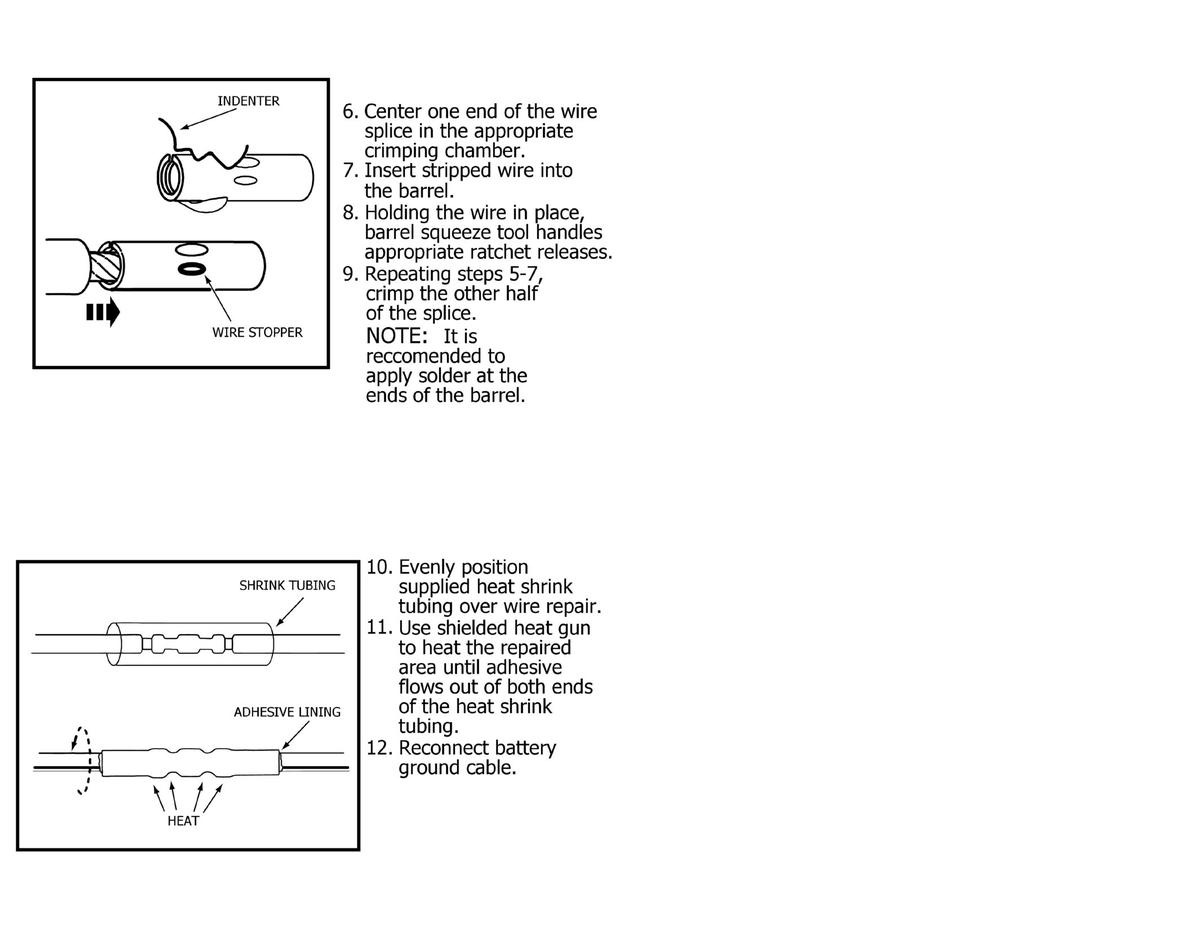

GFDWR137090Courtesy of FORD MOTOR COMPANY

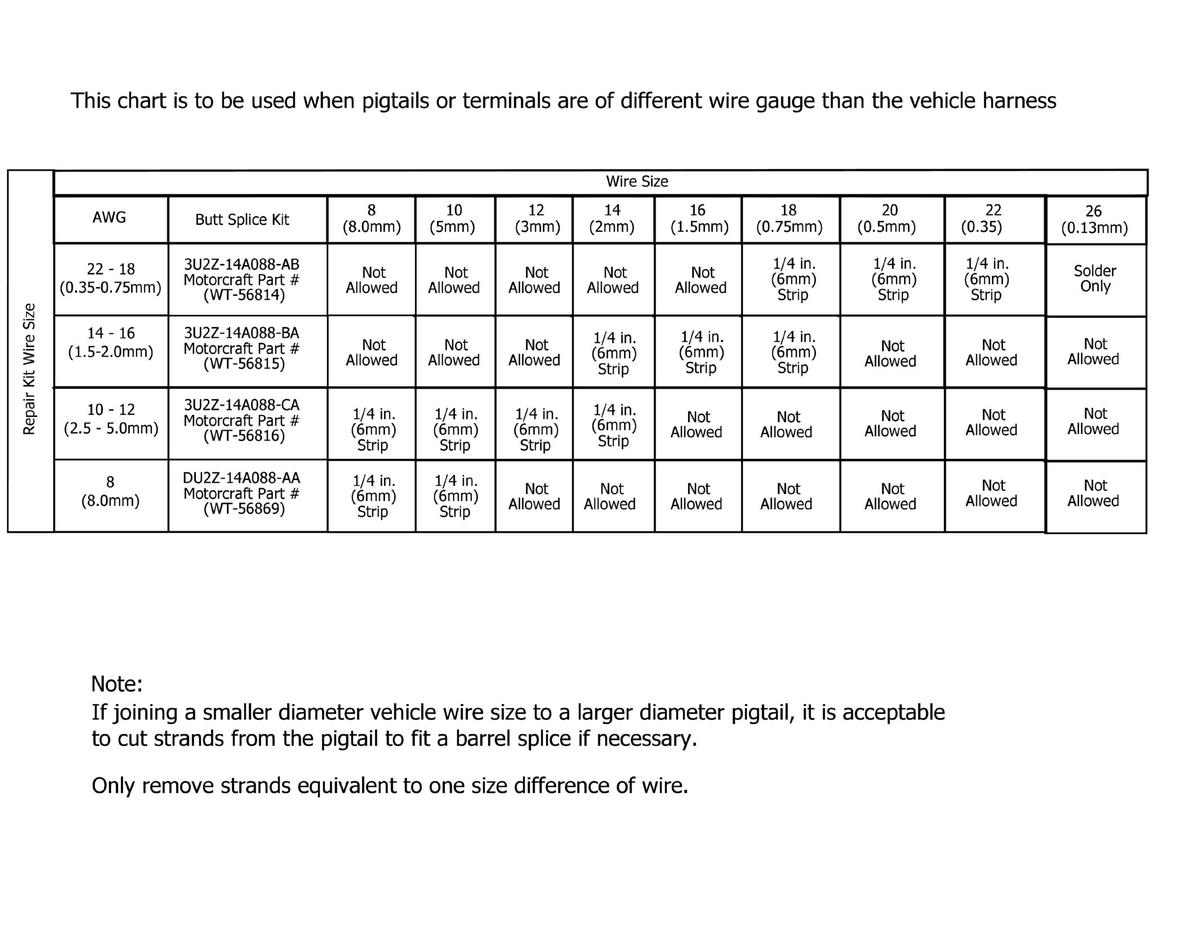

GFDWR137091Courtesy of FORD MOTOR COMPANY
