Front Head Restraint Guide Sleeve: Removal

NOTE: Driver seat shown in illustration, passenger seat similar.

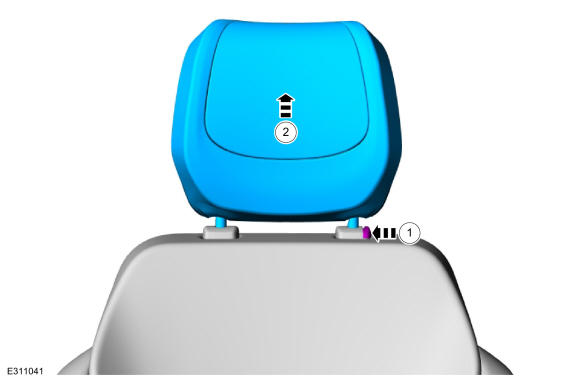

  1. Remove the front head restraint.

    1. Depress the locking tab.
    2. Remove the front head restraint.

    GFD591552Courtesy of FORD MOTOR COMPANY

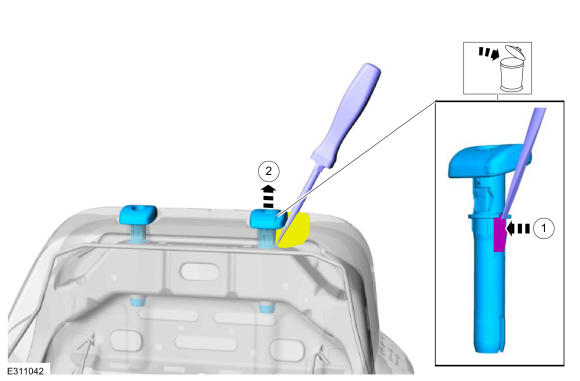

  2. Remove and discard the front head restraint guide sleeve(s).

    1. Release the tab.
    2. Remove and discard the front head restraint guide sleeve(s).

      Use the General Equipment: Flat-Bladed Screwdriver

GFD591553Courtesy of FORD MOTOR COMPANY
