Connector Repair Procedures

GFDWR94273Courtesy of FORD MOTOR COMPANY

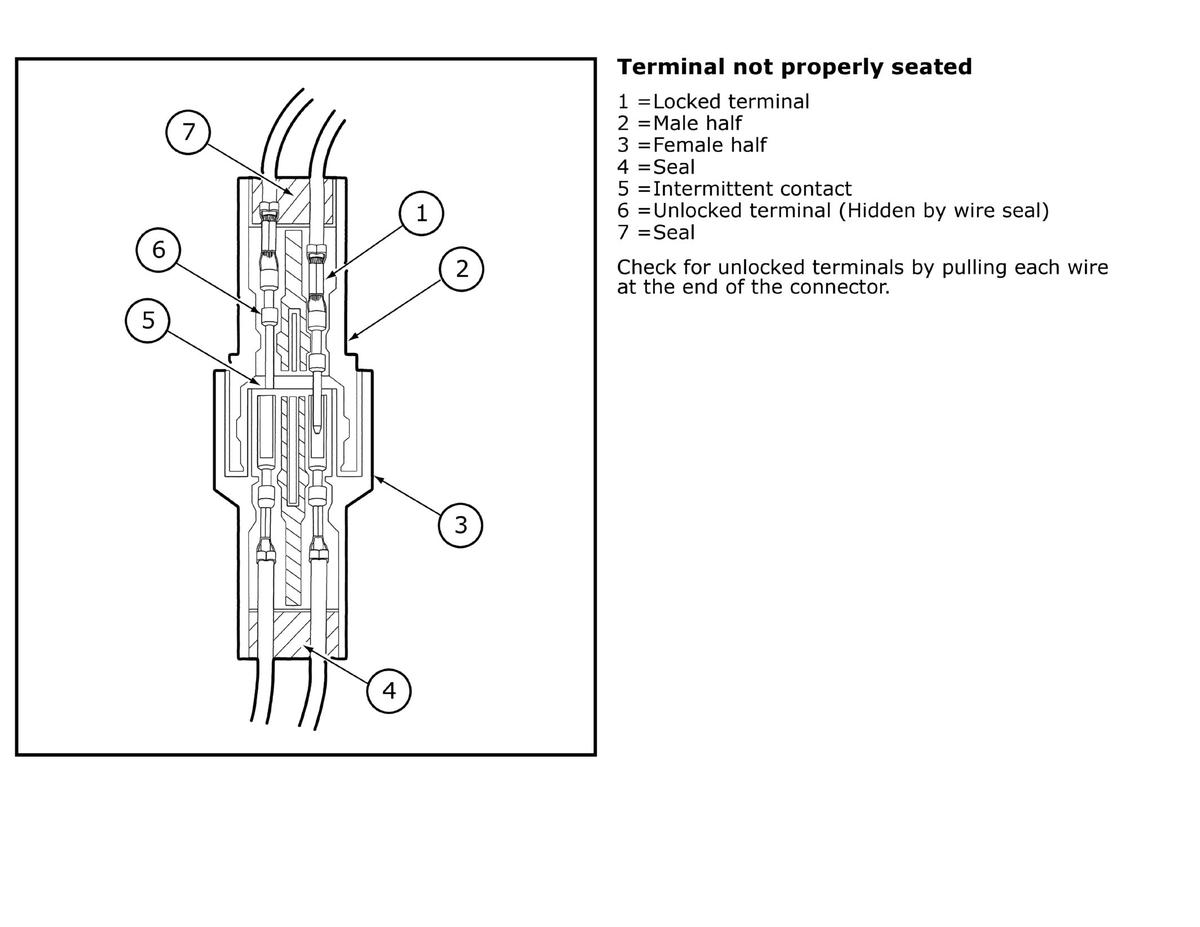

GFDWR94267Courtesy of FORD MOTOR COMPANY

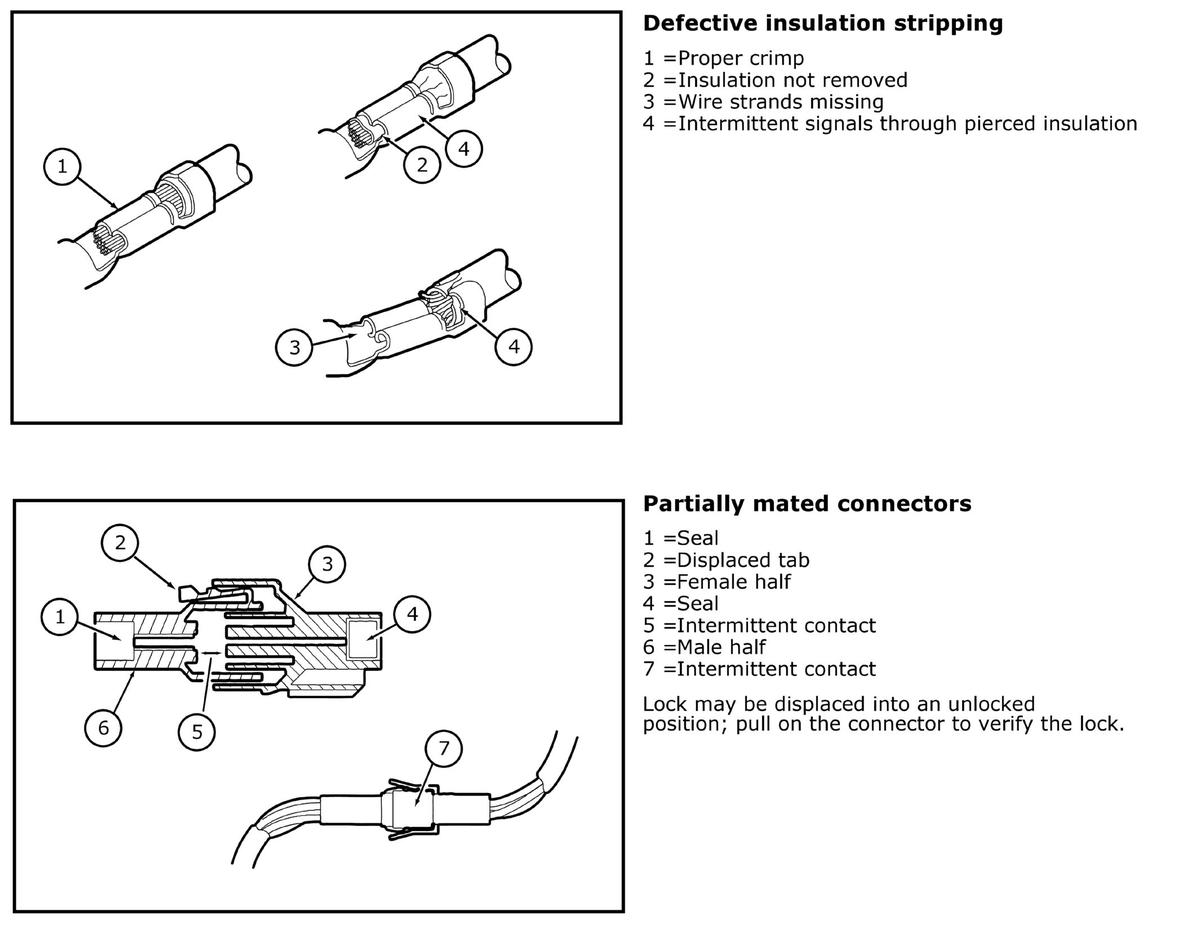

GFDWR94271Courtesy of FORD MOTOR COMPANY

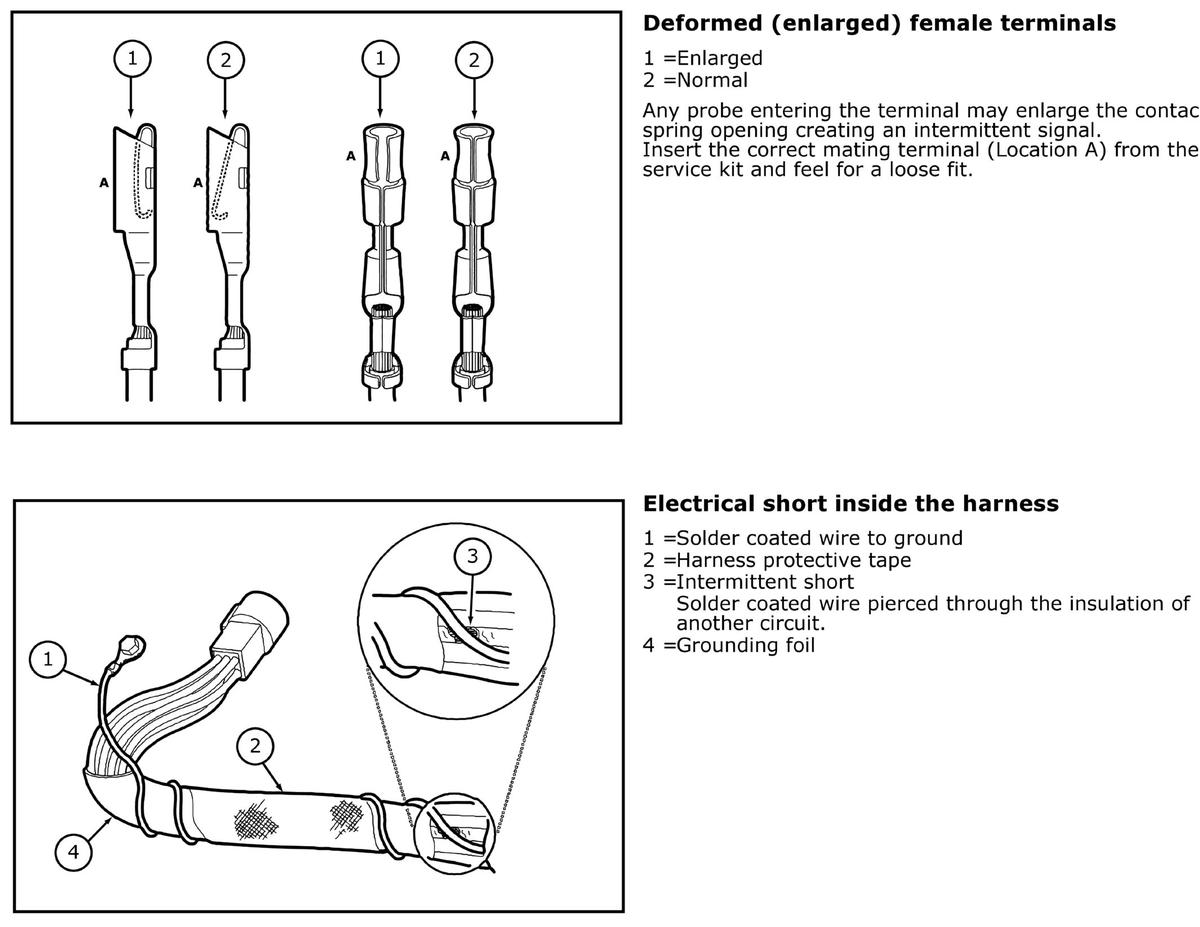

GFDWR94274Courtesy of FORD MOTOR COMPANY

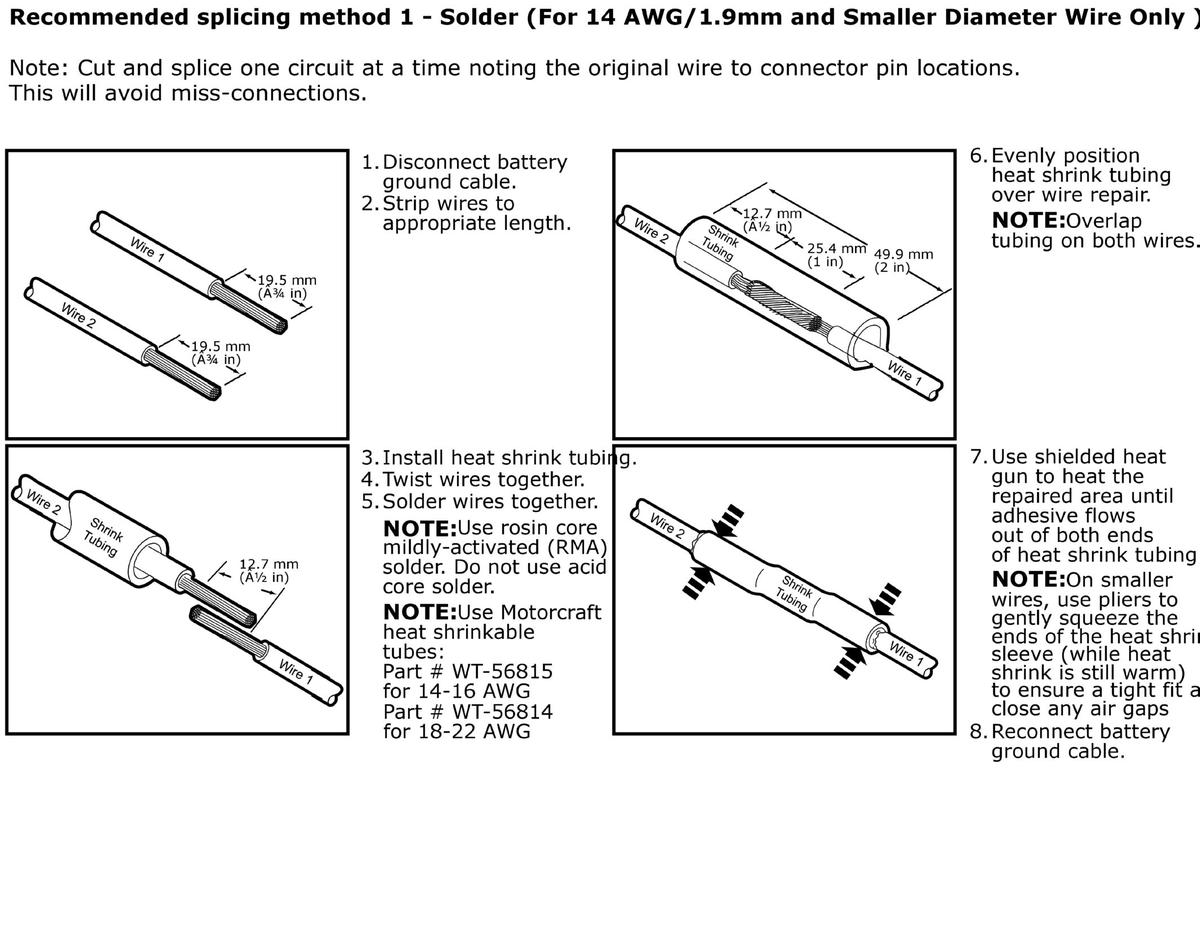

GFDWR94275Courtesy of FORD MOTOR COMPANY

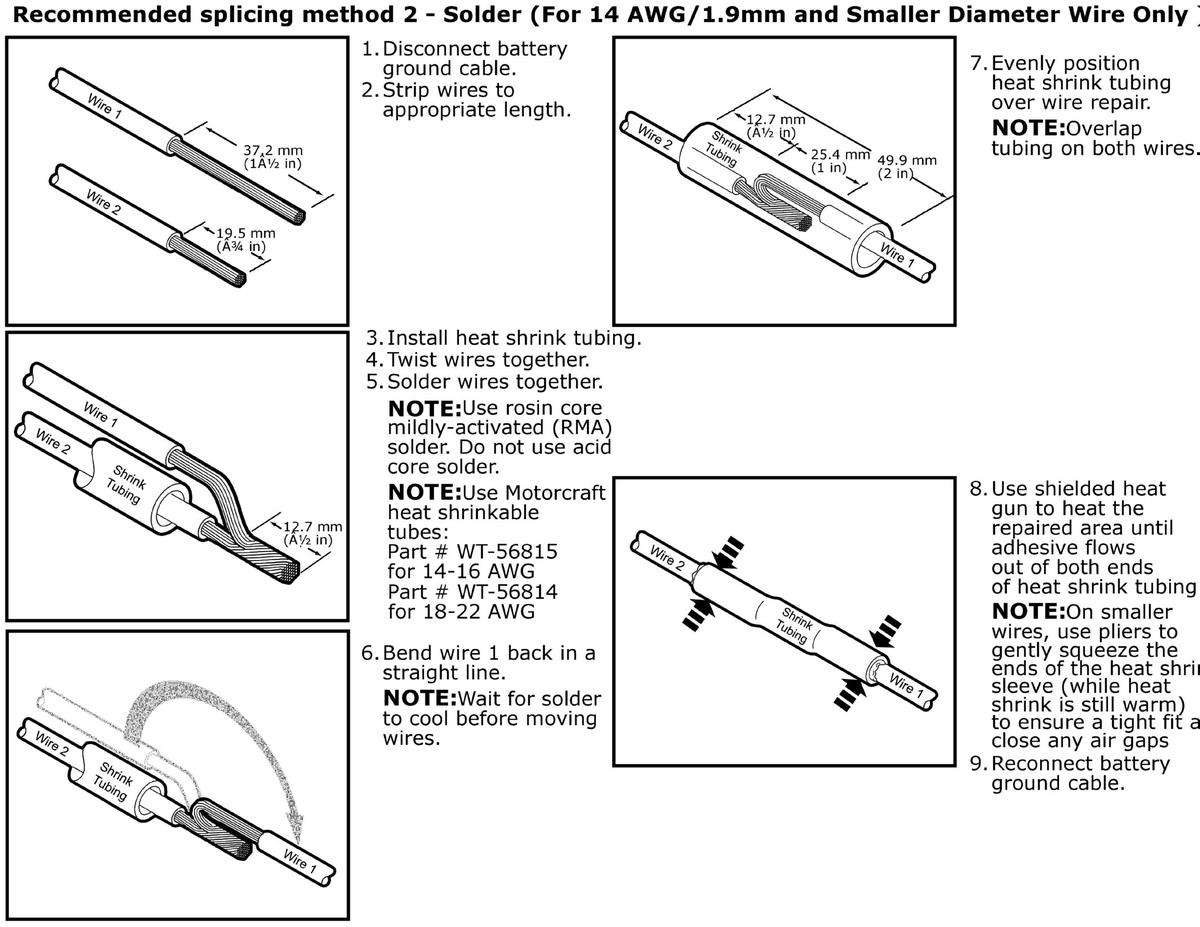

GFDWR94272Courtesy of FORD MOTOR COMPANY

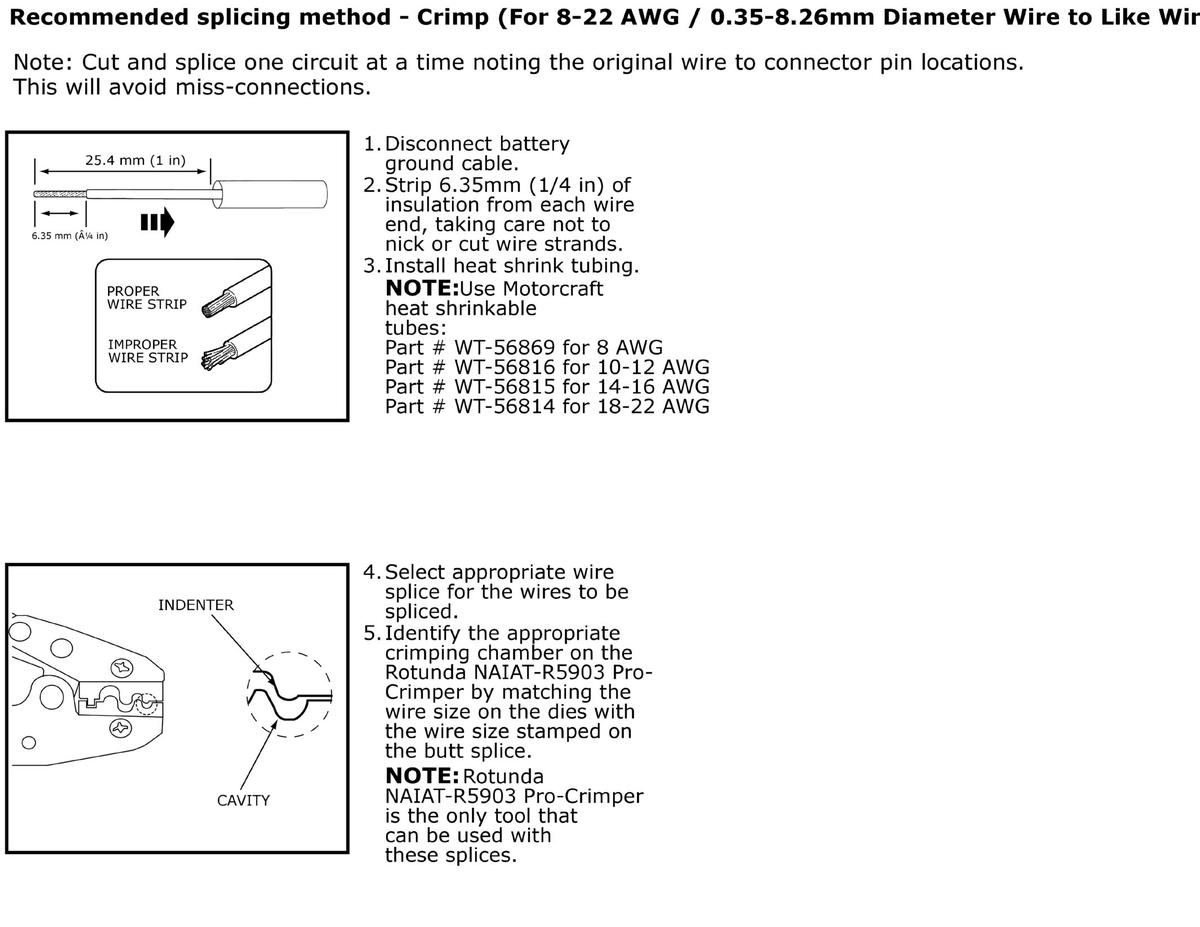

GFDWR94270Courtesy of FORD MOTOR COMPANY

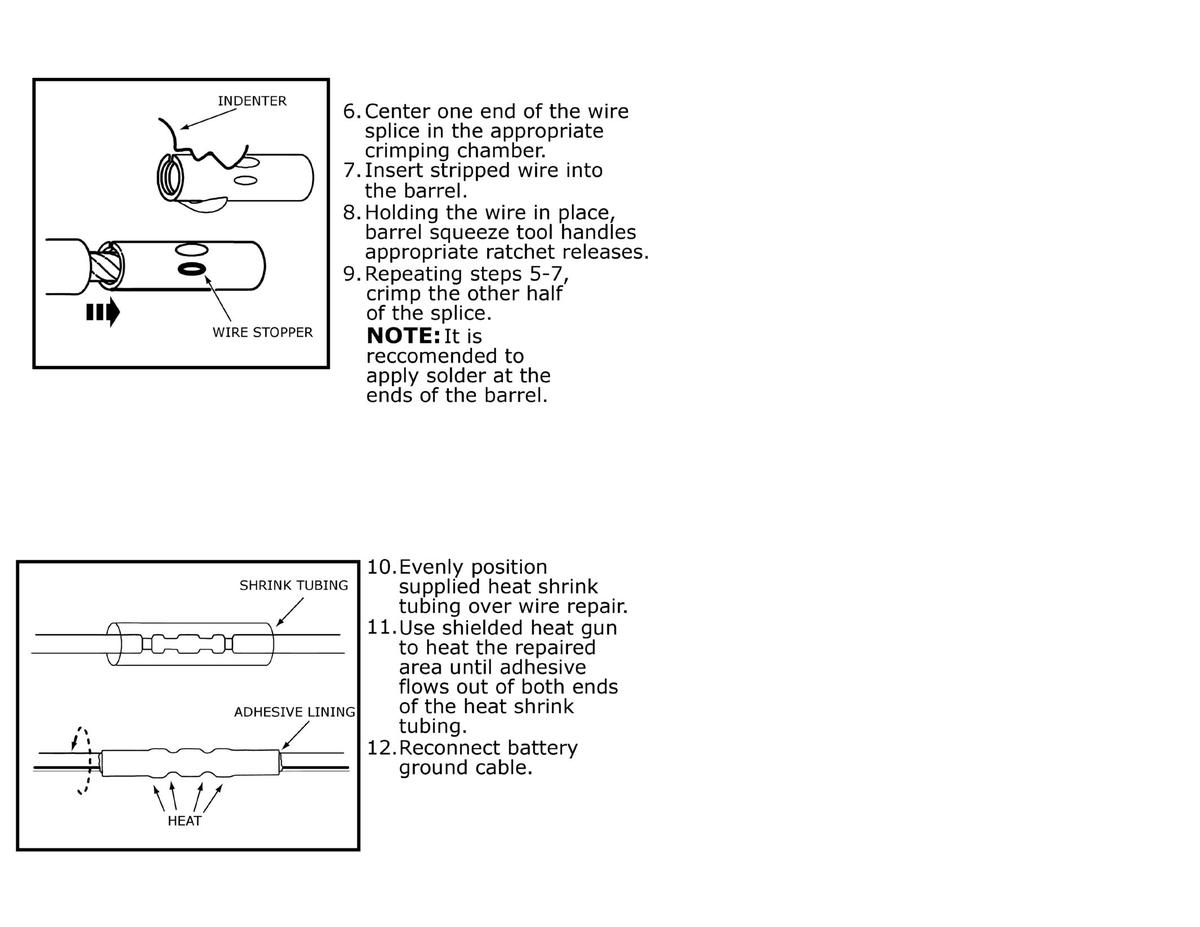

GFDWR94269Courtesy of FORD MOTOR COMPANY

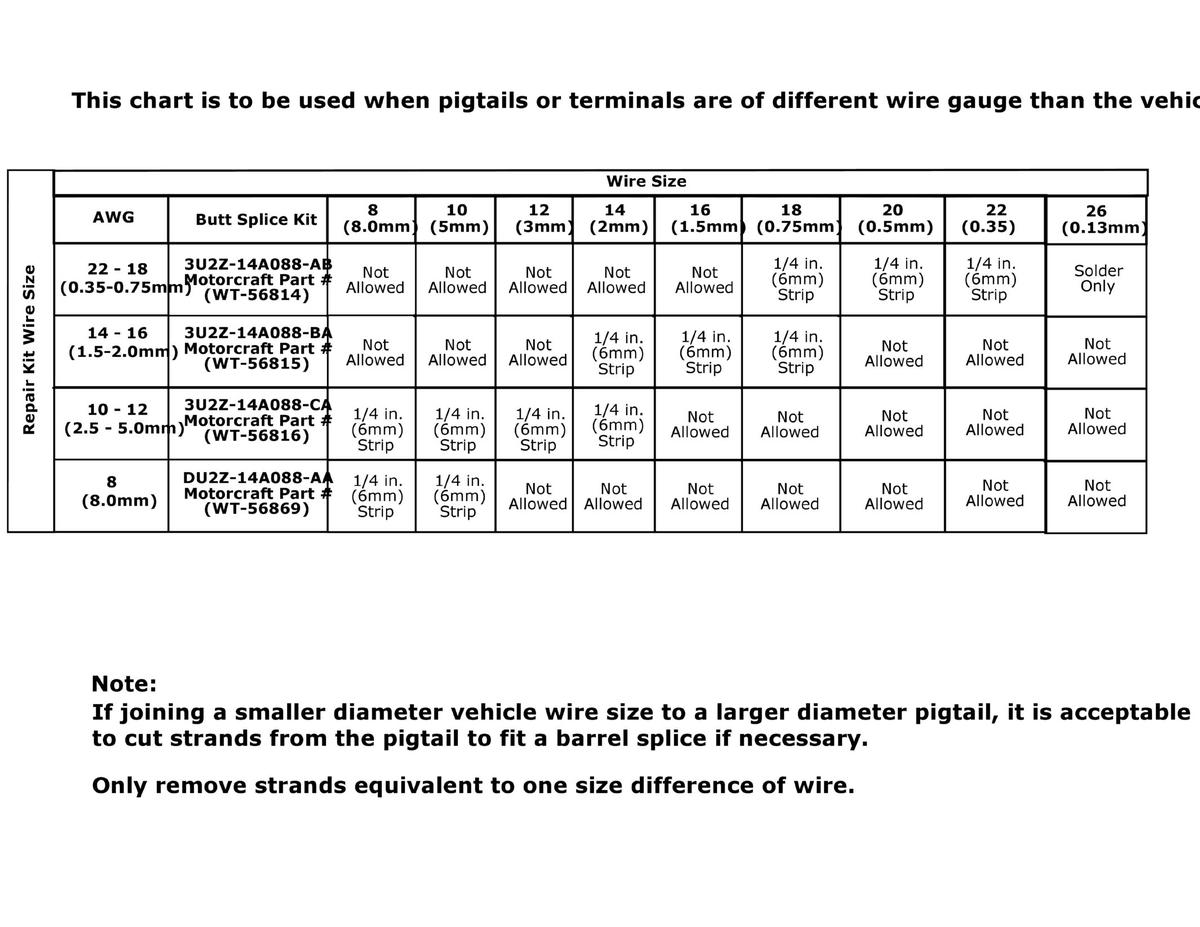

GFDWR94268Courtesy of FORD MOTOR COMPANY
