Pinpoint Tests AX: Intake Throttle: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: TACM+, TACM-, TP, SIGRTN and VREF
intake throttle actuator (9E926)
PCM (12A650)

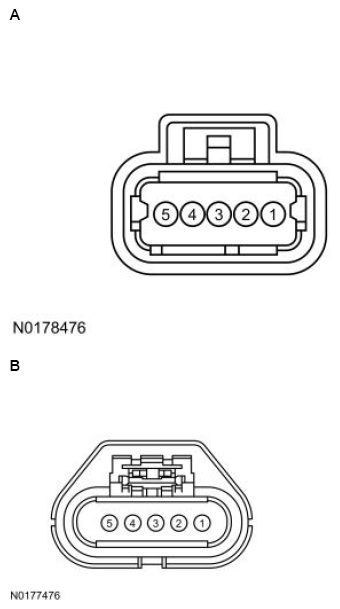

Fig 1: Intake Throttle Actuator Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit Connect	A	2 1 4 3 5	TACM- TACM+ TP SIGRTN VREF
All other vehicles	B	2 1 3 4 5	TACM- TACM+ TP SIGRTN VREF

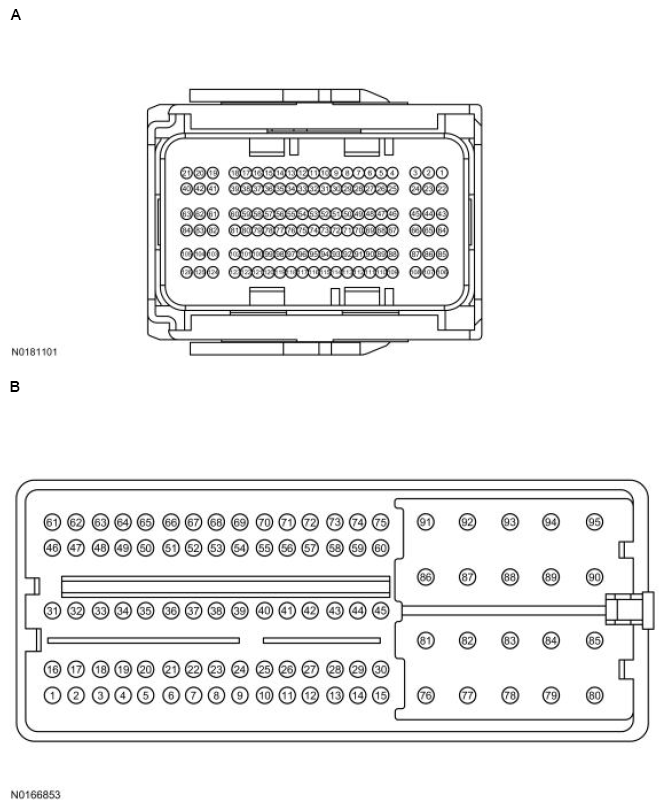

Fig 2: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-150	A	24 23 15	TACM- TACM+ TP
Transit Connect	B	83 78 56	TACM- TACM+ TP
All other vehicles	A	3 2 122	TACM- TACM+ TP
