Pinpoint Tests ME: Fuel Pump Control: Introduction

WARNING: CONTACT WITH EXPOSED FUEL INJECTOR WIRING, IF ENERGIZED, MAY RESULT IN ELECTRIC SHOCK. USE CARE WHEN WORKING ON OR AROUND ENERGIZED FUEL INJECTOR WIRING. FUEL INJECTOR WIRING SUPPLIES HIGH VOLTAGE TO OPERATE THE FUEL INJECTORS. FAILURE TO FOLLOW THIS INSTRUCTION MAY RESULT IN SERIOUS PERSONAL INJURY.

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: FPCV, FVCV, VBPWR and VPWR
fuel volume control valve (9J307)
fuel pressure control valve (9C968)
PCM (12A650)

Fig 1: Fuel Pressure Control Valve Solenoid Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	FPCV (Fuel Pressure Control Valve)
1	VPWR (Vehicle Power)

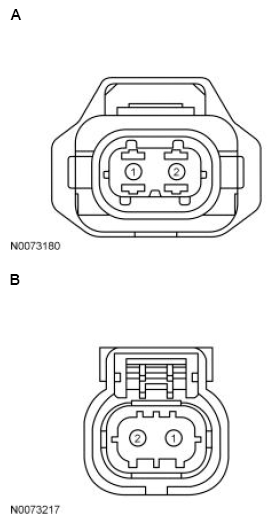

Fig 2: Fuel Volume Control Valve Solenoid Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit Connect	A	2 1	FVCV VBPWR
All other vehicles	B	2 1	FVCV VPWR

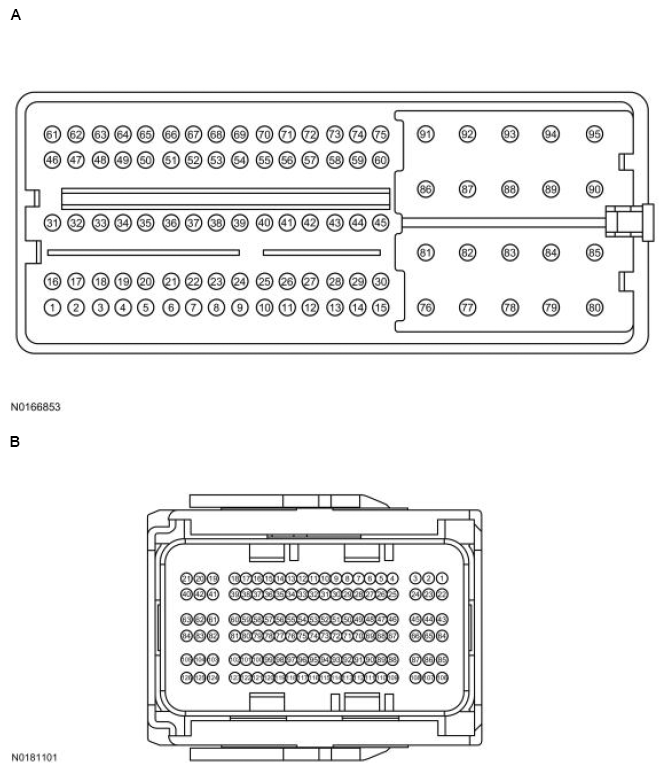

Fig 3: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit Connect	A	76 81	FPCV FVCV
All other vehicles	B	43 1	FPCV FVCV
