Pinpoint Tests RM: Reductant Dosage Control Module: Introduction
This pinpoint test is intended to diagnose the following:
- communication concerns
- harness circuits: B+, PWRGND, RDCMRC and VPWR
- reductant dosage control module (5H298)

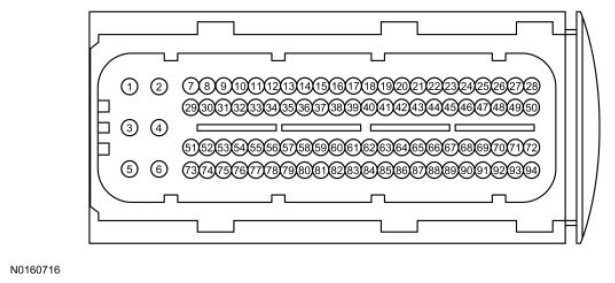

Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
| 1, 3, 5 |
VPWR (Vehicle Power) |
| 89 |
RDCMRC (Reductant Dosage Control Module Relay Control) |

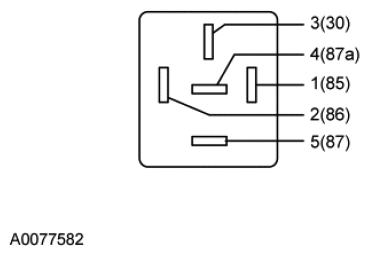

Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
| 5 |
VPWR (Vehicle Power) |
| 2 |
RDCMRC (Reductant Dosage Control Module Relay Control) |
| 1, 3 |
B+ (Battery Positive Voltage) |
