Disassembly And Assembly Of Subassemblies: Piston: Disassembly

NOTE: This procedure is considered a major service repair. For Ford warranty coverage, the vehicle must be returned to the Multimatic vehicle assembly and repair facility.

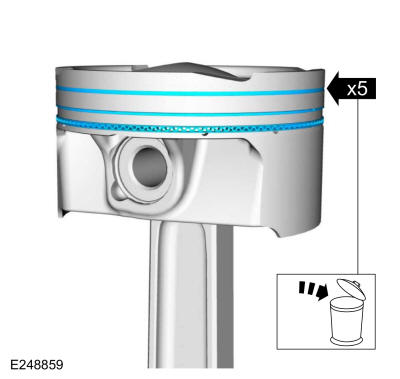

Remove the piston rings and discard.

Courtesy of FORD MOTOR COMPANY

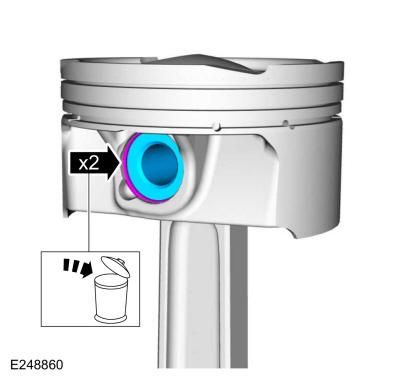

- Remove the piston pin retainers and discard.
- Remove the piston pin.
Courtesy of FORD MOTOR COMPANY
NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod for reassembly.

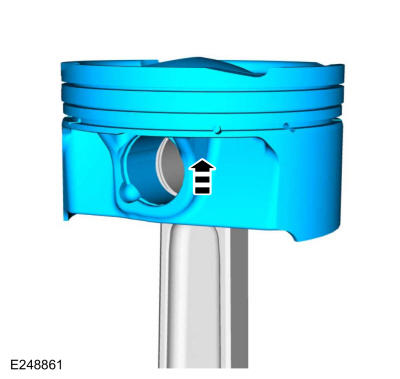

Remove the piston from the connecting rod.

Courtesy of FORD MOTOR COMPANY

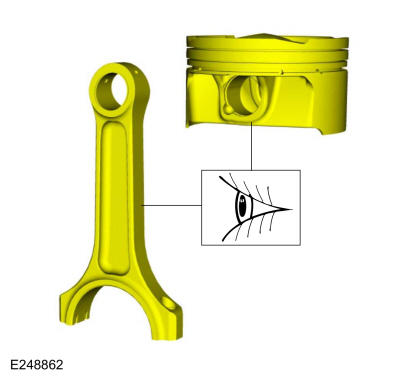

Inspect the piston and connecting rod. Refer to: Piston Inspection .

Courtesy of FORD MOTOR COMPANY
