Timing Chain: Installation

LH timing chain

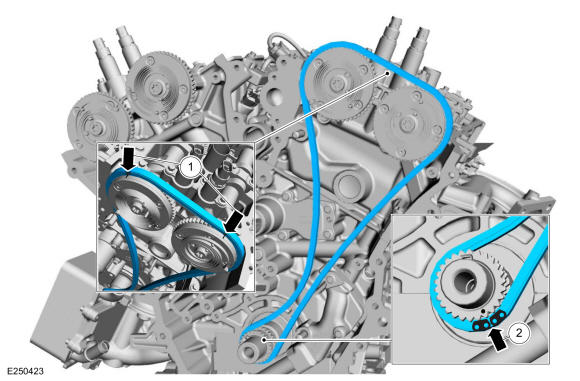

1. 1. Install the LH timing chain with the single colored links aligned with the timing marks on the VCT units.
   2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

   Courtesy of FORD MOTOR COMPANY

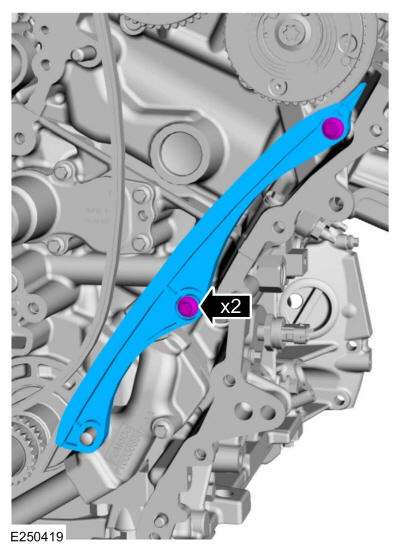

2. Install the LH timing chain guide and bolts.

   Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

3. Install the LH timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

4. 1. Position the tensioner in a soft-jawed vise.
   2. Using pliers, squeeze the ends of the ratchet wire clip together.
   3. Using the soft-jawed vise, compress the plunger to the reset position.
   4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.

   Courtesy of FORD MOTOR COMPANY

5. • Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
   • Install the bolt and stud bolt.

     Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

   • Remove the locking pin.

   Courtesy of FORD MOTOR COMPANY

6. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

   Courtesy of FORD MOTOR COMPANY

   RH timing chain

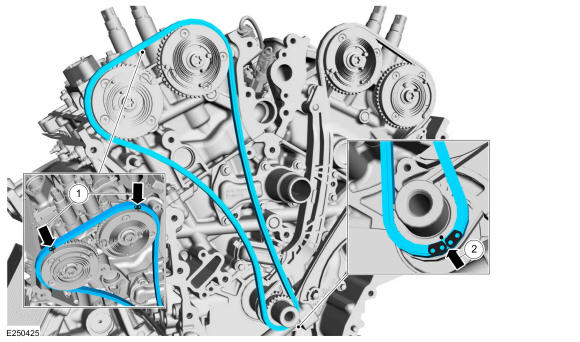

7. 1. Install the RH timing chain with the single colored links aligned with the timing marks on the VCT units.
   2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

   Courtesy of FORD MOTOR COMPANY

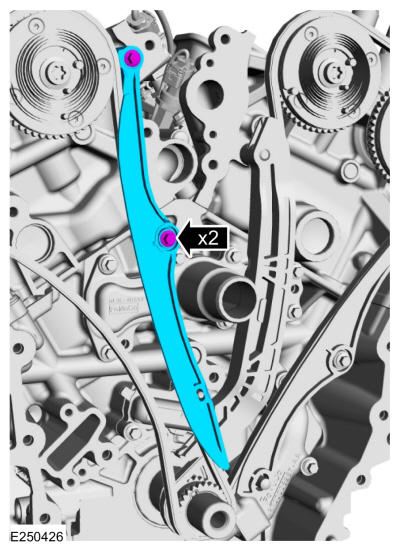

8. Install the RH timing chain guide and bolts.

   Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

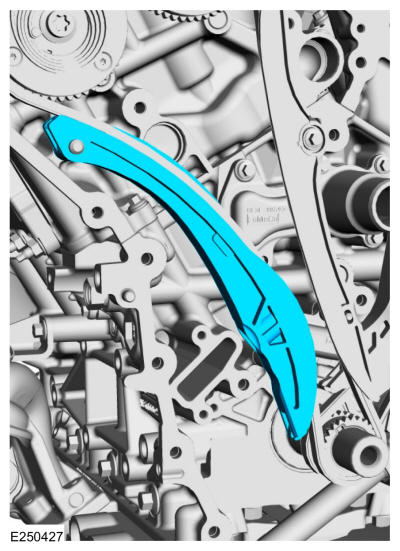

9. Install the RH timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

10. 1. Position the tensioner in a soft-jawed vise.
    2. Using pliers, squeeze the ends of the ratchet wire clip together.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.

    Courtesy of FORD MOTOR COMPANY

11. • Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    • Install the bolts.

      Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

    • Remove the locking pin.

    Courtesy of FORD MOTOR COMPANY

12. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

    All timing chains

13. Install the engine front cover. Refer to: Engine Front Cover  .
