Spark Plugs: Installation
-
NOTE: If a spark plug is dropped, internal damage may result and the spark plug must be discarded. The use of a damaged spark plug may cause cylinder misfire resulting in engine damage.

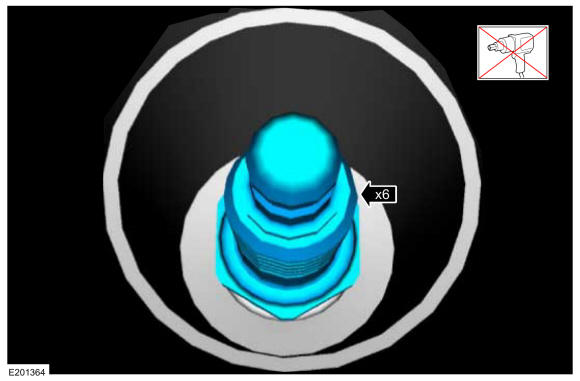

Install and tighten the spark plugs.
Torque: 133 lb.in (15 Nm)
- Install the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
