Accelerator Pedal: Removal
WARNING: This page is about a different car, the 2017 Ford GT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.
-

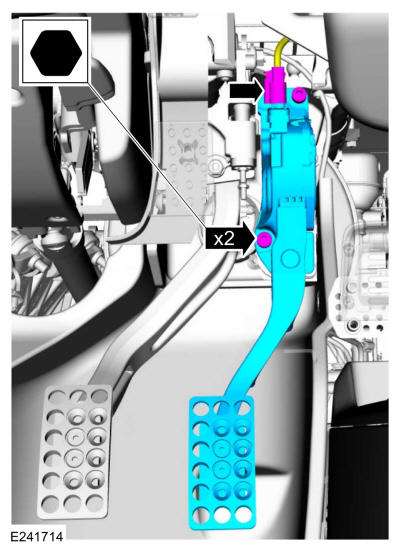

- Disconnect the accelerator pedal sensor electrical connector.
- Remove the bolts and the accelerator pedal.
Torque: 44 lb.in (5 Nm)
