Tie Rod: Installation

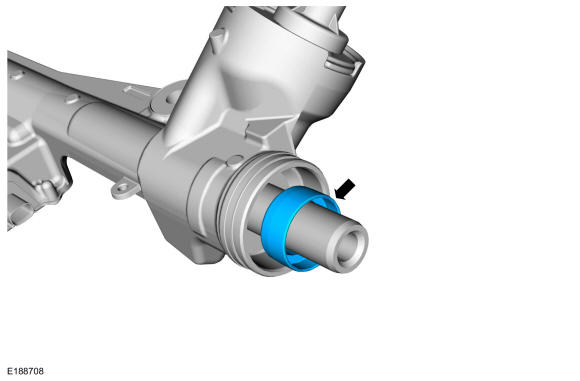

Position the new steering stop.

Courtesy of FORD MOTOR COMPANY

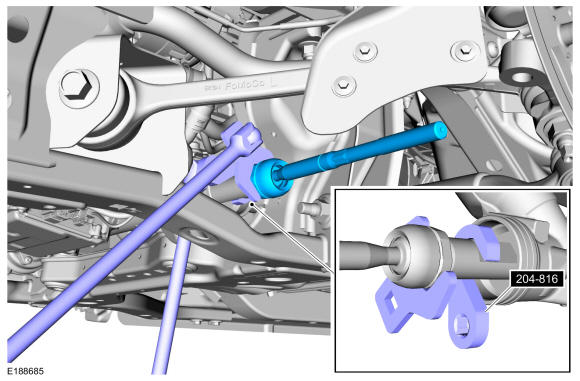

NOTE: Hold the steering gear rack while loosening the inner tie rod. Failure to hold the rack securely could result in steering gear damage.

NOTE: The steering gear rack holding tool must be reversed to install the RH tie rod or damage to the rack and/or special tool may occur.

NOTE: The holding tool can only be used on the LH side of the steering gear.

Using the special tool to hold the rack and an appropriate size crows foot wrench or open end wrench, install the inner tie rod and steering stop. Use Special Service Tool: 204-816 Rack Holding Tool.

Torque: 89 lb.ft (120 Nm)

Courtesy of FORD MOTOR COMPANY

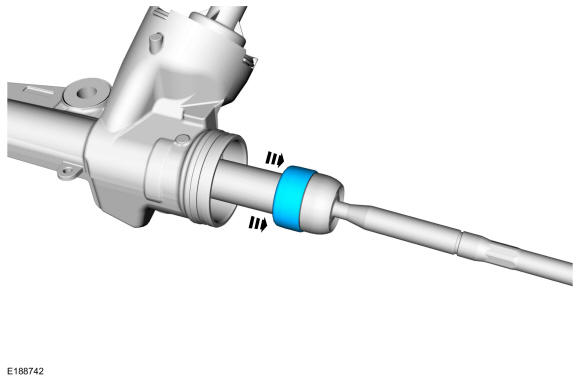

NOTE: Install the steering stop using hand force only. Striking the steering stop may cause damage to the stop.

NOTE: An audible click will be heard when the steering stop seats onto the inner tie rod. Make sure that the steering stop is fully seated and cannot be separated by hand.

Install the steering stop onto the inner tie rod using hand force only.
- GT350R and GT500 Models, LH side only.
- All other models, On both sides.
Courtesy of FORD MOTOR COMPANY

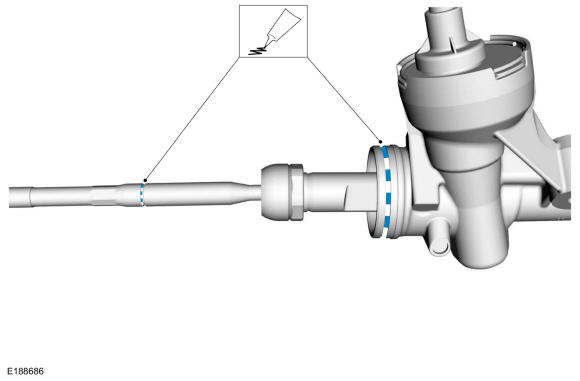

Apply the specified grease to the steering gear-to-bellows boot mating surface and bellows boot groove on the inner tie-rod.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY

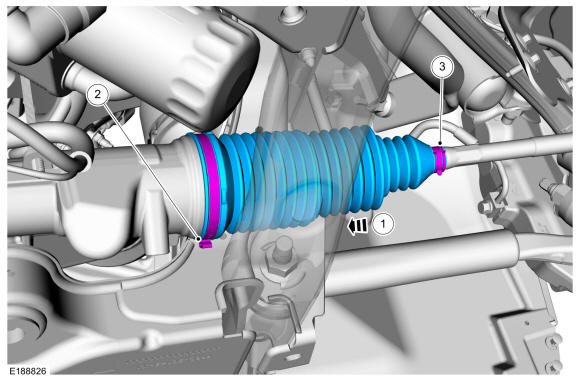

NOTE: LH side shown, RH side similar.
1. NOTE: Make sure the steering gear bellows boot is positioned correctly over the steering gear housing bead and the groove in the inner tie rod.

  Install the new steering gear bellows boot.
2. Install the new inner bellows boot clamp. Use the General Equipment: Boot Clamp Pliers
3. Install the new outer bellows boot clamp.
Courtesy of FORD MOTOR COMPANY
Thread the tie-rod end jam nut onto the inner tie rod.

Courtesy of FORD MOTOR COMPANY

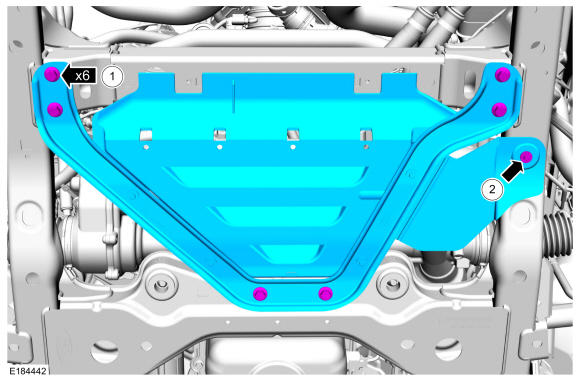

1. NOTE: If equipped.

  Position the V-brace and underbody shield and install the 6 V-brace bolts.

  Torque: 46 lb.ft (63 Nm)
2. Install the underbody shield bolt.
Courtesy of FORD MOTOR COMPANY

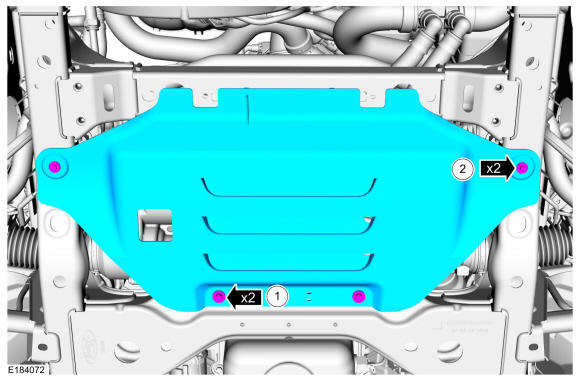

NOTE: If equipped.
1. Position the underbody shield and install the 2 rearward underbody shield bolts.
2. Install the 2 remaining underbody shield bolts.
Courtesy of FORD MOTOR COMPANY

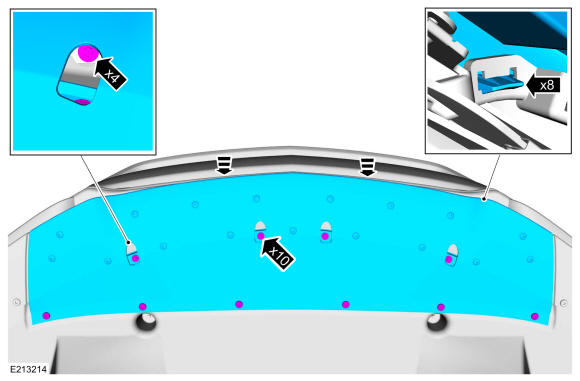

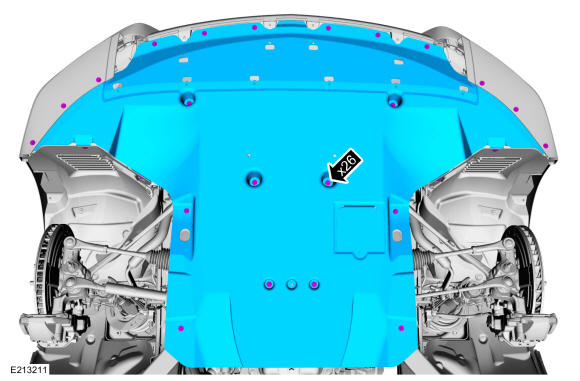

NOTE: If equipped.

Position the underbody shield and install the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Position the underbody shield and install the bolts.

Courtesy of FORD MOTOR COMPANY
Install the tie rod end. Refer to: Tie Rod End
Turn the steering wheel lock-to-lock to assure the steering stops are fully seated.
