Steering Column Upper Shaft: Installation

Install the steering column upper shaft.
1. NOTE: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

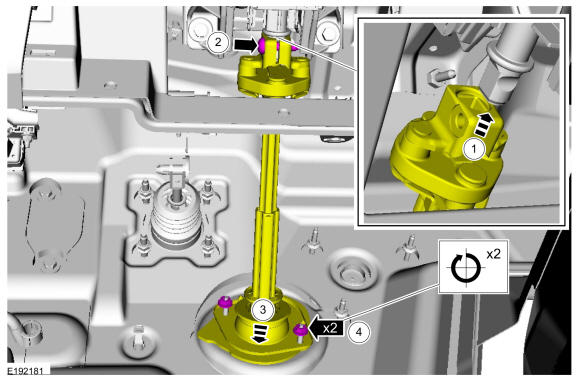

  Connect the upper shaft to the steering column.
2. Install the bolt.
  Torque: 22 lb.ft (30 Nm)
3. Seat the dash seal.
4. Hand start the nuts.
Courtesy of FORD MOTOR COMPANY

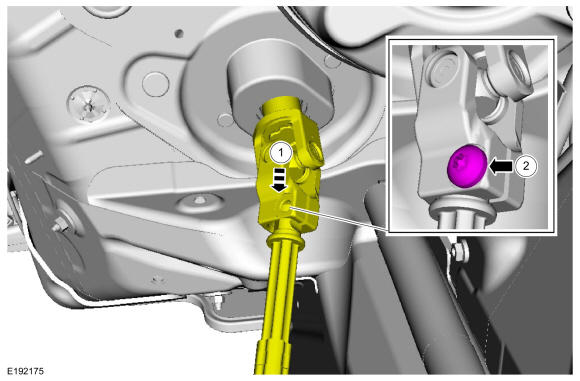

Connect the upper shaft to the lower shaft and install the bolt.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

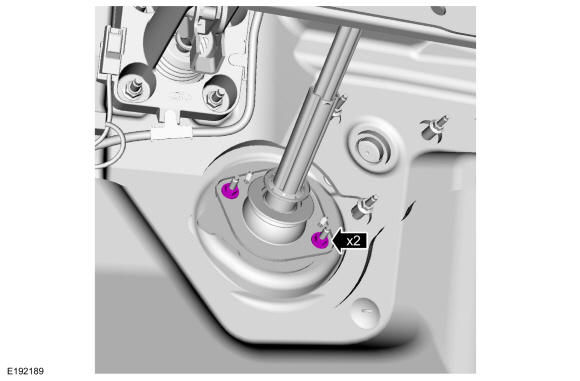

Tighten the dash seal nuts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check
