Fuel Pump Driver Module (FPDM): Installation

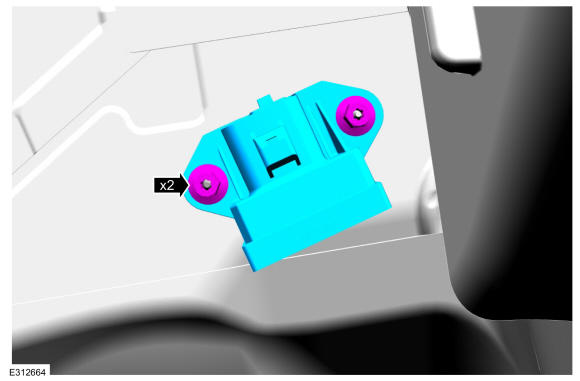

  1. Install the fuel pump driver module, then install and tighten the nuts.

    Torque: 17 lb.in (1.9 Nm)

    GFD750820Courtesy of FORD MOTOR COMPANY

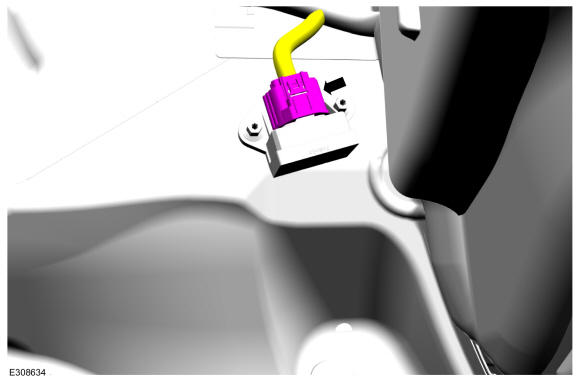

  2. Connect the fuel pump driver module electrical connector.
    GFD750819Courtesy of FORD MOTOR COMPANY

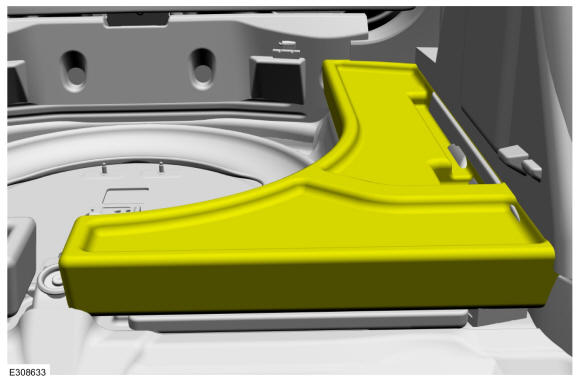

  3. Install the left load compartment floor support.
    GFD750821Courtesy of FORD MOTOR COMPANY

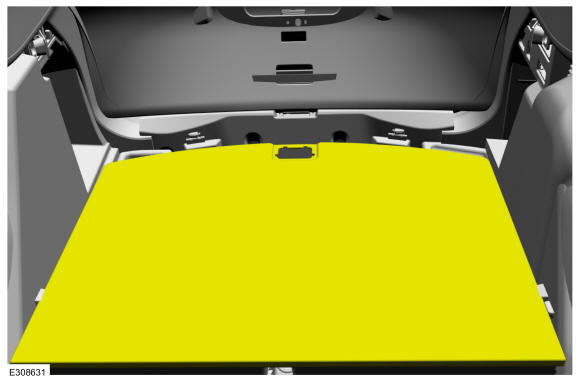

  4. Install the rear load floor, then position the second row left seat back all the way up to the rear.
GFD750822Courtesy of FORD MOTOR COMPANY
