Transfer Case Draining And Filling

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Draining

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
2. If equipped.

   Torque: 21 lb.ft (28 Nm)

   Courtesy of FORD MOTOR COMPANY

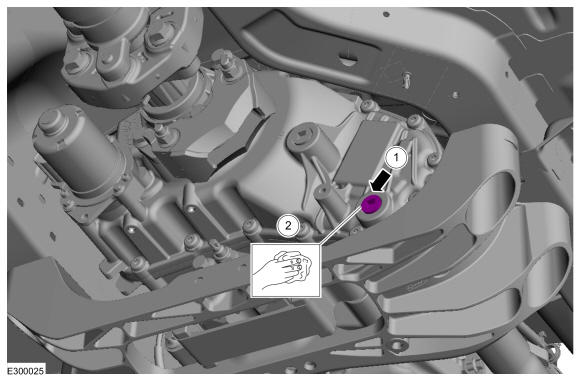

3. 1. Remove the drain plug and drain the fluid.
   2. Clean the drain plug and the area around drain plug.
   3. Install the drain plug.

      Torque: 142 lb.in (16 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

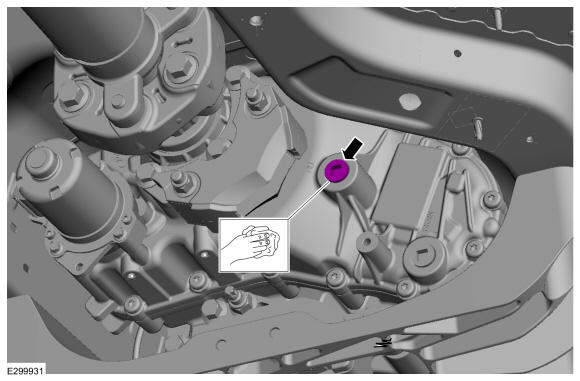

1. 1. Clean the fill plug and the area around fill plug. Remove the fill plug.
   2. Fill the transfer case fluid.
   3. Install the fill plug.

      Torque: 142 lb.in (16 Nm)
