Inverter System Controller [SOBDMC]: Installation

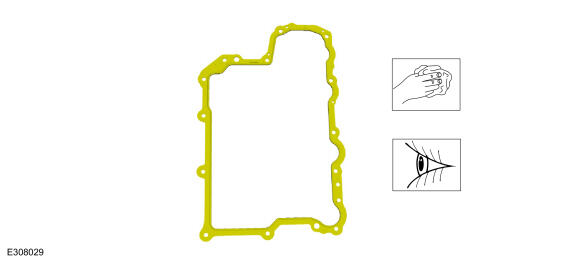

  1. NOTE: Use only a lint free cloth.

    Clean and inspect the ISC gasket, replace if necessary.

    GFD828963Courtesy of FORD MOTOR COMPANY

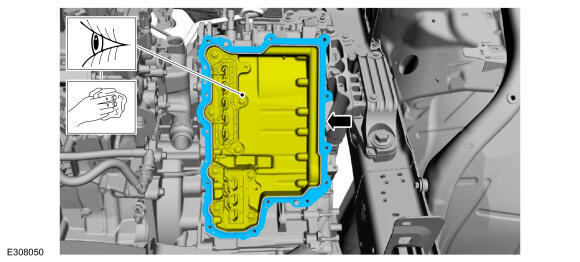

  2. NOTE: Use only a lint free cloth.

    Inspect and clean the inside of the transmission cavity of any debris or fluid. Install the ISC gasket.

    GFD828964Courtesy of FORD MOTOR COMPANY

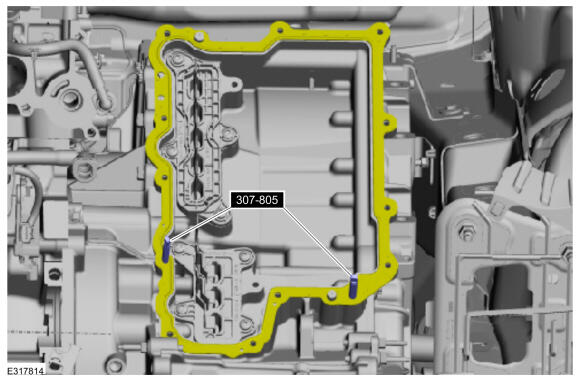

  3. Install the special tools. Use Special Service Tool: 307-805 Alignment Pins (2).
    GFD828965Courtesy of FORD MOTOR COMPANY

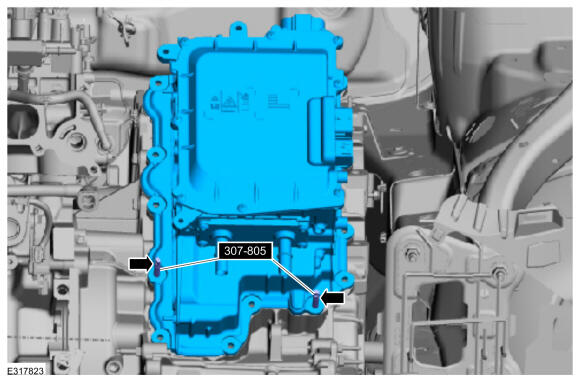

  4. Install the ISC and remove the special tools. Use Special Service Tool: 307-805 Alignment Pins (2).
    GFD828966Courtesy of FORD MOTOR COMPANY

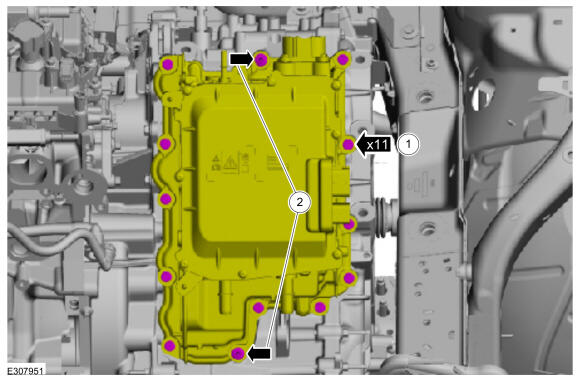

    1. Install the ISC bolts.

      Torque

      : 12 Nm

    2. Install the ISC studbolts.

      Torque

      : 12 Nm

    GFD828967Courtesy of FORD MOTOR COMPANY

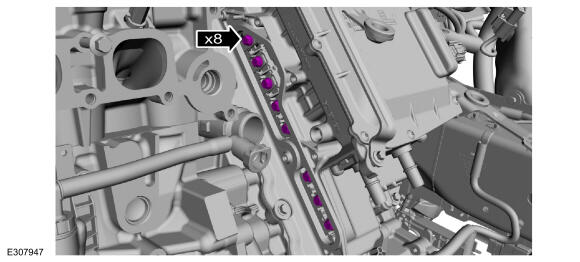

  6. Install the high-voltage terminal bolts.

    Torque

    : 12 Nm

    GFD828968Courtesy of FORD MOTOR COMPANY

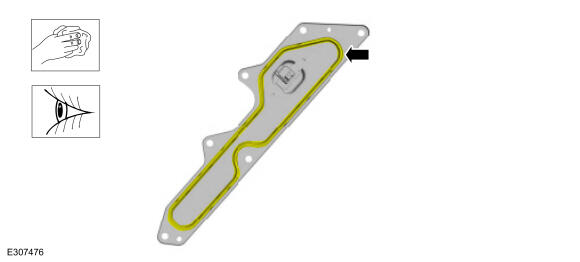

  7. NOTE: Use a lint free cloth.

    Clean and inspect the ISC side cover and gasket, replace the ISC side cover if necessary.

    GFD828969Courtesy of FORD MOTOR COMPANY

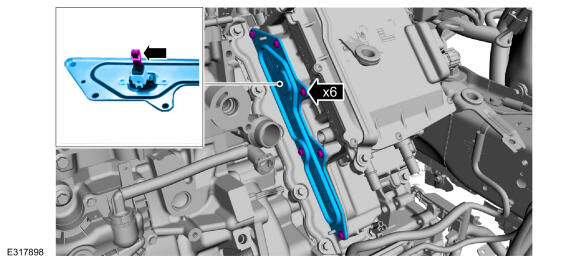

  8. Install the ISC side cover and bolts.

    Torque

    : 10.5 Nm

    GFD828960Courtesy of FORD MOTOR COMPANY

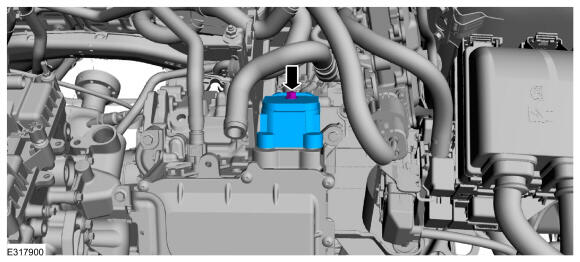

  9. Connect the high-voltage cable to the ISC and tighten the retainer.

    Torque

    : 11 Nm

    GFD828970Courtesy of FORD MOTOR COMPANY

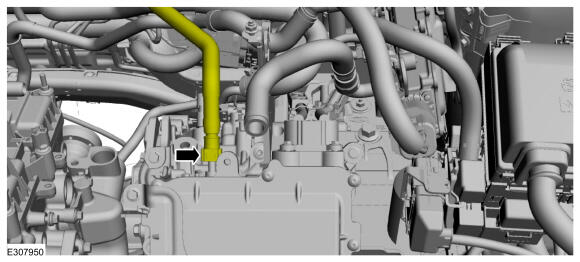

  10. NOTE: When connecting the coolant tube, push-click-pull on the coolant tube to ensure proper connection.

    Connect the coolant tube.

    GFD828958Courtesy of FORD MOTOR COMPANY

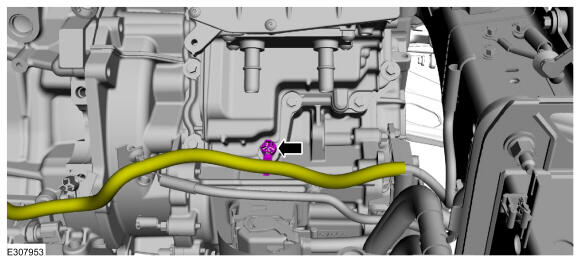

  11. Connect the wiring harness retainer.
    GFD828957Courtesy of FORD MOTOR COMPANY

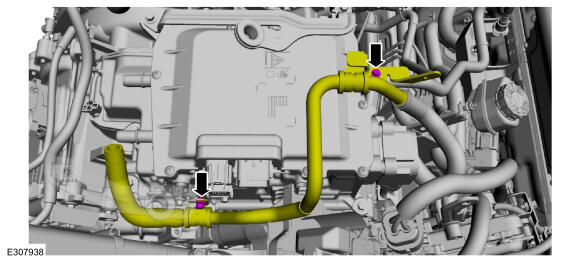

  12. NOTE: Be careful not to get residual coolant in the open ISC connectors.

    Position back the coolant tube and install the bolts.

    Torque

    : 8 Nm

    GFD828956Courtesy of FORD MOTOR COMPANY

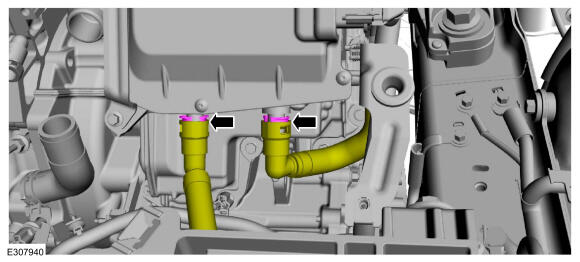

  13. NOTE: When connecting the coolant tubes, push-click-pull on the coolant tubes to ensure proper connection.

    Connect the coolant tubes.

    GFD828955Courtesy of FORD MOTOR COMPANY
  14. Install the air cleaner bracket and the bolts.

    Torque

    : 11 Nm

    GFD828954Courtesy of FORD MOTOR COMPANY

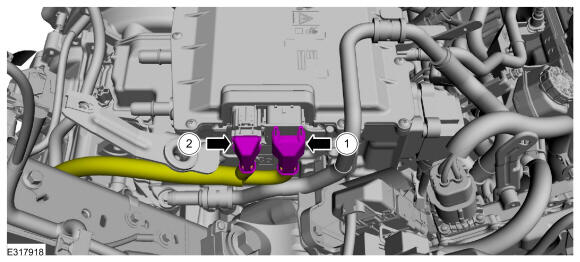

    1. Connect C199A (40 pin connector) and engage the lever lock.
    2. Connect C199B (22 pin connector).
    GFD828971Courtesy of FORD MOTOR COMPANY

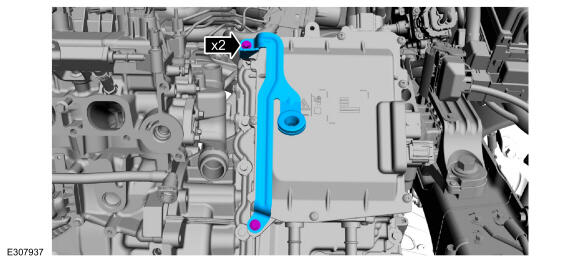

  16. Install the air cleaner bracket and the bolts.

    Torque

    : 11 Nm

    GFD828952Courtesy of FORD MOTOR COMPANY

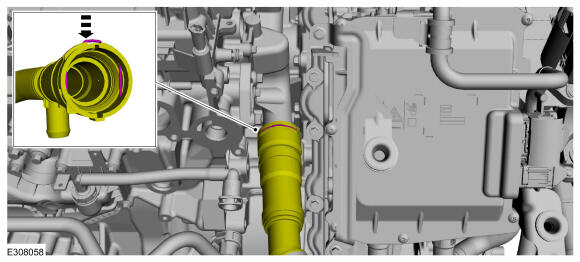

  17. Connect the radiator hose.
    GFD828972Courtesy of FORD MOTOR COMPANY

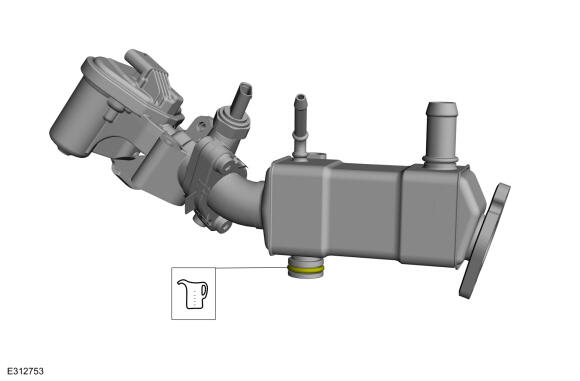

  18. Lubricate the new EGR cooler O-rings with a small amount of engine oil.

    Material

    : Engine Oil - SAE 0W-20 (WSS-M2C947-B1)

    GFD828757Courtesy of FORD MOTOR COMPANY

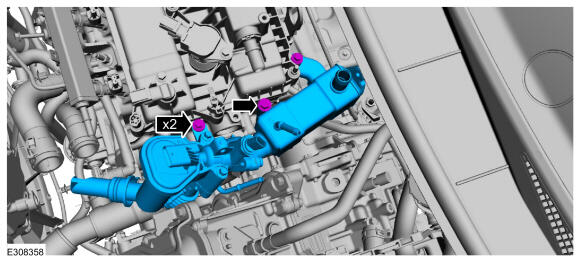

  19. Install the EGR valve assembly and hand tighten the bolts.
    GFD828973Courtesy of FORD MOTOR COMPANY

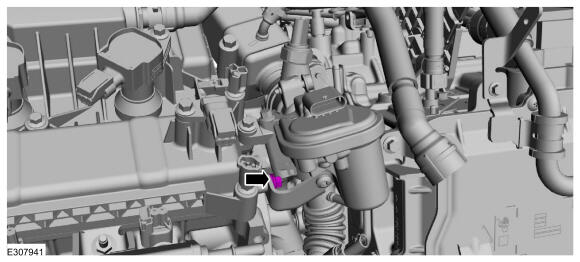

  20. Install the EGR assembly mounting bolt.

    Torque

    : 10 Nm

    GFD828949Courtesy of FORD MOTOR COMPANY

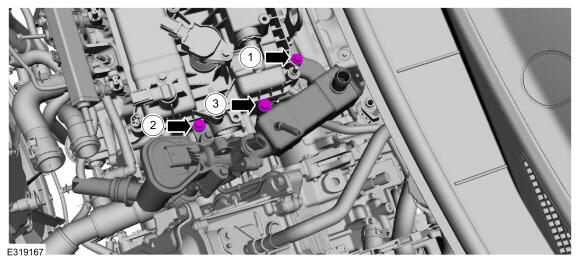

  21. Tighten the EGR assembly bolts in the sequence shown.

    Torque

    : 1: 10 Nm 2: 10 Nm 3: 25 Nm

    GFD828974Courtesy of FORD MOTOR COMPANY

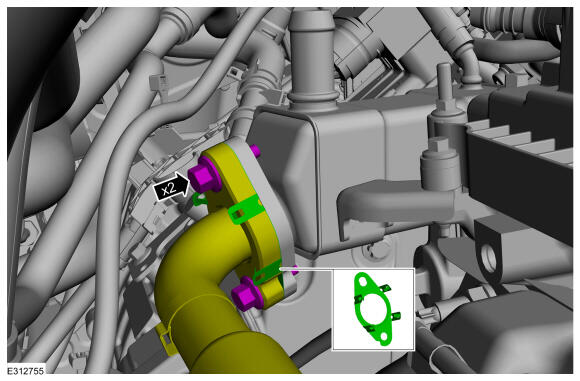

    • Install the new gasket.

    • Hand tighten them at this stage.

    GFD828763Courtesy of FORD MOTOR COMPANY

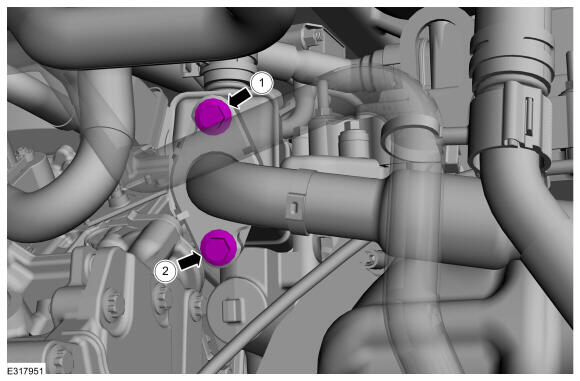

  23. Tighten the bolts in the sequence shown.

    Torque

    : 1: 10 Nm 2: 24 Nm 1: 24 Nm

    GFD827816Courtesy of FORD MOTOR COMPANY

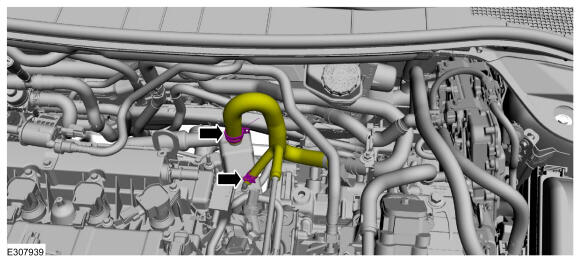

  24. Connect the engine coolant hoses.
    GFD828948Courtesy of FORD MOTOR COMPANY

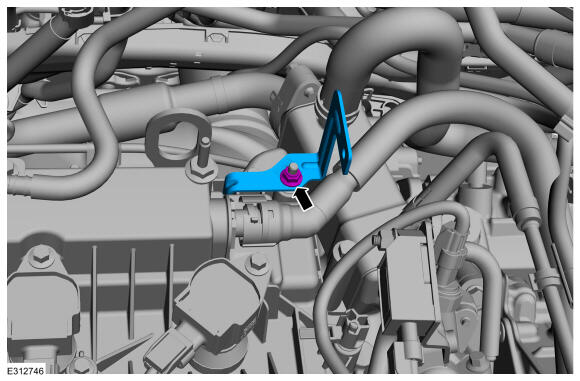

  25. Install the fuel hose bracket and the nut.

    Torque

    : 10 Nm

    GFD828748Courtesy of FORD MOTOR COMPANY

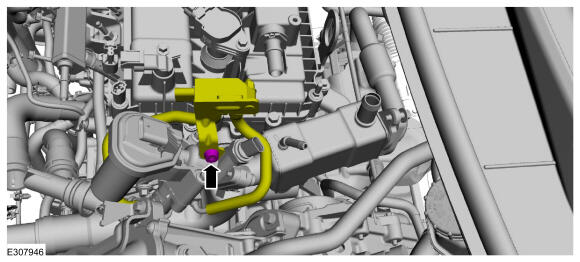

  26. Position back the transducer and install the bolt.

    Torque

    : 10 Nm

    GFD828947Courtesy of FORD MOTOR COMPANY

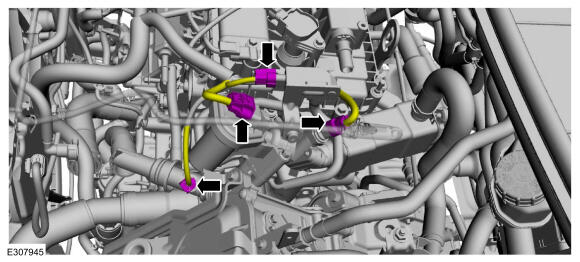

  27. Connect the electrical connectors.
    GFD828946Courtesy of FORD MOTOR COMPANY
  28. Install the intake manifold. Refer to: Intake Manifold .
  29. Install the air cleaner. Refer to: Air Cleaner .
  30. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
  31. Connect the vehicle high-voltage electrical system. Refer to: High Voltage Battery Disconnect and Connect - Hybrid Electric Vehicle (HEV) .
  32. Fill the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  33. Fill and bleed the Electric Powertrain Cooling System. Refer to: ELECTRIC POWERTRAIN COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
  34. NOTE: This step is only necessary when installing a new component.

    Upload the module information from the diagnostic tool to the module using the Programmable Modules Installation routine. Use the General Equipment: Ford Diagnostic Equipment

  35. NOTE: This step is only necessary when installing a new component.

    If the ISC was replaced, perform the Transmission Strategy Download. Refer to: Transmission Strategy Download .

  36. NOTE: This step is only necessary when installing a new component.

    If the ISC was replaced, perform the Module Initialization procedure. Refer to: Anti-Theft Key Programming - Scan Tool .
